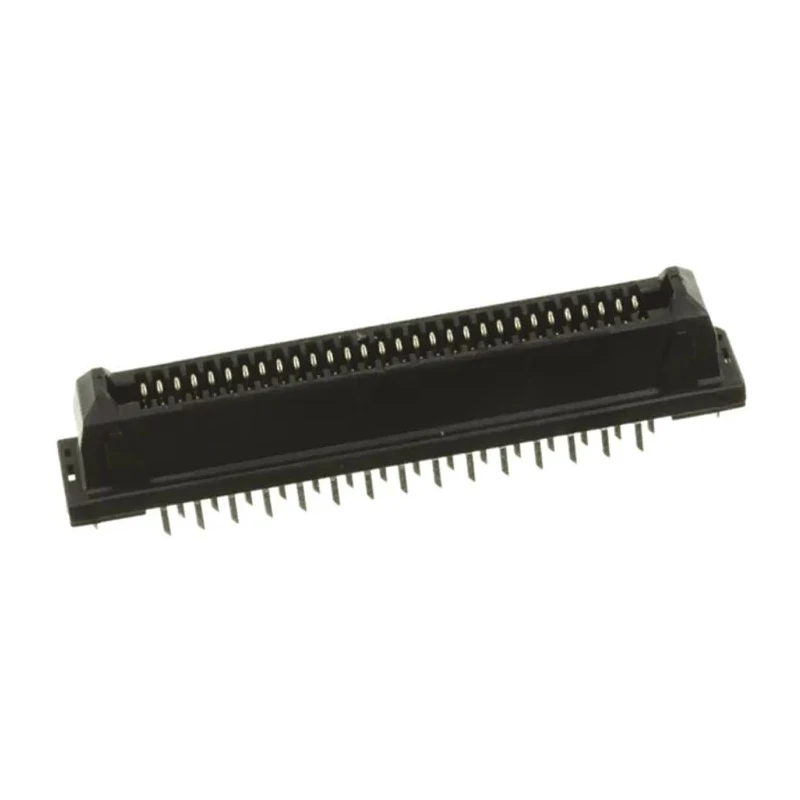

JAE TX24 Series Straight Through Hole PCB Socket 60-Contact 2 Row 1.27 mm Pitch Solder

Free Delivery in India | Lowest Global Shipping Charges

JAE TX24 Series Straight Through Hole PCB Socket 60-Contact 2 Row 1.27 mm Pitch Solder



Category PCB Socket Brand JAE Condition New

Specifications

Country of Origin	India
Voltage	500V
Brand	JAE
Orientation	Straight
Current	12A
Model	TX24
Mount Type	Through Hole
Housing Material	Fibreglass Reinforced Polybutylene Terephthalate
Contact Material	Copper
Series	TX24
Termination Type	Solder
Maximum Operating Temperature	80°C
Sub Type	Board-to-Board
Minimum Operating Temperature	-40°C
Number of Rows	2
Pitch	1.27mm
Contact Plating	Gold
Number of Contacts	60
Contact Gender	Female
Connector System	Board-to-Board

Key Features

The socket supports a current rating of 12 amperes for reliable power delivery.
It features a fibreglass reinforced polybutylene terephthalate housing for enhanced durability.
The contact gender is female, made from copper with gold plating for superior conductivity and corrosion resistance.
It operates safely at voltages up to 500 volts with a temperature range from -40°C to 80°C.
Mount type is through hole with a straight orientation making it suitable for stable PCB connections.
The design eliminates pin type contacts, providing excellent mating and unmating resistance with a distinct click action.
Polarizing keys in the housing ensure correct orientation, ideal for rack and panel connector setups.
These sockets are part of the TX24 series known for long electrical engagement length and stable connections.

Product Description

JAE TX24-60R-6ST-H1E PCB Socket is a precision-engineered straight through hole connector designed for reliable board-to-board connections in electronic assemblies. The 60-contact, 2-row configuration with a 1.27 mm pitch ensures compact, high-density integration within your PCB layout.

This socket supports a maximum current of 12A and voltage up to 500V, making it suitable for a broad range of industrial, commercial, and electronic applications requiring stable and robust power transmission.

The fibreglass reinforced polybutylene terephthalate housing provides mechanical strength and thermal stability, while the copper female contacts plated with gold guarantee excellent conductivity and resistance against oxidation, enhancing product longevity.

Designed for through hole mounting and straight orientation, the socket allows secure and accurate PCB assembly with ease. The non-pin type contacts resist twisting forces during mating and unmating, ensuring durable connections over repeated cycles. The "click action" design confirms positive insertion feedback.

Polarizing keys integrated into the housing prevent misalignment and reverse insertion, making these sockets ideal for rack and panel configurations in demanding electronic hardware and industrial equipment.

The socket supports a current rating of 12 amperes for reliable power delivery. Fibreglass reinforced polybutylene terephthalate housing enhances durability and thermal resistance. Female copper contacts with gold plating offer superior conductivity and corrosion resistance.

Operating temperature ranges from -40°C to 80°C for use in varied environments. Rated voltage is 500 volts providing safe operation under load. Through hole mount type with straight orientation supports stable mechanical installation.

Long electrical engagement length improves connection stability and reliability. Polarizing keys assure correct connector orientation, suited for rack and panel applications.

This product belongs to the TX24 series of JAE PCB connectors, widely used in electronics manufacturing, industrial control systems, telecommunications, and automation. Its robust design and high-quality materials provide dependable performance in critical applications.
