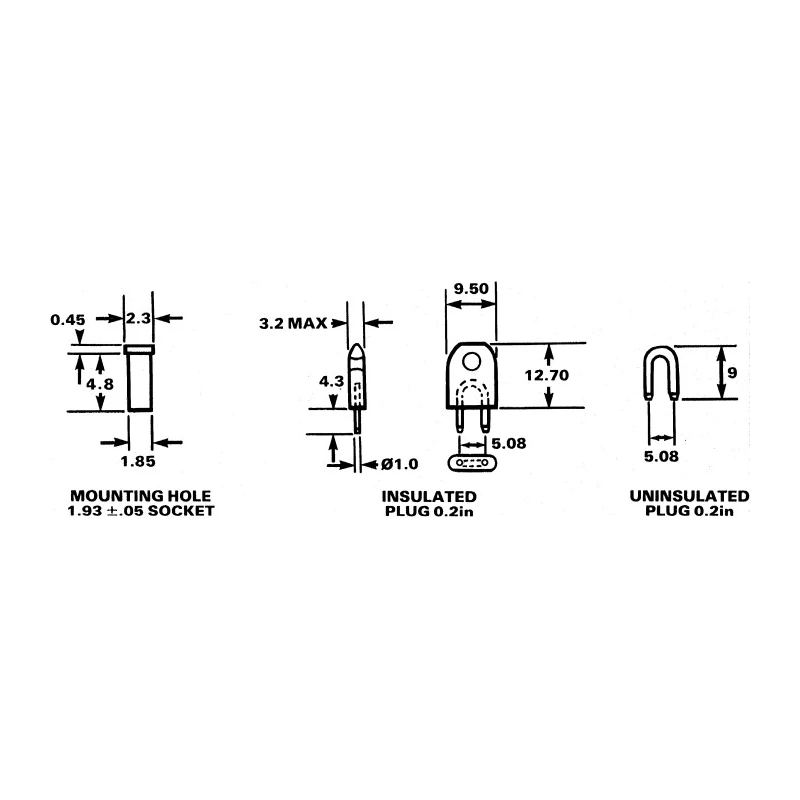

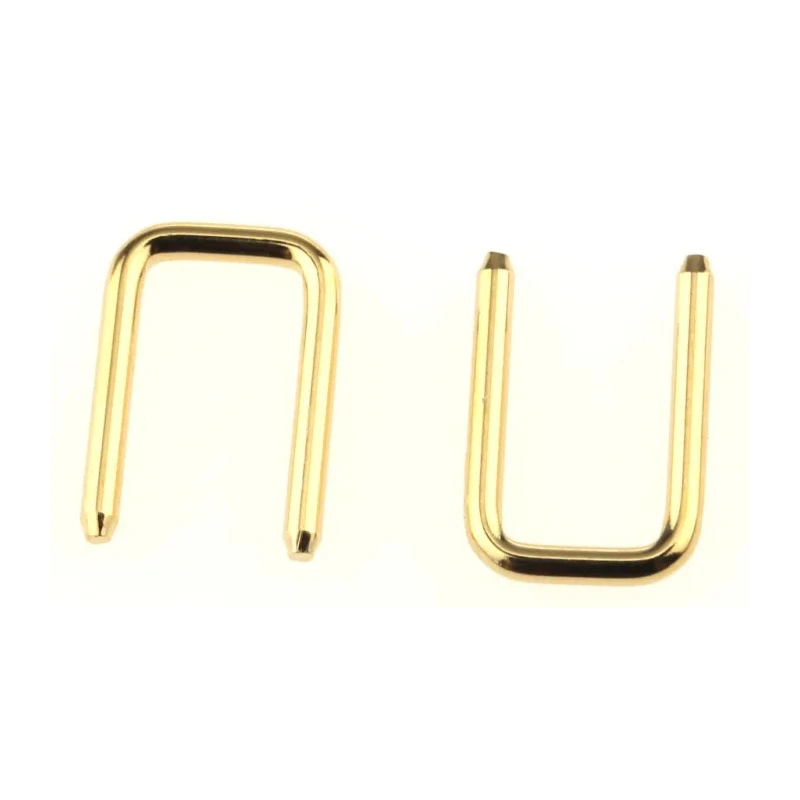

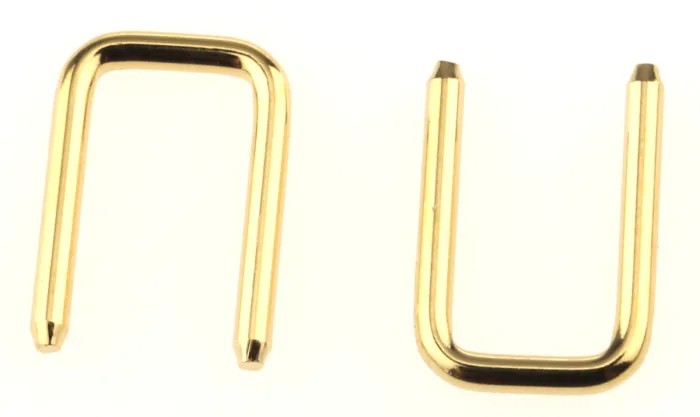

HARWIN Shorting Link Straight Male Uninsulated 2 Way 1 Row 5.08 mm Pitch D3080-05
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | HARWIN |
| Orientation | Straight |
| Current | 10A |
| Length | 6.08mm |
| Model | D3080-05 |
| Depth | 1mm |
| Width | 6.35mm |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Brass |
| Series | D308 |
| Sub Type | Uninsulated |
| Number of Rows | 1 |
| Pitch | 5.08mm |
| Contact Plating | Gold |
| Number of Contacts | 2 |
| Contact Gender | Male |
| Connector Gender | Male |
| HARWIN, D308 Jumper Straight Male Uninsulated 2 Way 1 Row 5.08 mm PitchBrand | HARWIN |
Key Features
- This shorting link supports a current rating of 10 A for reliable electrical connections.
- Constructed with a polybutylene terephthalate (PBT) housing, providing durable insulation.
- The male brass contacts are gold plated to ensure excellent conductivity and corrosion resistance.
- Compact dimensions of length 6.08 mm, width 6.35 mm, and depth 1 mm enable tight PCB mounting.
- The connector features a single row configuration with two contacts for simple circuit bridging.
- Its straight orientation allows easy soldering directly onto PCBs for permanent linkage.
- Manufactured in Taiwan, Province of China, this new component is designed for electronic prototyping and hardware programming.
Product Description
HARWIN D3080-05 is a highly reliable shorting link designed for electronic and PCB connectivity applications. This straight male shorting link is uninsulated and features a 2 way, single row configuration with a 5.08 mm pitch, making it suitable for bridging connections on printed circuit boards.
The housing is made from polybutylene terephthalate (PBT), a material renowned for its mechanical strength and electrical insulation properties. Brass male contacts plated with gold ensure superior conductivity and resistance to oxidation, critical for maintaining consistent signal integrity under operational conditions.
Measuring 6.08 mm in length, 6.35 mm in width, and 1 mm in depth, this compact connector facilitates neat and efficient PCB design. With a current rating of 10 A, it supports sufficient electrical load for typical electronic module configurations.
The straight orientation and uninsulated design allow this shorting link to be soldered directly onto the PCB for permanent connections. This makes it ideal for circuit bridging in hardware development, repair, and prototyping environments.
Manufactured in Taiwan, Province of China, this new HARWIN component meets the demands of electronic manufacturing, laboratory setups, industrial automation, and HVAC control systems.
This shorting link offers dependable electrical bridging with 10 A current capacity. Durable PBT housing ensures electrical insulation and structural strength. Gold-plated brass contacts provide excellent conductivity and corrosion resistance.
Compact design with precise dimensions for easy integration into PCB layouts. Straight male orientation suitable for direct PCB soldering applications. Manufactured to high standards for industrial and electronic development use.
Supports applications in electronics, laboratory equipment, and control panel systems. Explore more Connectors and electronic components for your industrial and laboratory needs on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 10 A, making it suitable for reliable electrical connections in various applications.
The HARWIN D3080-05 measures 6.08 mm in length, 6.35 mm in width, and 1 mm in depth, allowing for compact PCB mounting.
The housing is constructed from polybutylene terephthalate (PBT), known for its mechanical strength and electrical insulation properties.
This unit features two contacts in a single row configuration, designed for simple circuit bridging on PCBs.
The brass contacts are gold plated, which ensures excellent conductivity and corrosion resistance.
The pitch of this connector is 5.08 mm, suitable for bridging connections on printed circuit boards.
It has a straight orientation, allowing for easy soldering directly onto PCBs for permanent linkage.
This product is manufactured in Taiwan, Province of China.
It is designed for electronic prototyping, hardware programming, and applications in laboratory equipment and control panel systems.
No, this model is uninsulated, which allows for direct soldering onto PCBs.
This connector has a male gender, which is typical for its application in electrical connections.
The gold plating on the brass contacts provides superior conductivity and resistance to oxidation, critical for maintaining consistent signal integrity.
