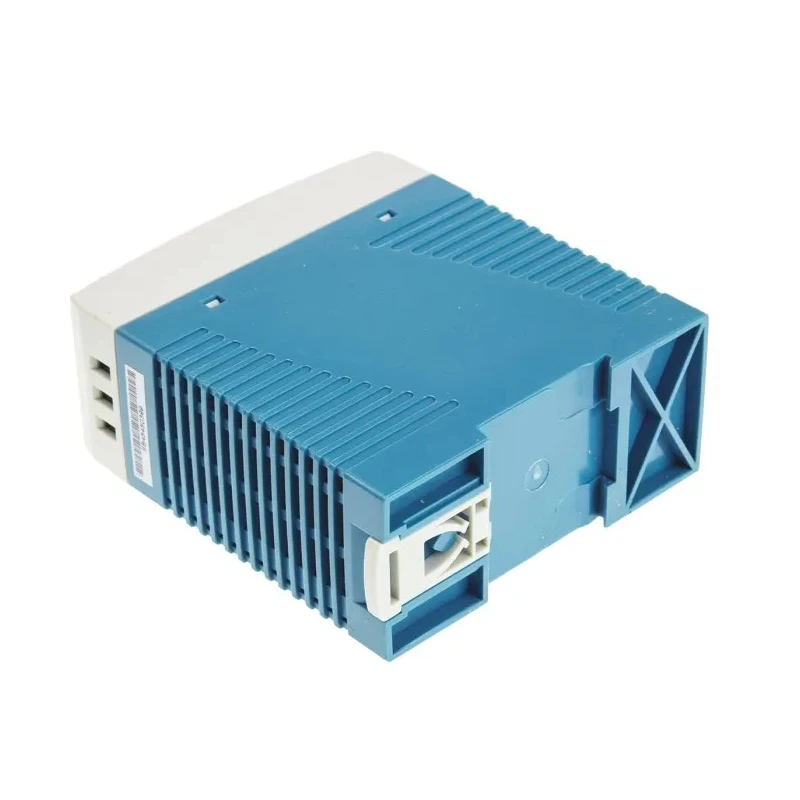

MEAN WELL MDR Switched Mode DIN Rail Power Supply 264V AC Input, 6V DC 6A Output, 30W MDR-40-5
Specifications
| Country of Origin | China |
|---|---|
| Brand | MEAN WELL |
| Power | 30W |
| Height | 100mm |
| Model | MDR-40-5 |
| Depth | 90mm |
| Width | 40mm |
| Series | MDR |
| Output Current | 6A |
| Maximum Operating Temperature | 70°C |
| Sub Type | Switched Mode |
| Minimum Operating Temperature | -20°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 264V ac |
| Electrical Phase | 1 |
| Hazardous Area Certification | C, Class I Division 2, D, Group A, B |
| Standards/Approvals | RoHS Compliant, TUV EN 60950-1, UL 508 |
| Maximum Output Voltage | 6V dc |
| Minimum Input Voltage | 85V ac |
Key Features
- Provides universal AC input voltage range from 85V to 264V AC.
- Single DC output delivering 6 volts at 6 amps with maximum 30 watts power.
- Equipped with short circuit, overload, and over voltage protections for safe operation.
- Includes remote signal DC-OK, LED power indicator, and cooling via free air convection.
- Designed for DIN rail TS-35/7.5 or 15 installation in industrial environments.
- Operates reliably within a temperature range from -20°C to 70°C ambient.
- Compact dimensions (100mm height, 90mm depth, 40mm width) for space-saving mounting.
- Complies with RoHS, TUV EN 60950-1 and UL 508 safety standards and hazardous area certifications.
Product Description
MEAN WELL MDR-40-5 is a switched mode DIN Rail Power Supply designed for industrial and electronic equipment requiring a stable 6V DC output. It accepts a wide input AC voltage from 85V up to 264V, making it compatible with diverse power sources. Rated for a maximum power output of 30 watts and 6 amps current, this power supply ensures reliable performance for automation, control panels, and instrumentation systems.
The unit features integral protections against short circuits, overloads, and over voltage conditions to safeguard connected devices. Cooling is achieved via free air convection, eliminating the need for fans and reducing maintenance. Installation is simplified by its compatibility with standard TS-35/7.5 or 15 DIN rails. The device includes a DC-OK relay contact for remote monitoring and an LED power indicator for visual status.
Operating across a broad ambient temperature range of -20°C to 70°C, this power supply is suitable for harsh industrial environments. Its compact size (100mm height, 40mm width, 90mm depth) allows for efficient use of panel space. Certified to RoHS, TUV EN 60950-1, and UL 508 standards, and rated for hazardous area Class I Division 2 settings, it meets stringent safety and reliability requirements.
Universal AC input voltage from 85 to 264V AC. Single output: 6V DC at 6A, 30W power rating. Short circuit, overload, and over voltage protections. Cooling by free air convection with no load power consumption. Installation on DIN Rail TS-35/7.5 or 15.
DC-OK relay contact and LED power-on indicator included. Operating temperature range: -20°C to 70°C. Compact dimensions suitable for industrial control panels. Certified to RoHS, TUV EN 60950-1, UL 508 safety standards. Suitable for hazardous areas: Class I Division 2, Group A and B.
This MEAN WELL MDR series power supply is ideal for use in industrial automation, manufacturing machinery, laboratory equipment, and other professional applications requiring reliable low-voltage DC power.
Discover more MEAN WELL power supply solutions in the DIN Rail Power Supplies category at EnvMart for trusted quality and performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It accepts a universal AC input voltage range from 85V to 264V AC.
The maximum output power is 30 watts, delivering 6 volts at 6 amps.
It has compact dimensions of 100mm in height, 90mm in depth, and 40mm in width.
It operates reliably within an ambient temperature range of -20°C to 70°C.
It features short circuit, overload, and over voltage protections for safe operation.
Cooling is achieved via free air convection, eliminating the need for fans.
It is designed for installation on standard DIN rail TS-35/7.5 or 15.
It complies with RoHS, TUV EN 60950-1, and UL 508 safety standards.
The output current is rated at 6 amps.
Yes, it is rated for hazardous area Class I Division 2 settings, Group A and B.
The model number is MDR-40-5.
It has a single output.
