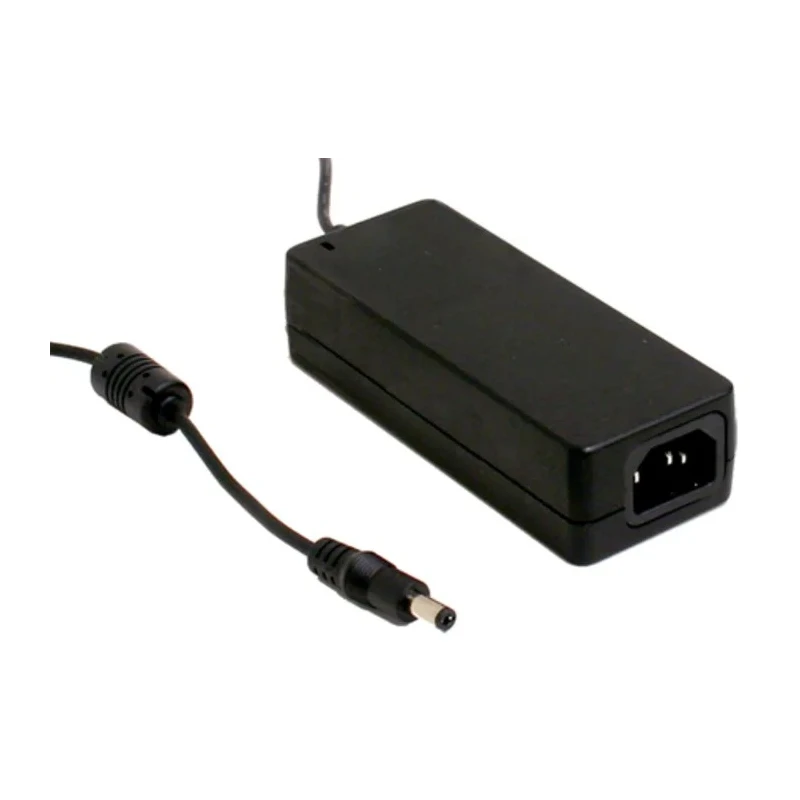

MEAN WELL Medical Grade AC/DC Adapter Type C 90-264V AC Input 20V DC Output 8A GSM160A20-R7B
Specifications
| Country of Origin | India |
|---|---|
| Brand | MEAN WELL |
| Model | GSM160A20-R7B |
| Cable Length | 1200mm |
| Overall Length | 175mm |
| Series | GSM160A |
| Overall Width | 67mm |
| Maximum Operating Temperature | 70°C |
| Plug Type | Type C |
| Maximum Input Voltage | 264V ac |
| Maximum Output Current | 8A |
| Standards/Approvals | CE, UL 60950-1, IEC 60950-1 |
| Minimum Input Voltage | 90V ac |
| Overall Depth | 35mm |
| Minimum Output Voltage | 20V dc |
| Input Connector Type | IEC 320-C14 |
| Better World Verification | UL Energy Verified |
Key Features
- Equipped with Type C plug and IEC 320-C14 input connector for compatibility.
- Supports wide input voltage range from 90V AC to 264V AC for versatile operation.
- Maximum operating temperature of 70°C ensures reliability under demanding conditions.
- Compliance with CE, UL 60950-1, and IEC 60950-1 medical safety standards.
- Designed as a medical-grade power supply with 2*MOPP isolation and ultra low leakage current.
- Energy efficient design achieving up to 94% efficiency and below 0.15 W no-load power consumption.
- Overall dimensions are 175mm length, 67mm width, and 35mm depth for desktop use.
- Includes a 1200mm cable length providing flexibility in installation.
Product Description
MEAN WELL GSM160A20-R7B is a medical grade AC/DC adapter offering a reliable desktop power supply solution suitable for medical devices and industrial applications.
This adapter features a universal wide input voltage range from 90V AC to 264V AC and provides a fixed 20V DC output at 8A maximum current, ensuring compatibility with diverse power requirements.
The device is equipped with a Type C plug and IEC 320-C14 input connector, simplifying connectivity and installation in professional environments.
Designed according to international medical safety standards including CE, UL 60950-1, and IEC 60950-1, it provides 2*MOPP isolation for ultra low leakage current, making it ideal for sensitive medical equipment.
The GSM160A20-R7B module achieves high energy efficiency up to 94%, significantly reducing power consumption during operation and standby, and complies with Level V energy efficiency regulations, making it a sustainable choice.
Physical dimensions of 175mm length, 67mm width, and 35mm depth with a 1200mm cable length suit desktop environments in industrial, laboratory, and healthcare sectors. The adapter also features a maximum operating temperature of 70°C, allowing safe performance under demanding thermal conditions.
Its Class I power supply design includes an earth pin connection, enhancing safety for end users. Equipped with Type C plug and IEC 320-C14 input connector. Wide input voltage range from 90V to 264V AC. High energy efficiency up to 94% with low no-load power consumption.
Medical standard compliant with 2*MOPP isolation, low leakage current. Compact dimensions and extended cable length for flexible desktop usage. This MEAN WELL AC/DC adapter is suitable for industrial, medical, laboratory, and commercial power supply applications where reliable 20V DC output at 8A current is required.
Explore more medical-grade power supplies and AC/DC Adapters in the Electronics & Electricals category on EnvMart for robust and certified energy solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This unit provides a maximum output current of 8A, ensuring it can meet the power requirements of compatible devices.
It is equipped with a Type C plug and an IEC 320-C14 input connector, which simplifies connectivity and installation.
The overall dimensions are 175mm in length, 67mm in width, and 35mm in depth, making it suitable for desktop use.
The maximum operating temperature for this adapter is 70°C, allowing it to perform reliably under demanding conditions.
It complies with CE, UL 60950-1, and IEC 60950-1 medical safety standards, ensuring it is suitable for sensitive applications.
The adapter includes a cable length of 1200mm, providing flexibility in installation.
This AC/DC adapter achieves energy efficiency of up to 94%, significantly reducing power consumption during operation and standby.
This model is suitable for industrial, medical, laboratory, and commercial power supply applications requiring a reliable 20V DC output.
The minimum output voltage of this unit is 20V DC, ensuring it meets the necessary power specifications for compatible devices.
It provides 2*MOPP isolation, which is essential for medical-grade applications to ensure safety and low leakage current.
This model is manufactured in India, reflecting its origin in compliance with international standards.
