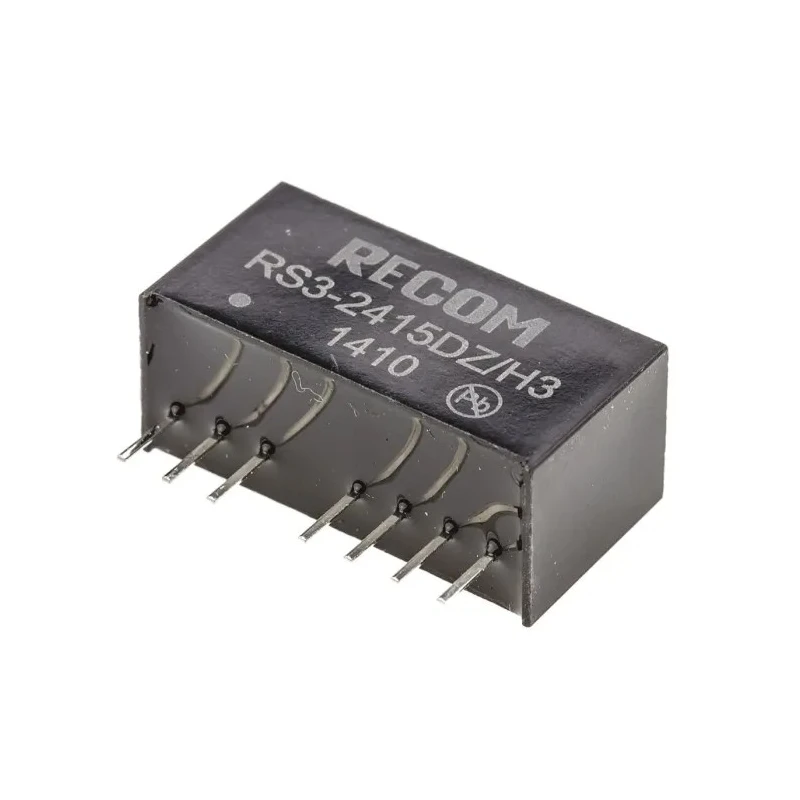

Recom RS3 DC/DC Converter 15V DC 100mA Output, 27V DC Input, 3W Power, Through Hole Mount RS3-2415DZ/H3

Recom RS3-2415DZ/H3 is a DC/DC converter designed to provide a stable regulated output voltage of ±15V DC at 100 mA with a maximum output power of 3W. This module accepts a wide input voltage range from 9V to 27V DC, accommodating varying power source conditions such as battery supplies, making it ideal for portable and automotive applications.

The SIP-8 through-hole package ensures easy mounting and compact design suitable for dense PCB layouts. The RS3 series converter boasts an efficiency of approximately 80%, effectively limiting heat generation and often eliminating the need for additional thermal management components.

Isolation at 3kV DC safeguards sensitive components and users by absorbing voltage surges and spikes, fulfilling important electrical safety requirements for industrial and medical equipment.

Operating reliably in temperatures from -40°C up to 71°C, this converter is tailored for use in challenging environments including industrial pump controls, motor drives, and automotive manufacturing systems.

Additional features include fast remote on/off control for energy management and continuous short circuit protection enhancing operational safety. The recom RS3-2415DZ/H3 DC/DC converter is built with high reliability indicated by a mean time between failures (MTBF) of over three million hours.

Provides a regulated ±15V DC output suitable for battery-powered devices. Supports input voltage range of 9V to 27V DC with 3:1 input ratio. Features 80% efficiency minimizing heat dissipation without need for a heatsink.

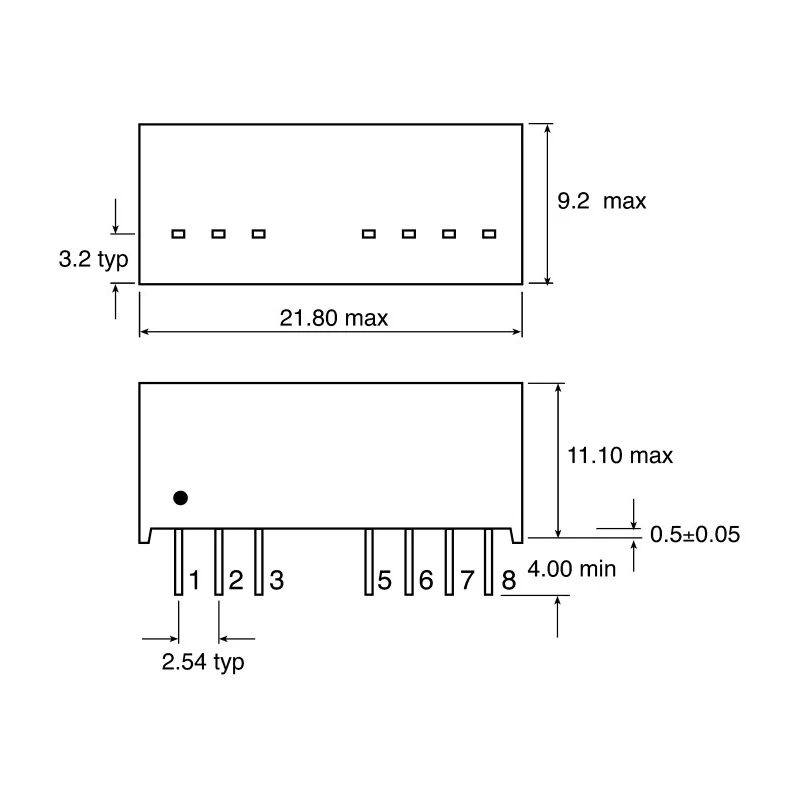

Compact SIP-8 package with 8 pins for easy PCB integration. High isolation voltage of 3kV DC protects equipment from voltage surges. Operating temperature range from -40°C to +71°C for harsh environment suitability. Integrated continuous short-circuit protection enhances safety and device longevity.

Remote on-off functionality allows external control of device operation. MTBF of approximately 3,303,000 hours indicating strong reliability.

This converter is ideal for industrial, automotive, manufacturing, and medical electronics applications requiring robust, isolated DC power supplies. Explore more DC/DC Converters at EnvMart’s comprehensive electronics components catalog for all your power conversion needs.
