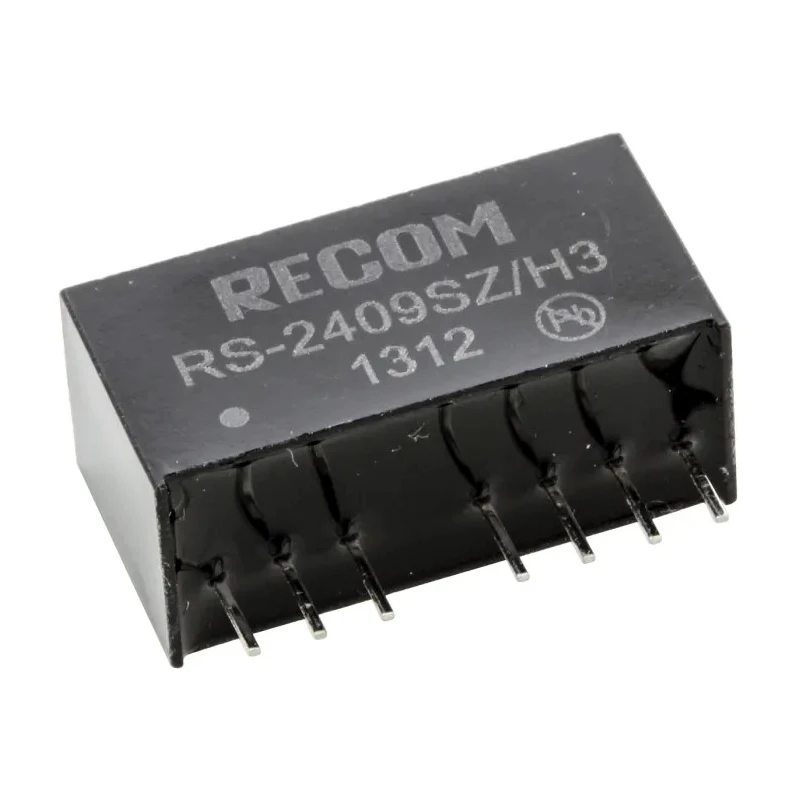

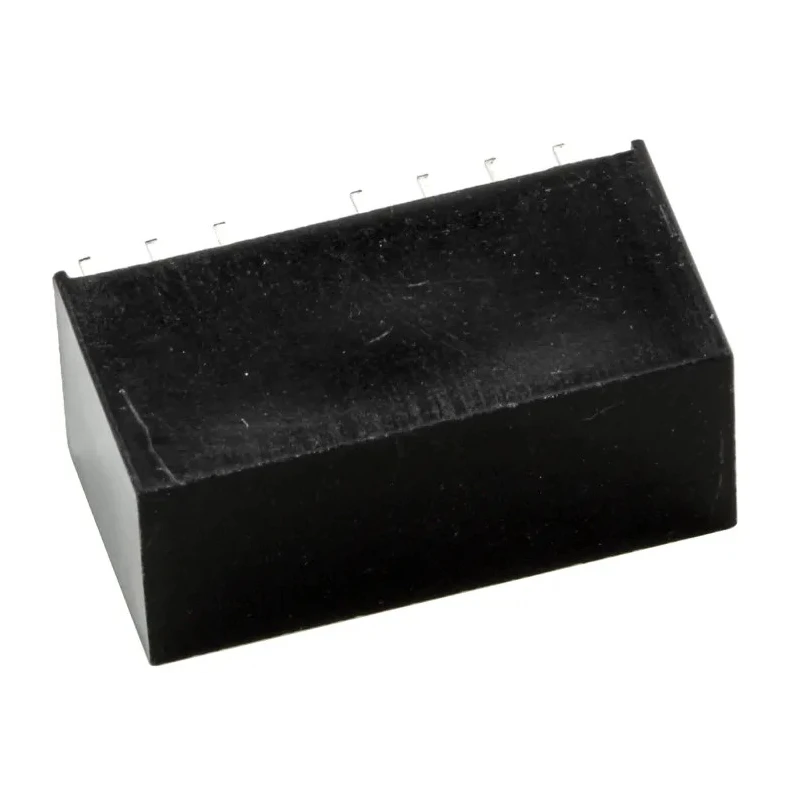

Recom DC/DC Converter 9V DC Output 222 mA 36V DC Input 2 W Through Hole SIP Package RS-2409SZ/H3
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters Recom RS DC/DC Converter, 9V dc/ 222 mA, 36V dc In |
| Brand | Recom |
| Efficiency | 80% |
| Length | 21.8mm |
| Model | RS-2409SZ/H3 |
| Depth | 11.1mm |
| Width | 9.2mm |
| Mount Type | Through Hole |
| Series | RS |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 1398000h |
| Number of outputs | 1 |
| Maximum Output Power | 2W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 9V dc |
| Number of Pins | 8 |
| Output Voltage 1 | 9V dc |
| Output Current 1 | 222mA |
| Isolation Voltage | 3kV dc |
| Input Ratio | 4:1 |
| Input Ratio 4 | 1 |
Key Features
- Supports wide input voltage range from 9V to 36V DC for flexible power supply compatibility.
- Features isolated input and output circuits with 3kV DC isolation voltage for safe operation.
- High efficiency of 80% minimizes power loss and heatsinking requirements.
- Operates reliably in harsh conditions from -40°C to +85°C ambient temperature.
- Continuous short-circuit protection enhances device and load safety.
- Remote on/off control enables convenient power management.

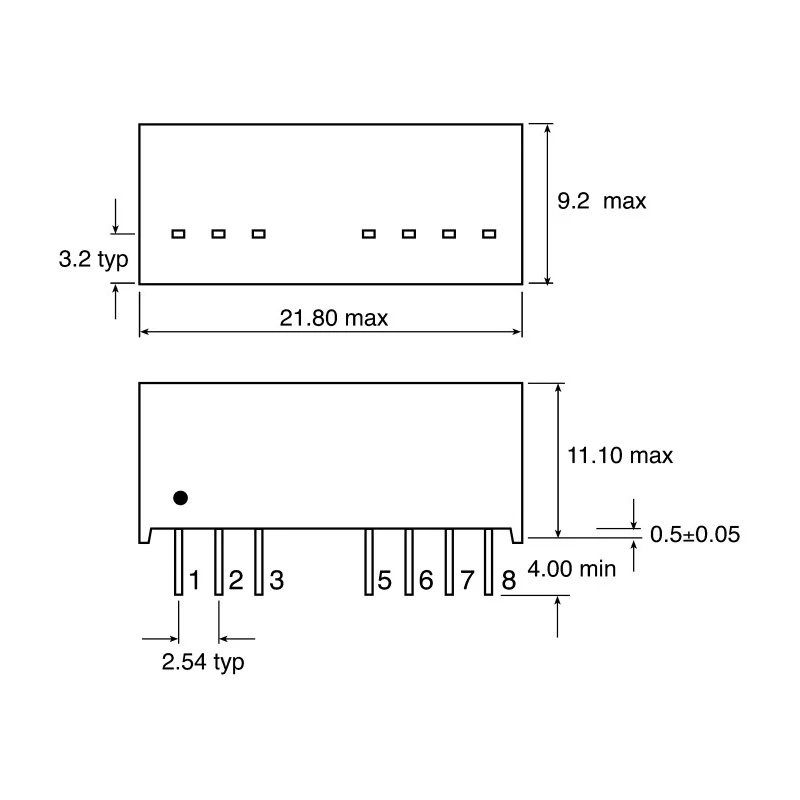

- Compact SIP package with 8 pins, measuring 21.8mm length by 9.2mm width by 11.1mm depth.
- Extremely long MTBF of 1,398,000 hours ensures dependable performance in industrial applications.
Product Description
Recom model RS-2409SZ/H3 is a rugged DC/DC Converter designed for industrial and commercial power supply applications, delivering a regulated 9V DC output at 222 mA from input voltages ranging between 9V and 36V DC. It provides up to 2 watts of output power within a compact SIP-type through-hole package, measuring 21.8mm × 9.2mm × 11.1mm, suitable for integration into various electronic assemblies.
This DC/DC Converter features galvanic isolation with an isolation voltage of 3kV DC, isolating the primary and secondary circuits to protect sensitive devices downstream from unwanted electrical surges or noise. The converter achieves an efficiency rating of 80%, reducing power wastage and thermal buildup for enhanced reliability.
Designed to perform in demanding environments, the RS-2409SZ/H3 supports extended operating temperatures from -40°C to +85°C, making it ideal for industrial process controls, food and beverage manufacturing equipment, pharmaceutical machinery, and medical instruments. It includes continuous short-circuit protection to prevent damage due to current overloads and features a remote on/off function for user-friendly operation.
With an extremely high Mean Time Between Failures (MTBF) of approximately 1,398,000 hours at 25°C, this converter ensures long-term durability and minimal downtime, supporting critical industrial operations.
Wide input voltage range from 9V to 36V DC supports various low-voltage power sources. Galvanic isolation with 3kV DC isolation voltage enhances electrical safety. Compact 8-pin SIP through-hole package for easy PCB mounting.
Continuous short-circuit protection enhances device and load protection. Remote on/off control for flexible power management. Efficient 80% conversion rating reduces heat and energy loss. Robust operating temperature range from -40°C to +85°C.
High reliability with MTBF of 1,398,000 hours supports industrial uptime.
This product originates from Taiwan, Province Of China. It is supplied in New condition, specifically suited for applications requiring reliable step-down DC/DC voltage conversion in harsh industrial and commercial environments.
Explore the wide range of DC/DC Converters on EnvMart for more power management solutions from trusted brands including Recom.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is from 9V to 36V DC.
It provides a regulated output voltage of 9V DC with a maximum output current of 222 mA.
The maximum output power of this unit is 2 watts.
The SIP package measures 21.8mm in length, 9.2mm in width, and 11.1mm in depth.
This model has an efficiency rating of 80%, which helps minimize power loss.
The isolation voltage is 3kV DC, providing protection for sensitive devices.
It operates reliably in ambient temperatures ranging from -40°C to +85°C.
Yes, it includes continuous short-circuit protection to enhance device and load safety.
This model uses a through-hole mounting type, suitable for PCB integration.
This unit features 8 pins in its SIP package.
The MTBF for this converter is approximately 1,398,000 hours at 25°C.
It is suitable for industrial process controls, food and beverage manufacturing equipment, pharmaceutical machinery, and medical instruments.
