| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters Recom RS3 DC/DC Converter, 15V dc/, 36V dc Input |
| Brand | Recom |
| Efficiency | 83% |
| Length | 21.8mm |
| Model | RS3-2415D |
| Depth | 11.1mm |
| Gross Weight | 4.7g |
| Width | 9.2mm |
| Mount Type | Through Hole |
| Series | RS3 |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 745000h |
| Number of outputs | 2 |
| Ripple and Noise | 50mV Pk-Pk |
| Maximum Output Power | 3W |
| Maximum Input Voltage | 36V dc |
| Standards/Approvals | RoHS, UR |
| Minimum Input Voltage | 18V |
| Number of Pins | 8 |
| Output Voltage 1 | 15V dc |
| Output Voltage Adjustment Range | 18/36 V |
| Isolation Voltage | 1kV dc |
| Output Current 2 | 100mA |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |

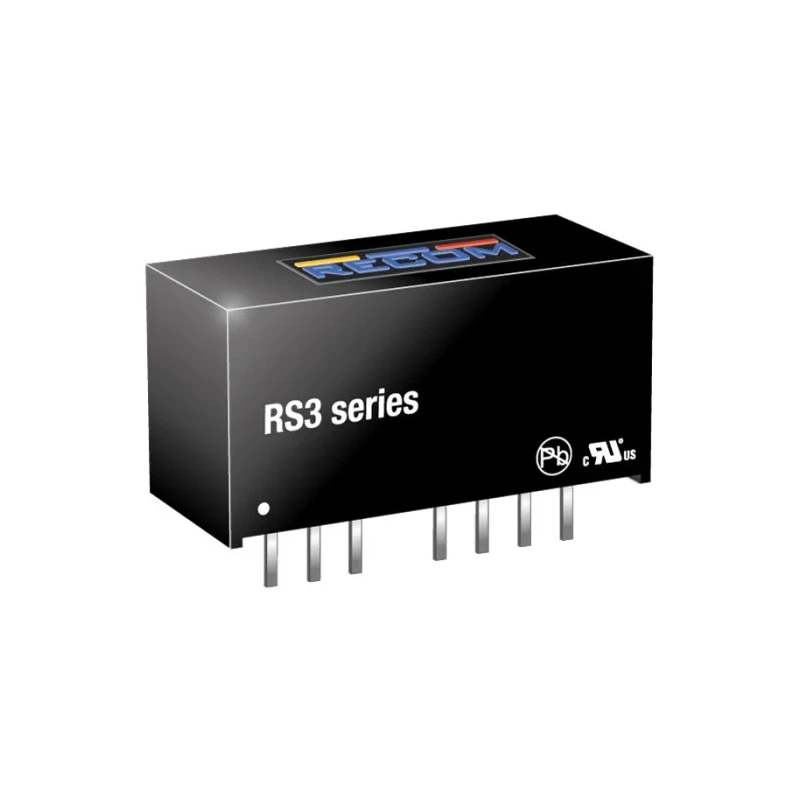

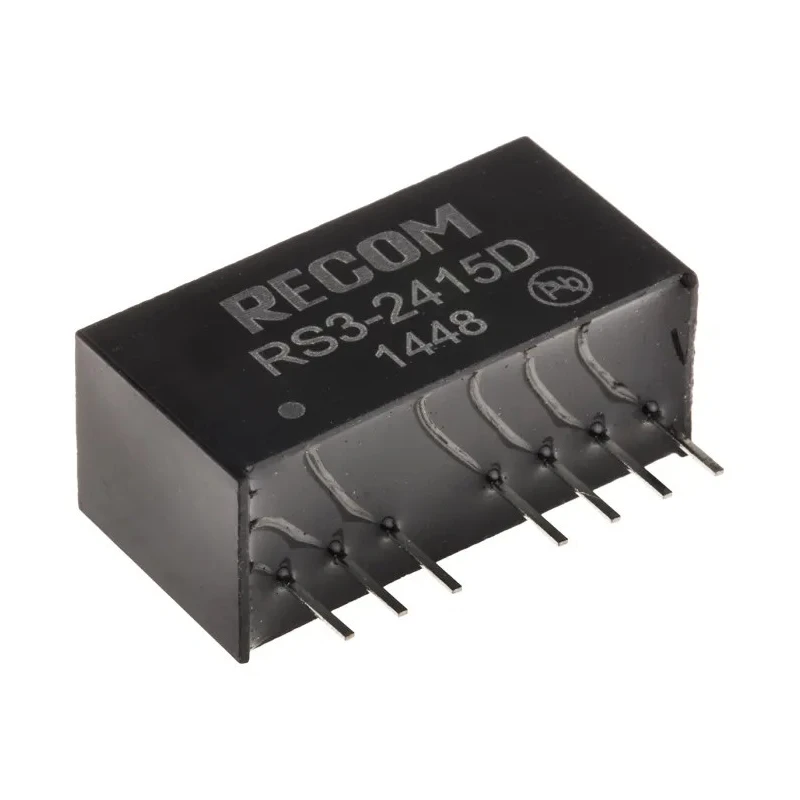

Recom RS3-2415D is a high-efficiency DC/DC converter designed for reliable voltage conversion from a wide input voltage range of 18V to 36V DC to a stable 15V DC output at up to 3W power. Its compact 8-pin SIP package is built for through-hole mounting, facilitating easy integration into various electronic assemblies.
This converter provides dual outputs, enabling simultaneous powering of two loads with precise output voltage accuracy within ±2%. With an efficiency of 83%, it ensures minimal power wastage, which is essential for maintaining energy-efficient systems.
Safety features include an isolation voltage rating of 1kV DC and flame-retardant housing to safeguard against electrical interference and fire risks. The device operates reliably across a broad temperature range from -40°C to +85°C, making it suitable for demanding industrial environments.
Additional functionalities include continuous short-circuit protection to prevent damage under fault conditions and a remote on/off control feature that allows system-level management of power delivery.

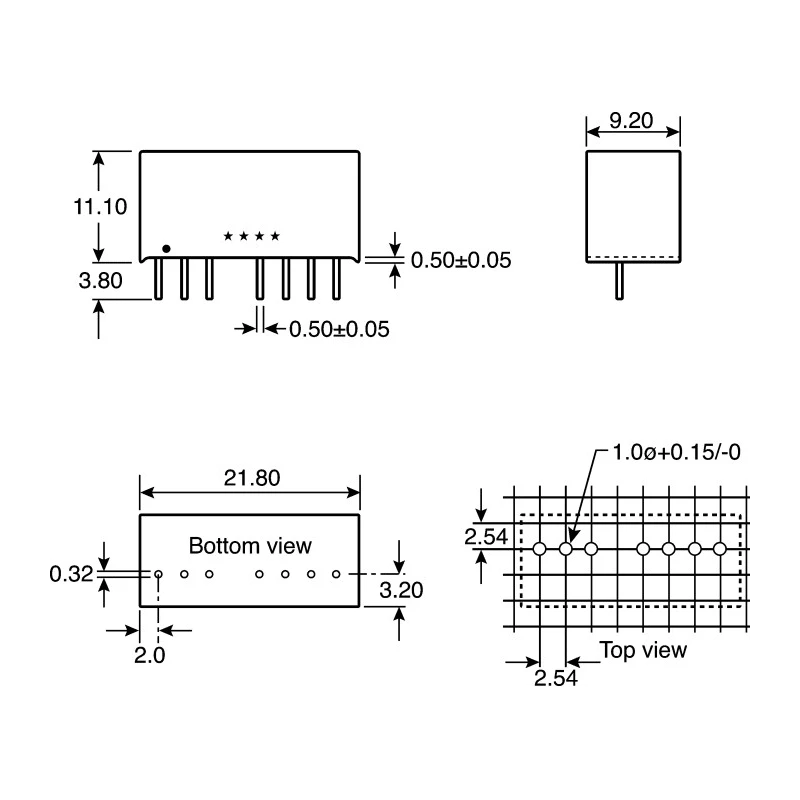

The compact dimensions - length of 21.8mm, width of 9.2mm, and depth of 11.1mm - with a lightweight of 4.7g make this module an efficient choice for space-constrained applications.
Dual output support powers multiple devices simultaneously. High efficiency reduces energy loss. Wide operating temperature range accommodates harsh environments. Robust isolation voltage enhances electrical safety. Compact through-hole SIP package for easy mounting.
Flame-retardant housing improves safety. Continuous short-circuit protection prolongs device and equipment life. Remote on/off enables flexible integration and control. Applications include telecommunications, automotive manufacturing, data centers, and heavy machinery.
Recom’s RS3 series DC/DC Converters are well-suited for industrial and commercial power supply needs. Purchase from EnvMart for reliable components tailored for precision voltage conversion and superior durability.
