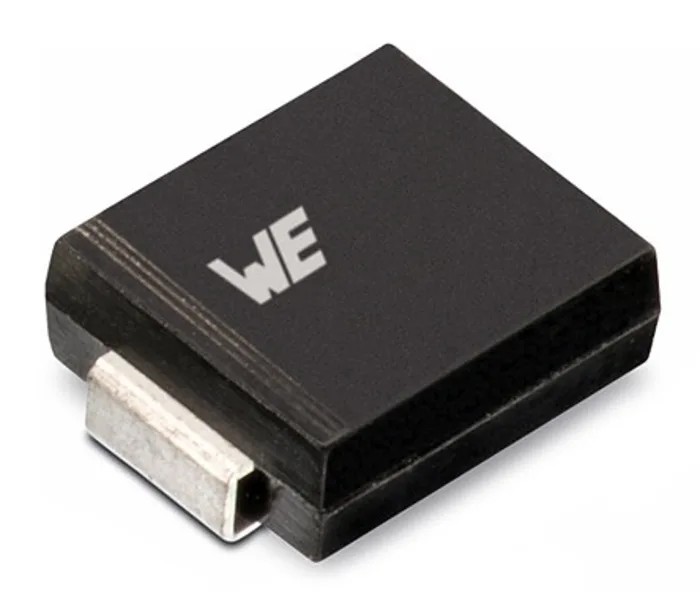

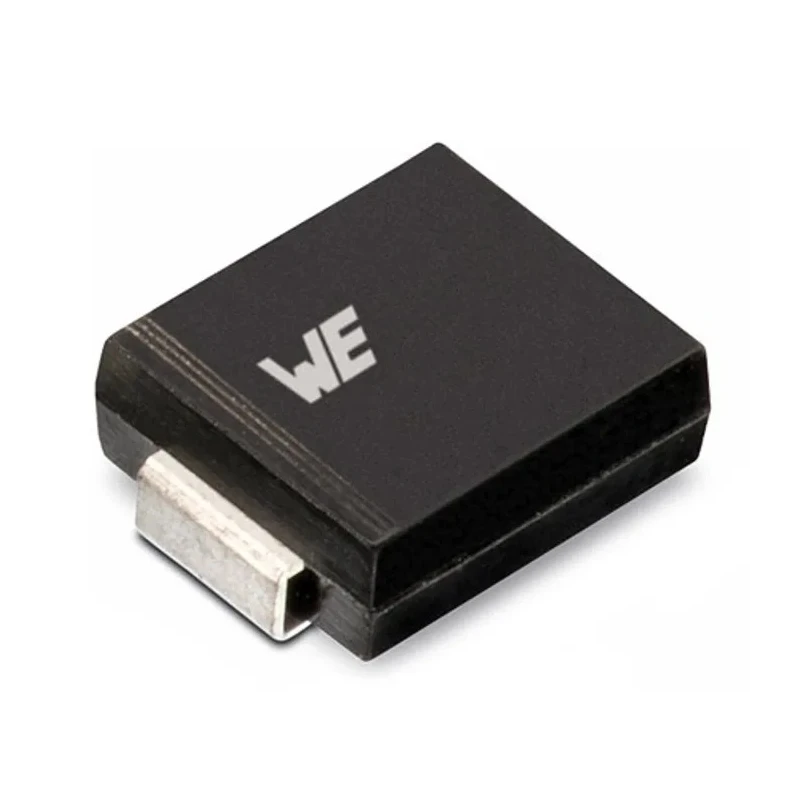

Wurth Elektronik 1-Element Bi-Directional TVS Diode 3 kW Peak Pulse Power, 2-Pin DO-214 Package 824551361

Wurth Elektronik 824551361 is a high-performance 1-element bidirectional transient voltage suppressor (TVS) diode designed for protecting sensitive electronic components against voltage spikes and transient surges. Rated for a peak pulse power of 3 kW, this device is packaged in a 2-pin DO-214 surface mount package, making it suitable for compact electronic assemblies and PCB layouts requiring robust overvoltage protection.

Featuring a single diode configuration with bi-directional voltage protection capabilities, this TVS diode provides a minimum breakdown voltage of 42.1 V, effectively clamping voltage spikes up to 58.1 V. It can withstand peak pulse currents of up to 51.6 A, making it highly reliable under sudden high-energy transient conditions.

The device operates across a wide temperature range from -65°C to 150°C, ensuring stable functionality in harsh industrial and commercial electronics environments. With dimensions measuring 6.86 mm in length, 5.9 mm in width, and 2.34 mm in height, it supports low-profile surface mount applications. The glass passivated junction technology ensures fast response times and improved longevity for reliable surge protection.

Single diode configuration optimized for bidirectional protection. 3 kW peak pulse power dissipation for high-energy transient events. Compact DO-214 surface mount package for space-saving design. Wide operating temperature range from -65°C to 150°C.

Maximum peak pulse current rating of 51.6 A. Glass passivated junction for fast response and durability. Low maximum reverse leakage current of 2 μA ensuring minimal power loss. Compliance with RoHS standards for environmental safety.

This TVS diode is widely used in industrial electronics, power supply protection, telecommunications, automotive, and consumer electronic devices that require dependable transient voltage suppression. Its high power handling capabilities make it suitable for safeguarding sensors, integrated circuits, and other sensitive components from electrostatic discharge (ESD), lightning, and inductive load switching transients.
