TRACOPOWER Switching Regulator Through Hole SIP-3 Package 9V DC 1A Output 9W Power TSR 1-2490

Free Delivery in India | Lowest Global Shipping Charges

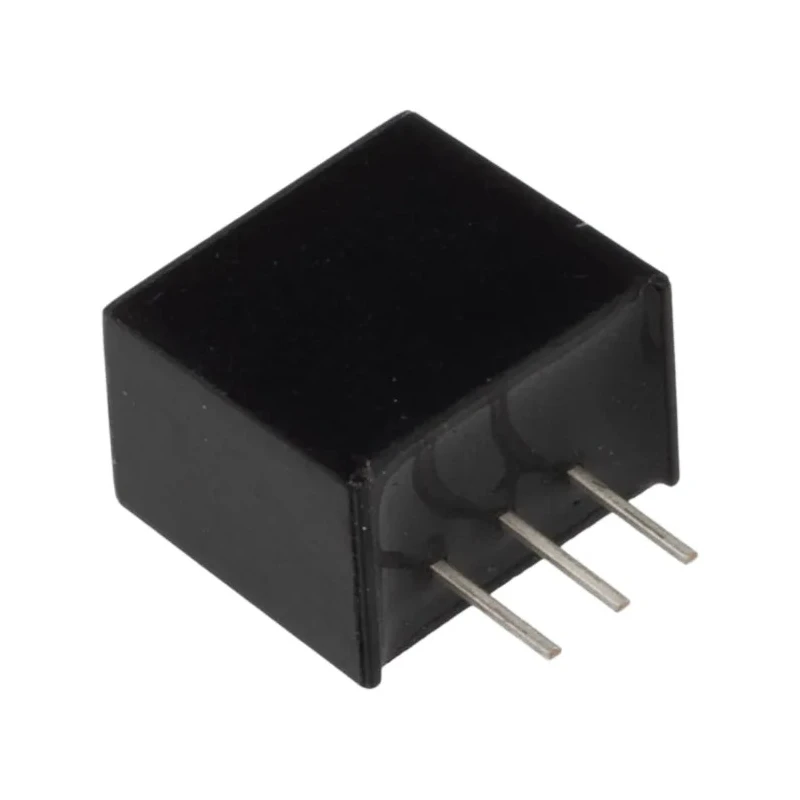

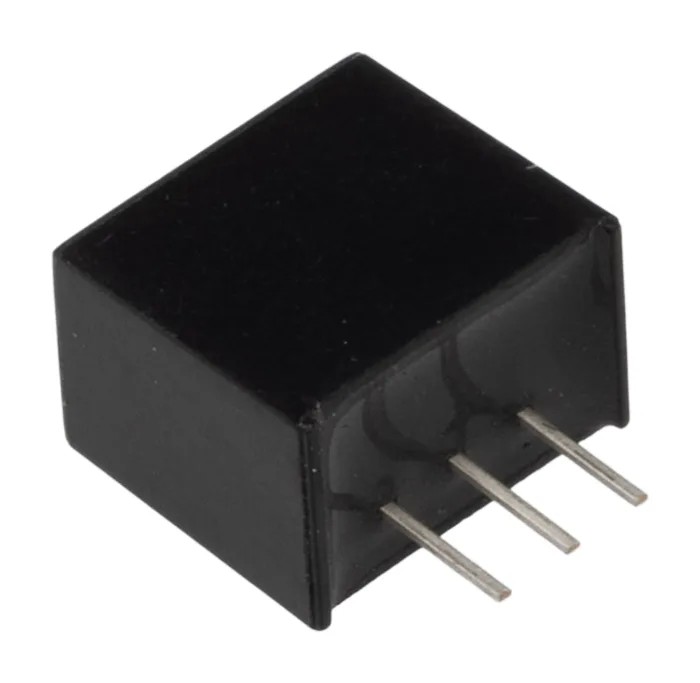

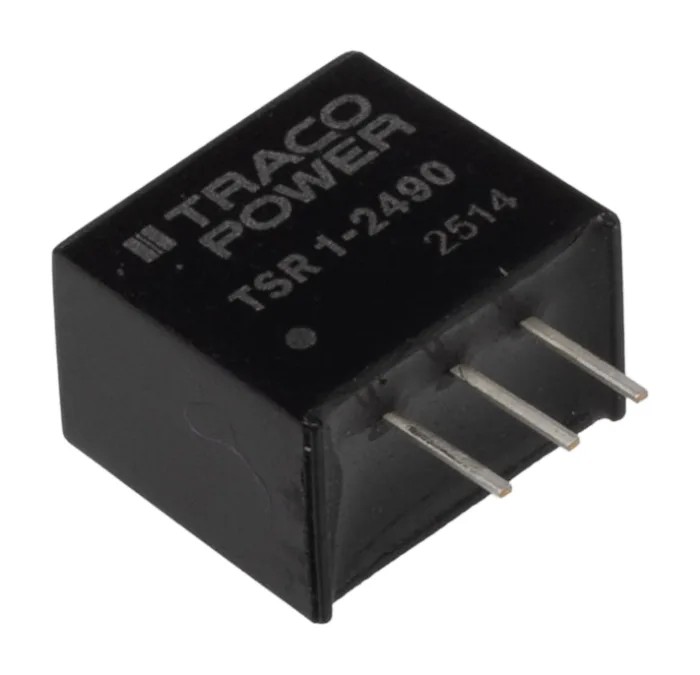

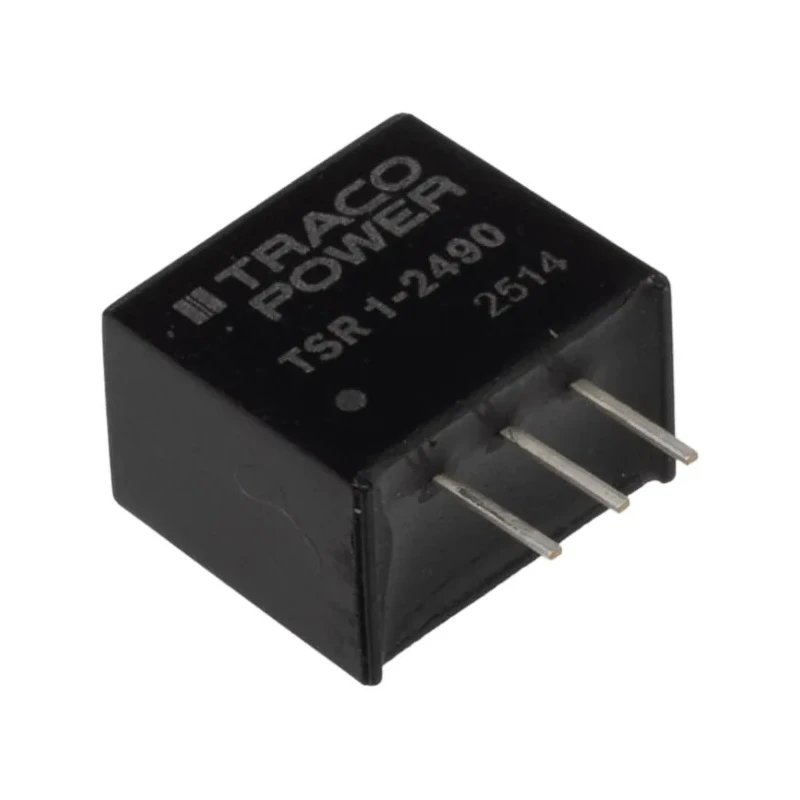

TRACOPOWER Switching Regulator Through Hole SIP-3 Package 9V DC 1A Output 9W Power TSR 1-2490

Name: TRACOPOWER Switching Regulator Through Hole SIP-3 Package 9V DC 1A Output 9W Power TSR 1-2490
Brand: TRACOPOWER
SKU: 204439
Price: 13.72 USD
Availability: InStock



Category Switching Regulator Brand TRACOPOWER Condition New

Specifications

Country of Origin	Taiwan
Brand	TRACOPOWER
Power	9W
Efficiency	95%
Length	11.7mm
Model	TSR 1-2490
Depth	10.2mm
Gross Weight	1.9g
Width	10.2mm
Mount Type	Through Hole
Series	TSR 1
Output Current	1A
Maximum Operating Temperature	85°C
Package Type	SIP-3
Load Regulation	±0.4 %
Minimum Operating Temperature	-40°C
MTBF	5350000h
Number of outputs	1
Ripple and Noise	75mV Pk-Pk
Maximum Input Voltage	36V dc
Line Regulation	±0.2 %
Standards/Approvals	RoHS
Minimum Input Voltage	12V
Output Voltage 1	9V dc

Key Features

Supports input voltage range from 12V to 36V DC for flexible application.
Maintains low ripple and noise at 75mV peak-to-peak for stable output.
Wide operating temperature range from minus 40°C to plus 85°C for harsh environments.
High efficiency of 95% reduces heat generation and power loss.
Features integrated short-circuit protection for device safety.
Compact SIP-3 package with through hole mount for easy PCB integration.
Pin compatible with LMxx linear regulators for legacy system upgrades.
Mean time between failures rated at 5,350,000 hours ensuring high reliability.

Product Description

TRACOPOWER TSR 1-2490 is a high-efficiency switching regulator designed for through hole mounting with a SIP-3 package, providing a regulated 9V DC output at 1A current and 9W power. It operates efficiently across a wide input voltage range of 12V to 36V DC and features excellent electrical performance with low ripple and noise of 75 millivolts peak-to-peak.

This regulator withstands harsh industrial operating conditions with a temperature tolerance from -40°C to +85°C, making it well-suited for demanding applications including desktop computers, telecommunications networks, digital cameras, and medical technology. Its high efficiency of 95% minimizes heat dissipation, eliminating the need for additional heat sinks and saving valuable PCB space.

The device is pin-compatible with common LMxx linear regulators, facilitating easy upgrades or replacements in legacy devices. The integrated short-circuit protection enhances device safety by preventing damage due to current surges. The robust non-conductive plastic housing provides electrical insulation and safety.

Physical dimensions are compact with a length of 11.7mm, width and depth each of 10.2mm, and weight of approximately 1.9 grams, allowing for compact board designs. The unit offers excellent reliability backed by a mean time between failures (MTBF) of over 5 million hours.

Wide input voltage range from 12V to 36V DC. 9V DC regulated output voltage at 1A current capacity. Low output ripple and noise ensuring clean power delivery. Operates reliably from -40°C to 85°C. High efficiency of 95% reduces power loss and heat.

Integrated short-circuit protection for durability. Compact SIP-3 through hole package for easy mounting. Pin compatible with LMxx linear regulators. Robust non-conductive housing for electrical safety. MTBF of 5,350,000 hours for long-term reliability.

Ideal for industrial, telecommunications, medical, and computing applications requiring stable power regulation. This TRACOPOWER switching regulator combines performance, reliability, and compact design for demanding electronic systems.
