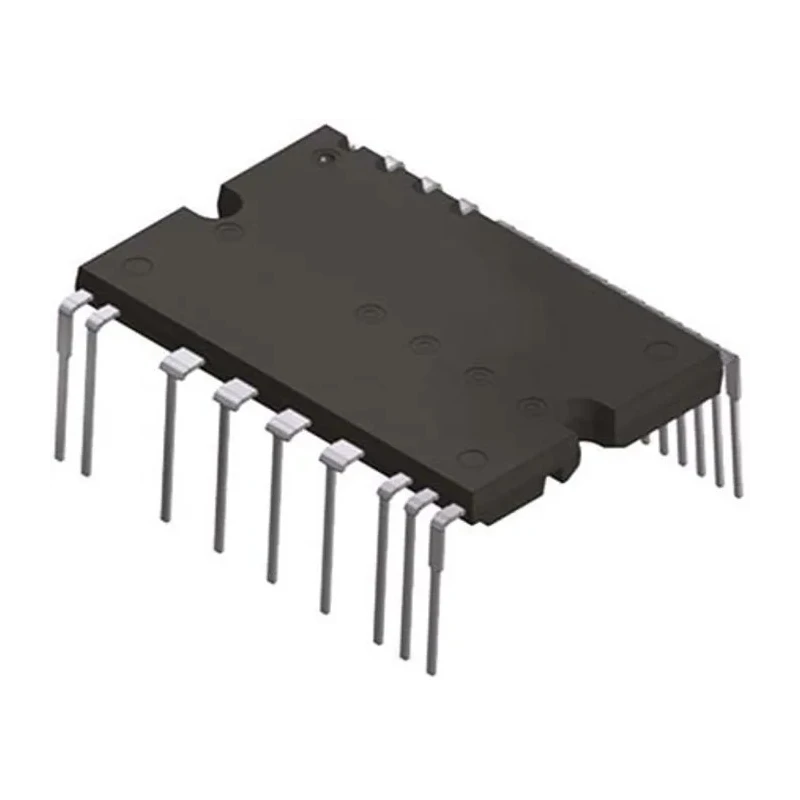

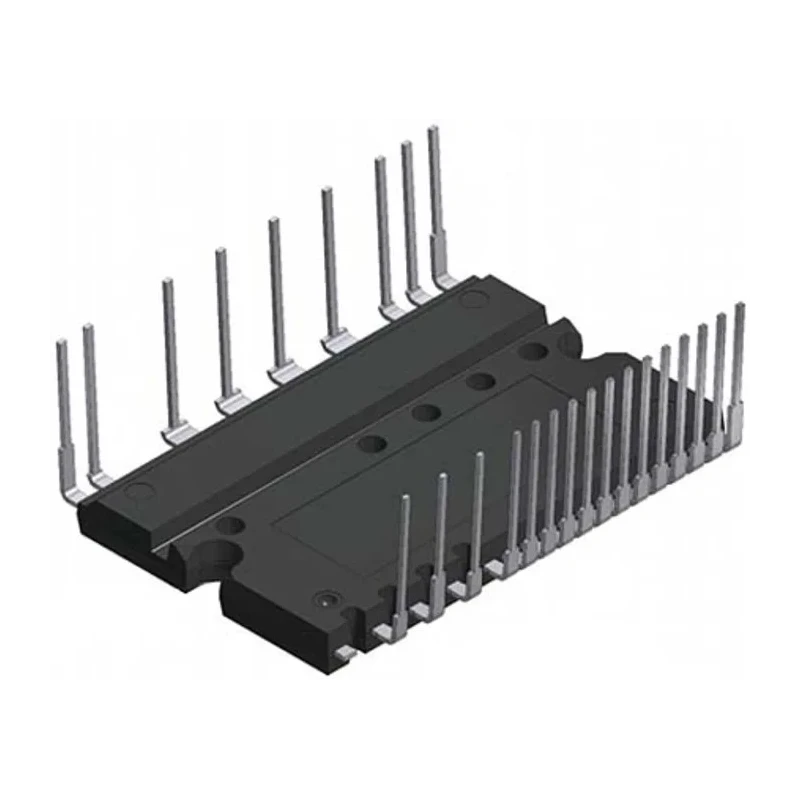

STMicroelectronics SLLIMM 2nd Series Intelligent Power Module 26-Pin SDIP2F Through Hole Microcontroller STGIF5CH60TS-L

STMicroelectronics STGIF5CH60TS-L is a 2nd series Small Low-Loss Intelligent Molded Module (SLLIMM) designed for industrial and home appliance motor drives.

This 26-pin through-hole SDIP2F microcontroller module integrates a 3-phase IGBT inverter bridge including control ICs and freewheeling diodes, enabling an optimal balance between conduction and switching energy losses.

Operating within a maximum supply voltage of 20V and power dissipation of 30W, the device supports industrial temperature ranges from -40°C to 125°C, making it suitable for harsh environments.

The intelligent power module features an isolation rating of 1500 Vrms/min ensuring high electrical safety standards, with built-in undervoltage lockout, smart shutdown, and interlocking functions for protection against fault conditions such as over temperature and over current.

The STGIF5CH60TS-L is compatible with logic input levels of 3.3V, 5V, and 15V CMOS/TTL, allowing flexible control interface options. The compact package size (38 mm length × 24 mm width × 1.5 mm height) facilitates easy integration into various electronic assemblies using through-hole mounting.

This product is ideal for applications in industrial motor controllers, home appliance motor drives, and other embedded power electronics where efficiency, robustness, and EMI performance are critical.

This microcontroller module features a 26-pin through-hole SDIP2F package for easy integration. It operates across a wide temperature range of -40°C to 125°C for robust industrial use. Supports a maximum supply voltage of 20V and power dissipation of up to 30W.

Includes integrated control ICs for gate driving and freewheeling diodes for efficient motor control. Offers low conduction and switching energy for enhanced energy efficiency in motor drives. Features an isolation rating of 1500 Vrms/min to ensure electrical safety.

Supports undervoltage lockout and smart shutdown for fault protection. Compatible with 3.3V, 5V, and 15V CMOS/TTL input levels. Package dimensions are 38mm length, 24mm width, and 1.5mm height for compact usage. Explore more STMicroelectronics Microcontrollers and power modules at EnvMart for advanced industrial and electronic component solutions.
