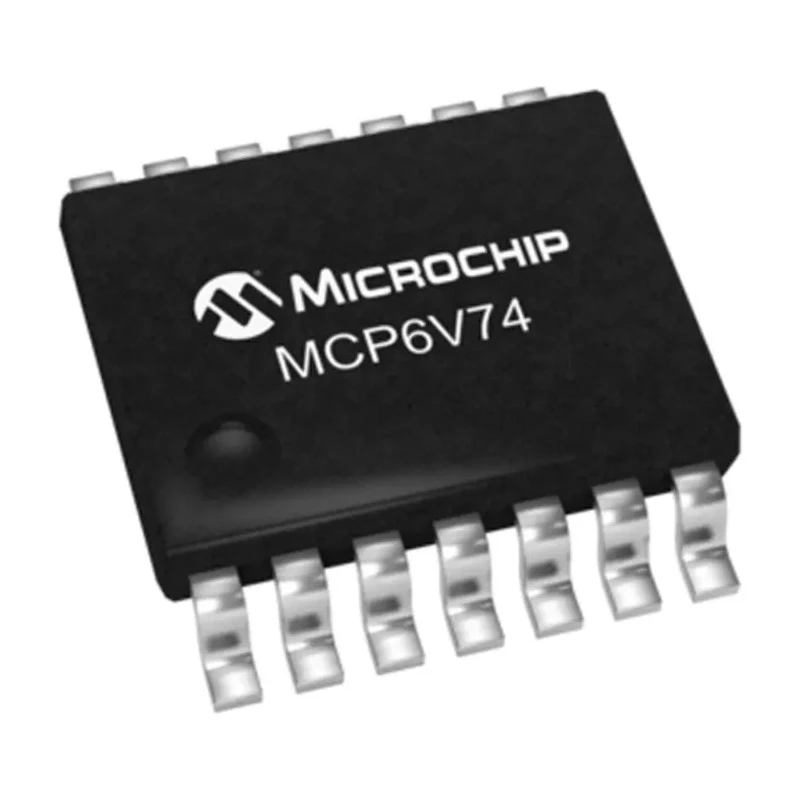

Microchip Operational Amplifier MCP6V74-E/ST 2 MHz Gain Bandwidth, 5.5V, 14-Pin TSSOP MCP6V74-E/ST

Microchip MCP6V74-E/ST Operational Amplifier is a high precision analog semiconductor device with a 2 MHz Gain Bandwidth Product, packaged in a compact 14-Pin TSSOP surface mount package. The device operates over a 2V to 5.5V supply voltage range and supports industrial temperature ranges from -40°C to 125°C. Featuring zero drift architecture, it offers exceptionally low input offset voltage of 8 μV and minimal offset drift, making it ideal for high accuracy measurement and industrial sensor applications.

This operational amplifier supports single channel operation with a slew rate of 1 V/μs, enabling responsive signal processing. The device provides excellent Power Supply Rejection Ratio (PSRR) minimum 115 dB at 5.5V and Common-Mode Rejection Ratio (CMRR) of 117 dB, ensuring reliability in noisy environments. Its quiescent current consumption of 170 μA per amplifier is suitable for low power electronic designs.

The amplifier's stable unity gain configuration enhances design flexibility. Built for robust electromagnetic interference rejection with 96 dB EMIRR at 1.8 GHz, this part is suited for demanding industrial, laboratory, automotive, and instrumentation applications. The compact physical dimensions of ~5.1mm (length) x 4.5mm (width) x 1.05mm (height) facilitate dense PCB layouts. The MCP6V74-E/ST complies with RoHS standards for environmental safety.

Zero drift architecture reduces offset voltage and drift for precision analog applications. High Gain Bandwidth Product of 2 MHz enables fast signal handling. Wide operating temperature range from -40°C up to 125°C suits harsh environments.

Low quiescent current minimizes power consumption in battery-operated devices. EMI rejection up to 96 dB ensures performance integrity in industrial environments. Single channel with 14-pin TSSOP package compatible with surface mount technology.

Stable operation in unity gain configurations supports a variety of analog circuit designs. Offers high output current capability up to 30mA for driving external loads. RoHS compliant for regulatory environmental requirements.

This operational amplifier is frequently used in industrial automation, sensor signal conditioning, instrumentation amplifiers, medical devices, automotive electronics, and other precision analog circuit applications.
