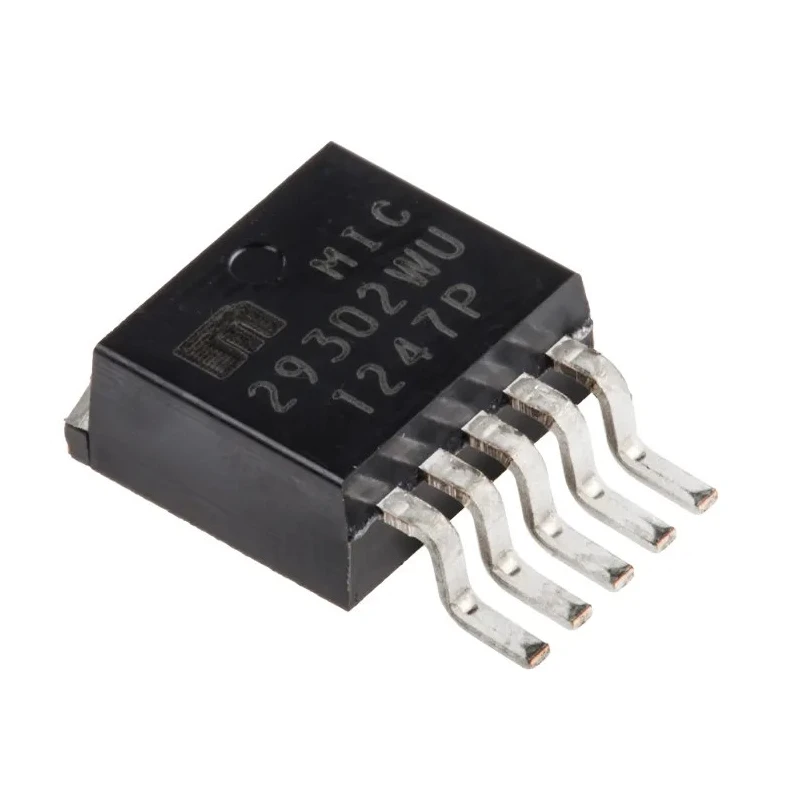

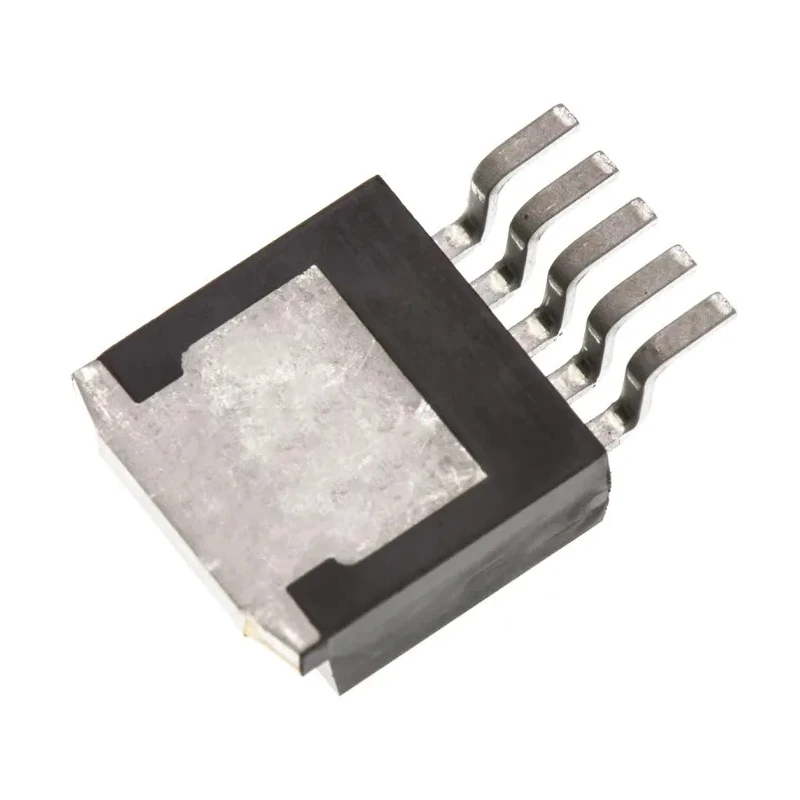

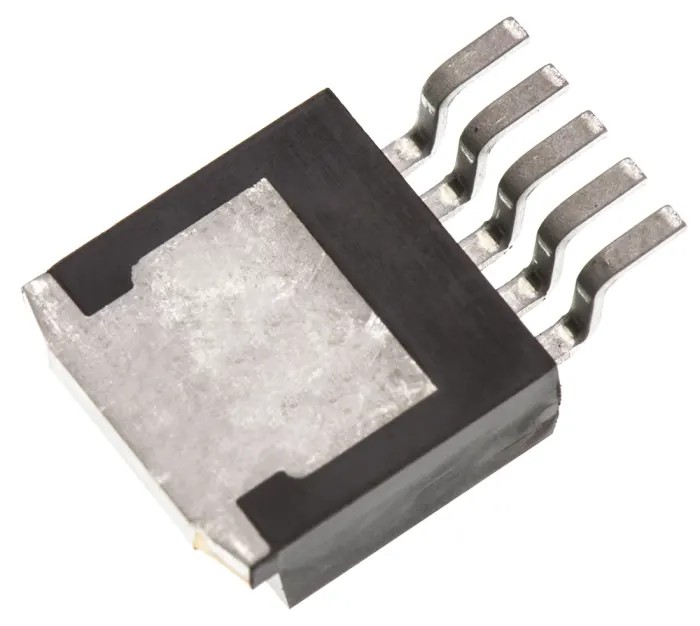

Microchip 3A Low Dropout Voltage Regulator 26V 5-Pin Surface Mount MIC29302WU-TR
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Regulators Microchip, Voltage Regulator 26V 5-Pin RS Stock No |
| Brand | Microchip |
| Height | 4.49mm |
| Length | 10.66mm |
| Model | MIC29302WU-TR |
| Width | 10.84mm |
| Mount Type | Surface |
| Series | MIC2930X |
| Maximum Operating Temperature | 125°C |
| Polarity | Positive |
| Maximum Input Voltage | 26V |
| Minimum Input Voltage | 2.25V |
| Pin Count | 5 |
Key Features
- High accuracy with 1% tolerance and low dropout voltage between 350mV and 425mV.
- Uses Microchip's Super Beta PNP process with a PNP pass element for superior performance.
- Features zero-current shutdown mode for energy efficiency.
- Fast transient response suitable for high performance electronics.
- Produces an error flag output for out-of-regulation conditions.
- Designed for positive polarity with maximum operating temperature of 125°C.
- Ideal for automotive, battery powered equipment, and high efficiency linear power supplies.
- Compatible as a post regulator for switching supplies and other industrial electronics applications.
Product Description
Microchip MIC29302WU-TR is a high accuracy, high current 3A Low Dropout Voltage Regulator designed for surface mount applications. It features a 5-pin D2PAK package with compact dimensions, suitable for modern industrial and automotive electronics environments. The regulator operates efficiently with input voltages ranging from 2.25V minimum up to 26V maximum and withstands operating temperatures up to 125°C.
Utilizing Microchip's proprietary Super Beta PNP process and a PNP pass element, the MIC29302WU-TR delivers a typical dropout voltage between 350mV and 425mV with a precise 1% output tolerance, ensuring stable voltage regulation even under transient load conditions. Its zero-current shutdown mode enhances power conservation during inactive periods.
The integrated error flag output signals out-of-regulation conditions, contributing to improved system diagnostics and reliability. This Voltage Regulator is optimized for applications such as automotive systems, battery powered equipment, and high efficiency linear power supplies. Additionally, it performs effectively as a post regulator for switching power supplies and is used extensively in high efficiency computer systems.
High accuracy 3A low dropout voltage regulation with 1% tolerance. 5-pin D2PAK surface mount package with compact dimensions. Fast transient response and low ground current operation. Zero-current shutdown mode for reduced power consumption.
Error flag output for monitoring out-of-regulation conditions. Wide input voltage range from 2.25V to 26V. Maximum operating temperature of 125°C for reliable industrial use. Suitable for automotive, battery powered, and linear power supply applications.
Robust design employing Microchip's Super Beta PNP process technology.
Microchip products are trusted for their reliability and performance in various industrial, automotive, laboratory, and commercial electrical applications. Explore more power management solutions in the Microchip range on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input voltage for this model is 26V.
The minimum input voltage required for the MIC29302WU-TR is 2.25V.
This voltage regulator can operate at a maximum temperature of 125°C.
The dropout voltage for this model typically ranges between 350mV and 425mV.
The MIC29302WU-TR features a 5-pin configuration.
The height of this model is 4.49mm.
The dimensions of the MIC29302WU-TR are 10.66mm in length and 10.84mm in width.
This model supports surface mounting.
It is suitable for automotive systems, battery powered equipment, and high efficiency linear power supplies.
Yes, it includes an error flag output to signal out-of-regulation conditions.
This voltage regulator is designed for positive polarity.
The output voltage tolerance for this model is 1%.
