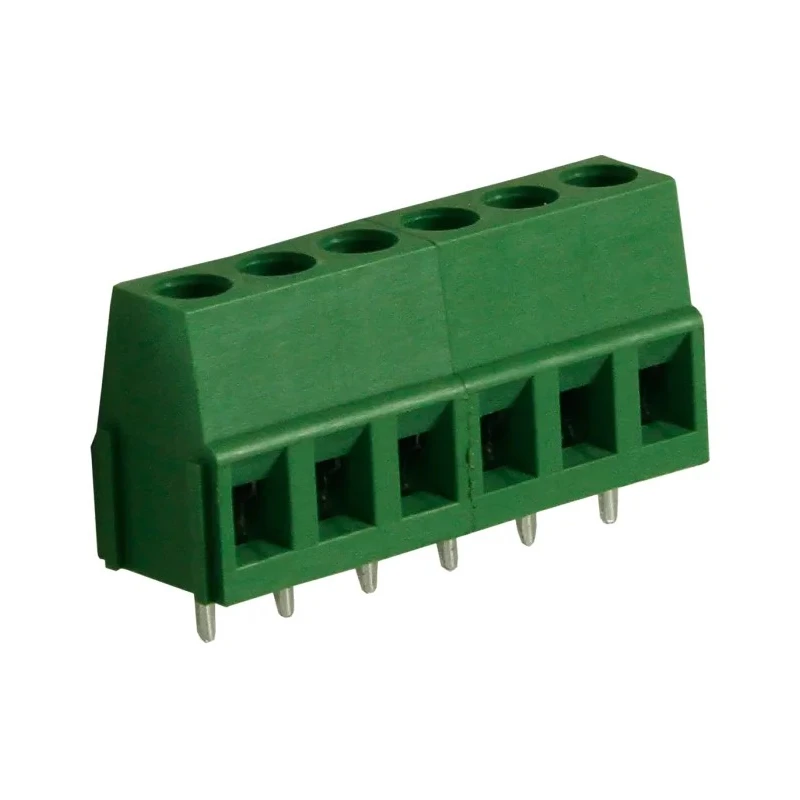

RS PRO PCB Terminal Block 6-Contact 5 mm Pitch 1 Row 10A 300V Polyamide Housing 897-0828
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 300V |
| Brand | RS PRO |
| Colour | Green |
| Orientation | Straight |
| Current | 10A |
| Length | 30mm |
| Model | 897-0828 |
| Depth | 14.35mm |
| Width | 10.3mm |
| Housing Material | Polyamide |
| Series | RS PRO |
| Number of Rows | 1 |
| Pitch | 5mm |
| Number of Contacts | 6 |
| Minimum Wire Size mm² | 0.32mm² |
| Maximum Wire Size mm² | 3.3mm² |
| Minimum Wire Size AWG | 12AWG |
| Maximum Wire Size AWG | 22AWG |
| Wire Connection Method | Screw |
Key Features
- This terminal block supports six electrical contacts for robust PCB connections.
- The pitch between contacts is 5 millimeters to standard specifications.
- It has a single row configuration suitable for compact PCB mounting.
- Supports wire sizes ranging from 0.32 mm² to 3.3 mm², corresponding to 22 AWG to 12 AWG.
- Constructed with green polyamide housing that complies with UL94-V0 flame retardant standards.
- Wire connection is secured by professional rising clamp screw terminals with M2.5 nickel-plated stainless steel screws.
- The terminal block has a straight orientation for straightforward wire routing.
- Designed for electrical current up to 10 amps and rated voltage of 300 volts.
Product Description
The RS PRO 897-0828 PCB Terminal Block is a high-quality electronic component designed for efficient and secure connections on printed circuit boards (PCBs). Featuring six contacts arranged in a single row with a 5 mm pitch, this terminal block supports current ratings up to 10 amperes and voltage ratings of 300 volts. Its robust and flame-retardant polyamide housing in green color ensures durability and compliance with safety standards such as UL94-V0.
Engineered for precision wiring, the terminal block accepts wire sizes from 0.32 mm² (22 AWG) up to 3.3 mm² (12 AWG), making it versatile for various wire gauges encountered in industrial and commercial electronics. The rising clamp mechanism uses M2.5 nickel-plated stainless steel captive screws to guarantee tight and reliable connections, minimizing the risk of wire loosening during operation.
The straight orientation of the terminal block facilitates straightforward installation and wire routing on PCBs, optimizing space and assembly efficiency. Compact with a length of 30 mm, width of 10.3 mm, and depth of 14.35 mm, it is well-suited for applications where space is a premium.
This component is ideal for industrial, manufacturing, and electronics assembly uses, where stable and robust electrical connections are required. The RS PRO series ensures trusted performance and quality, making it a preferred choice among engineers and technicians.
This terminal block supports six contacts for robust PCB wiring. 5 mm pitch housing provides standard spacing for efficient design. Single row configuration for compact PCB layout. Wire size capability from 0.32 mm² to 3.3 mm² meets diverse application needs.
Polyamide housing is UL94-V0 flame retardant rated for safety. Nickel-plated stainless steel M2.5 screws secure wires firmly. Straight orientation simplifies cable routing. Compact dimensions of 30 x 10.3 x 14.35 mm optimize PCB space usage.
Rated for 10A current and 300V voltage for reliable performance. Manufactured in China under RS PRO quality standards.
This RS PRO PCB terminal block is a trusted component for electronics manufacturing, prototyping, and industrial applications. Explore the extensive RS PRO range for quality components that meet industrial and commercial electronics needs at EnvMart.
Explore more products in our Pluggable Terminal Blocks category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a maximum current of 10A and a voltage of 300V.
It features a 5 mm pitch with a single row configuration, allowing for compact PCB mounting.
It supports wire sizes ranging from 0.32 mm² (22 AWG) to 3.3 mm² (12 AWG).
The housing is constructed from green polyamide, which is UL94-V0 flame retardant rated.
Wires are secured using a rising clamp screw connection method with M2.5 nickel-plated stainless steel screws.
The dimensions are 30 mm in length, 10.3 mm in width, and 14.35 mm in depth.
It has a straight orientation, which simplifies wire routing during installation.
This terminal block is manufactured in China.
It is suitable for industrial, manufacturing, and electronics assembly applications requiring stable electrical connections.
This unit features six contacts for robust PCB wiring.
The UL94-V0 rating indicates that the polyamide housing meets stringent flame retardant standards, enhancing safety in electrical applications.
