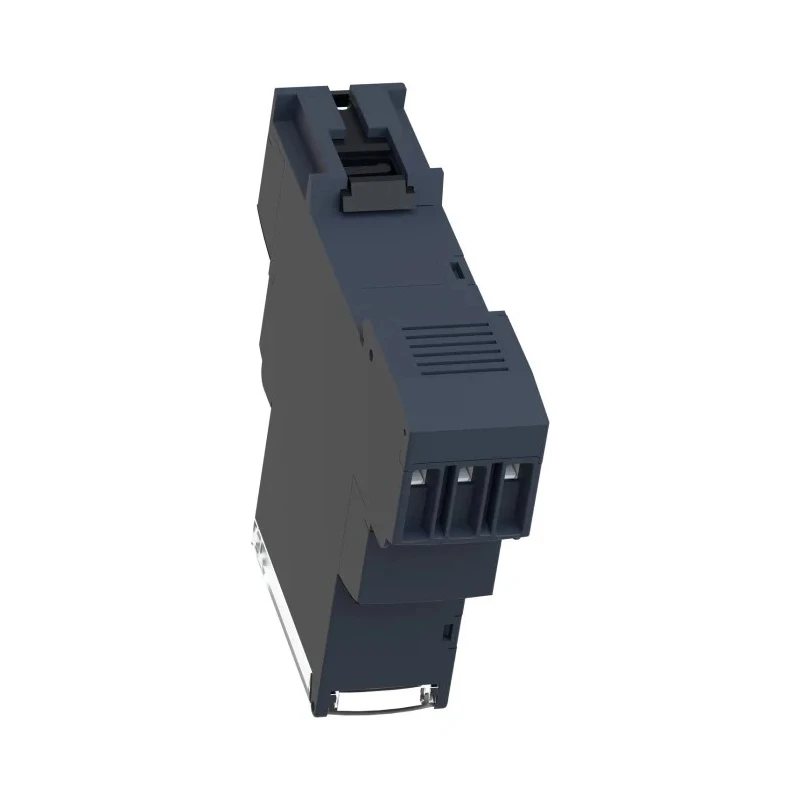

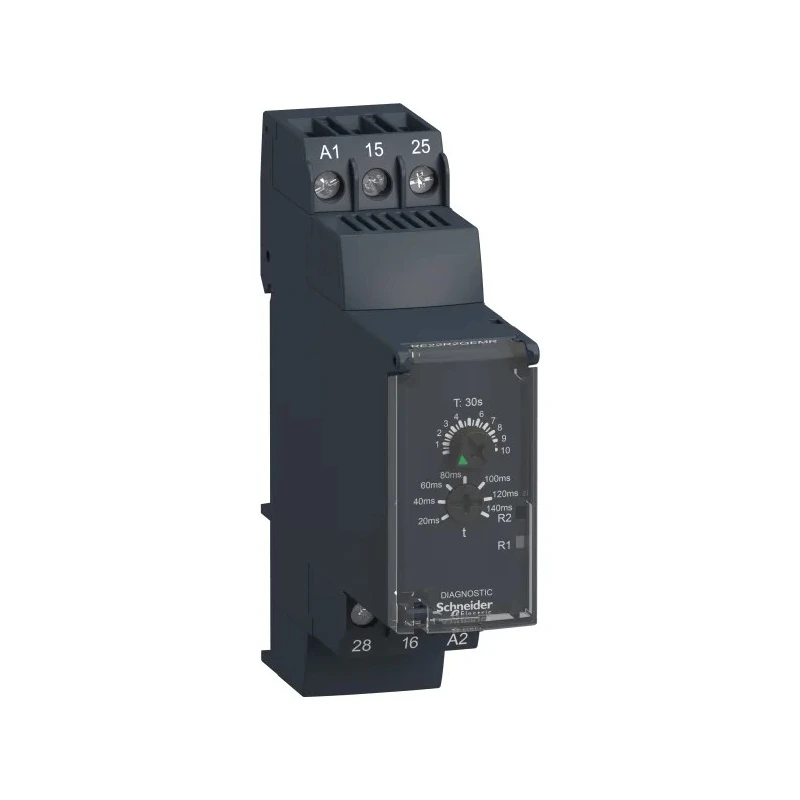

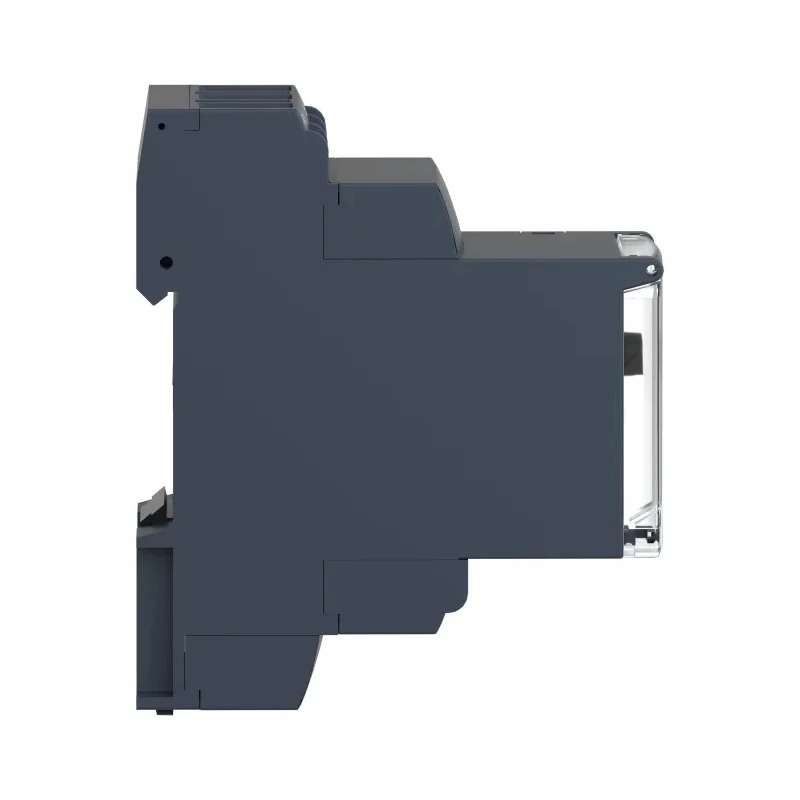

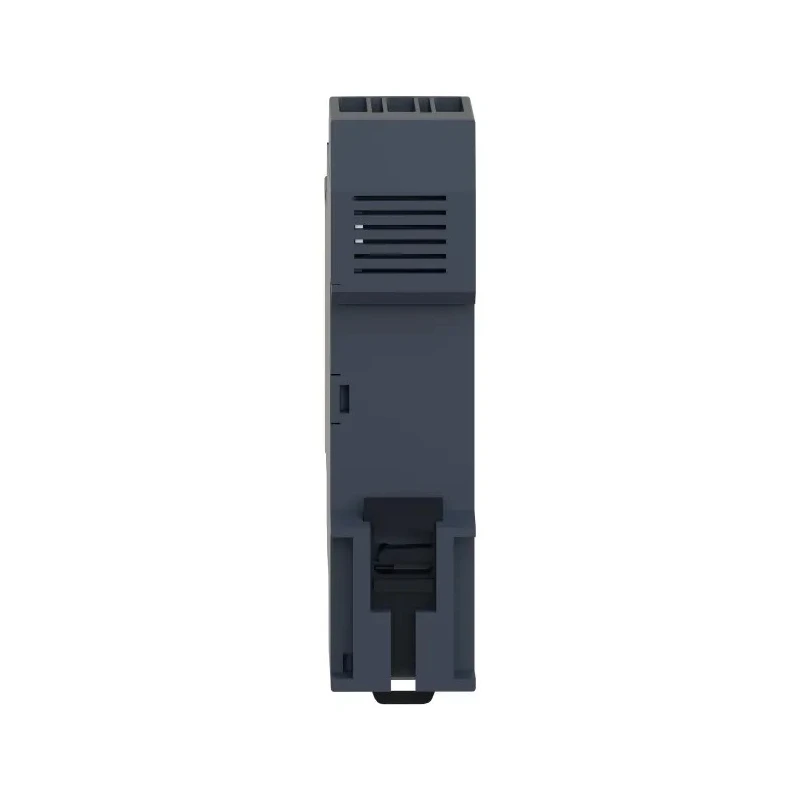

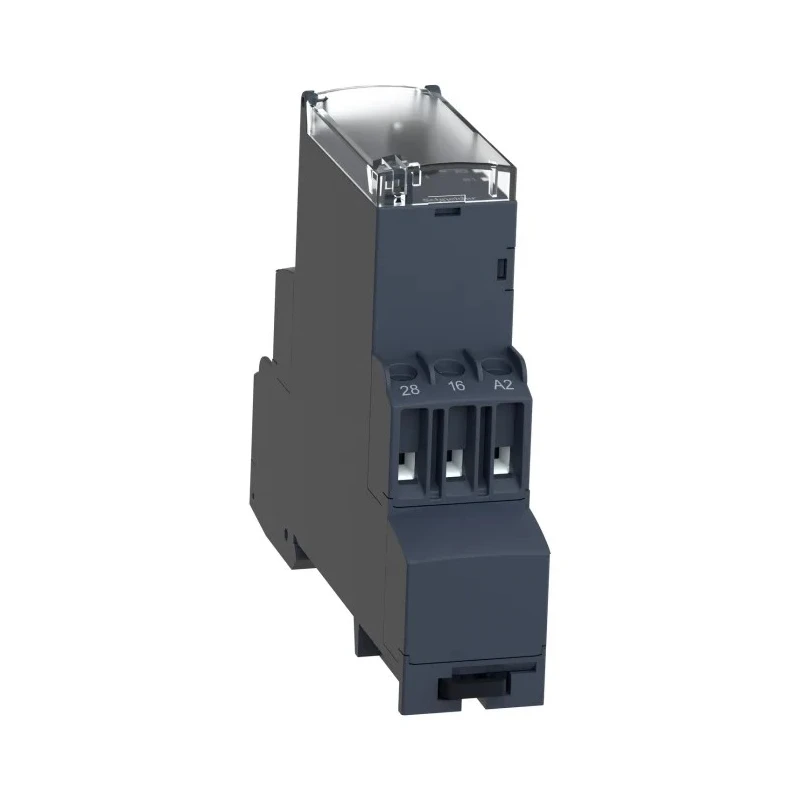

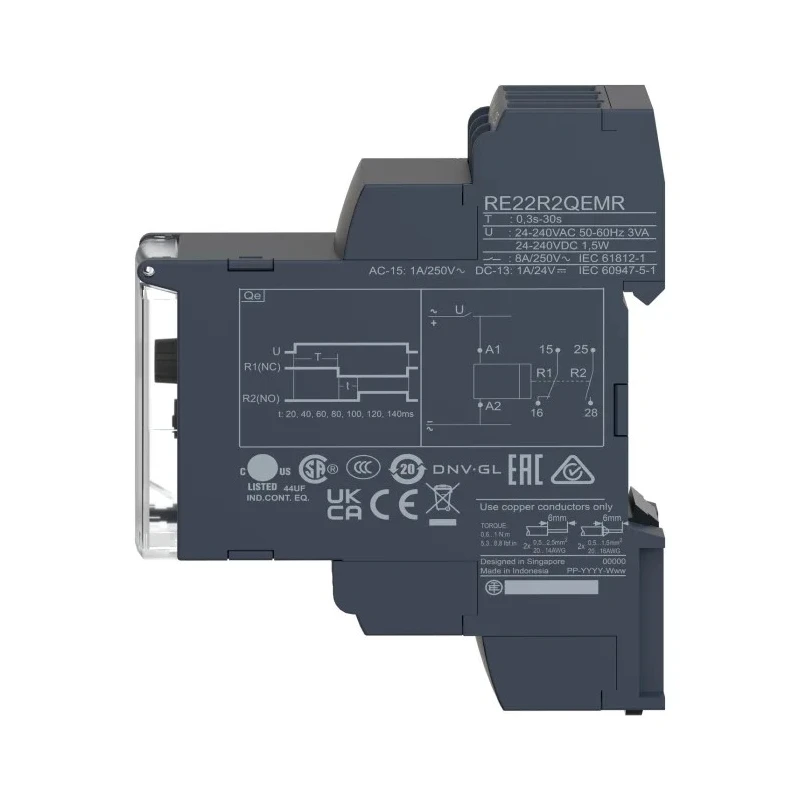

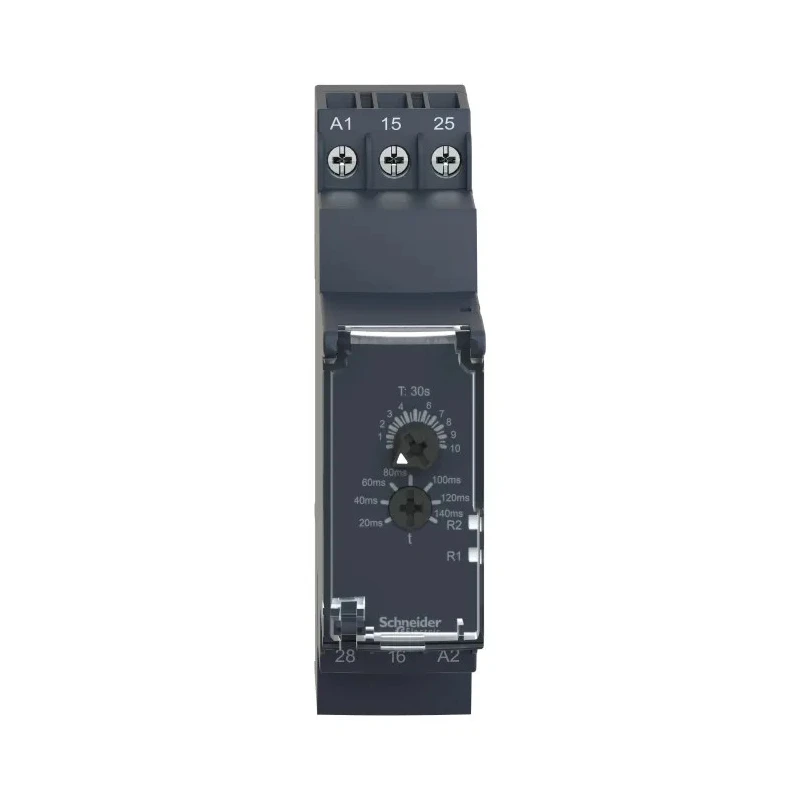

Schneider Electric Harmony Time Series DIN Rail Timer Relay, 2-Contact, 24 to 240 V DC/AC, 0.3 to 30 s, DPDT RE22R2QEMR
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Schneider Electric |
| Height | 79.5mm |
| Function | Valve |
| Length | 22.9mm |
| Model | RE22R2QEMR |
| IP Rating | IP20, IP40, IP50 |
| Mode | Star-Delta |
| Width | 90mm |
| Mount Type | DIN Rail |
| Series | Harmony Time |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -20°C |
| Time Range | 0.3 to 30 s |
| Terminal type | Screw |
| Standards/Approvals | CE, EAC, CCC, IEC 61812-1, RCM, UL 508, CSA, GL, UL |
| Number of Contacts | 2 |
| Number of Timer Functions | 1 |
| Switching Voltage | 250V ac |
| Contact Current | 8A |
| Supply DC Voltage | 24 to 240 V dc |
| Timing Adjustment | Knob |
| Supply AC Voltage | 24, 240V ac |
Key Features
- Multi-functional timer relay for diverse control applications.
- Adjustable time range from 0.3 to 30 seconds for operational flexibility.
- Double Pole Double Throw (DPDT) contact configuration for versatile circuit control.
- Screw terminal connections provide secure and reliable wiring.
- Compact size suitable for standard DIN rail mounting.
- Operating temperature range from -20°C to +60°C ensures reliability in various environments.
- Suitable for industrial, HVAC, lighting control, and safety system applications.
- Diagnostic button and LED indicators simplify monitoring and troubleshooting.
Product Description
Schneider Electric RE22R2QEMR Harmony Time Series DIN Rail Timer Relay is a robust modular timing device designed for a broad range of control applications in industrial electrical automation. It features a supply voltage range from 24 to 240 V AC/DC and provides precise time delay functions with an adjustable time range from 0.3 to 30 seconds. The relay is equipped with a Double Pole Double Throw (DPDT) contact configuration and a star-delta mode to enable versatile switching operations.
The compact dimensions of 22.9mm in length, 90mm in width, and 79.5mm in height allow easy integration and mounting on standard DIN rails, supporting space saving in control panels or electrical cabinets. Screw terminals ensure secure and reliable wiring connections compatible with various cable types.
Designed for durability, it operates reliably within a temperature range of -20°C to +60°C and offers IP ratings of IP20, IP40, and IP50, providing protection suitable for industrial environments. The relay supports valve control functions and switching voltages up to 250 V AC with an 8 A contact current rating, meeting stringent electrical standards including CE, IEC 61812-1, UL 508, and CSA approvals.
This timer relay is widely used in automated control and safety systems, HVAC timing controls, machine operation sequences, and lighting management for energy efficiency. It simplifies time delay settings through a convenient knob adjustment and provides diagnostic capabilities with built-in LED indicators and a monitoring button.
Multi-functional timer relay with adjustable timing from 0.3 to 30 seconds. DPDT contact configuration enables flexible circuit control applications. Compact DIN rail mounting with screw terminals for secure connections.
Operating temperature from -20°C to +60°C for reliable industrial performance. Complies with international electrical standards and certifications. Diagnostic features assist in installation and troubleshooting. Ideal for automation, HVAC, lighting, and safety system applications.
Explore the range of Schneider Electric products in the Timer Relay category with EnvMart for optimized control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The timer relay has an adjustable time range from 0.3 to 30 seconds, allowing for operational flexibility in various applications.
This model features a Double Pole Double Throw (DPDT) contact configuration, which enables versatile circuit control.
The dimensions of the relay are 22.9 mm in length, 90 mm in width, and 79.5 mm in height, making it compact for DIN rail mounting.
It operates with a supply voltage range of 24 to 240 V AC/DC, accommodating various electrical systems.
The maximum contact current rating is 8 A, suitable for various control applications.
The operating temperature range is from -20°C to +60°C, ensuring reliability in diverse environments.
It uses screw terminals for secure and reliable wiring connections, compatible with various cable types.
This model complies with several international standards including CE, IEC 61812-1, UL 508, and CSA approvals.
It is suitable for applications such as industrial automation, HVAC controls, lighting management, and safety systems.
Timing adjustment is made convenient through a knob, allowing for easy setting of the desired time delay.
The relay has IP ratings of IP20, IP40, and IP50, providing various levels of protection suitable for industrial environments.
It supports a star-delta mode, enabling versatile switching operations for different applications.
