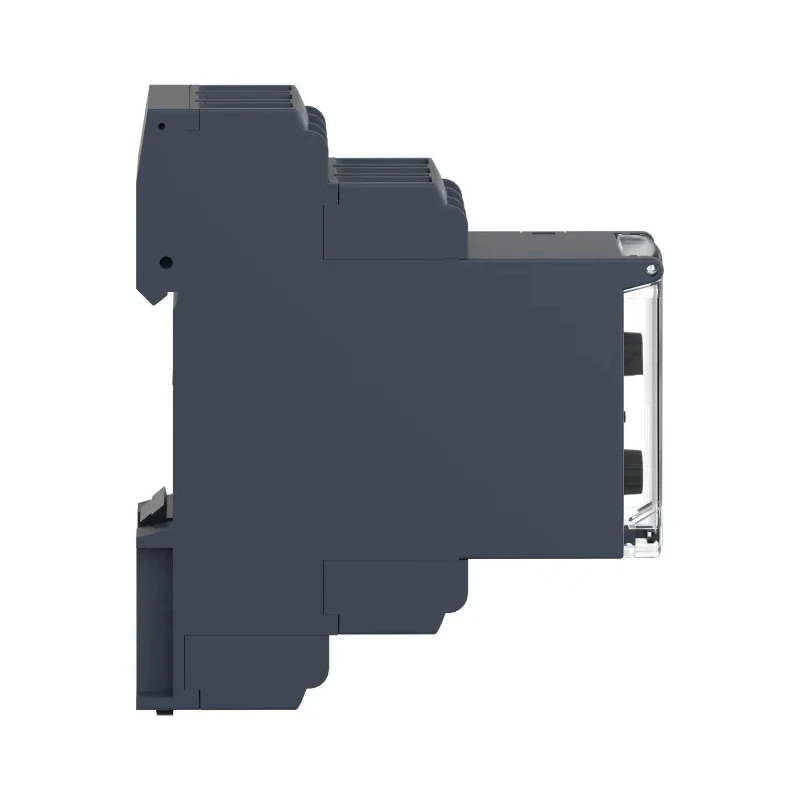

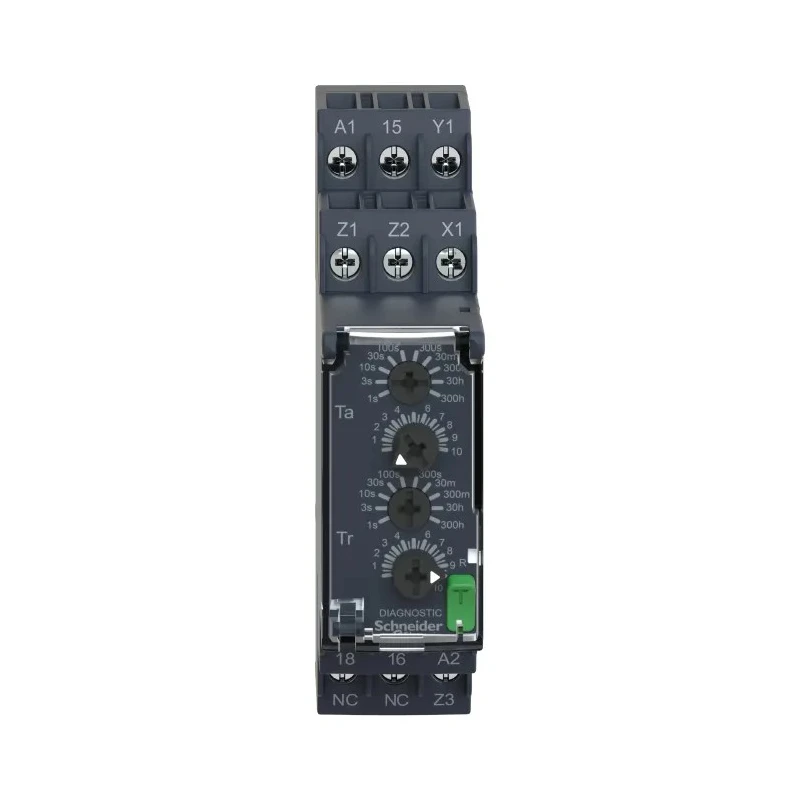

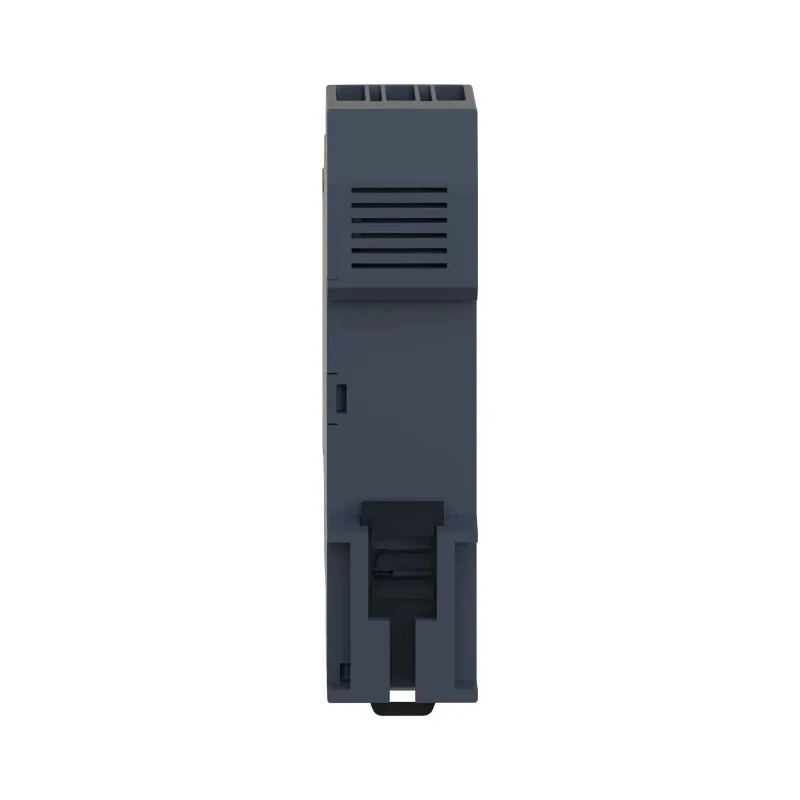

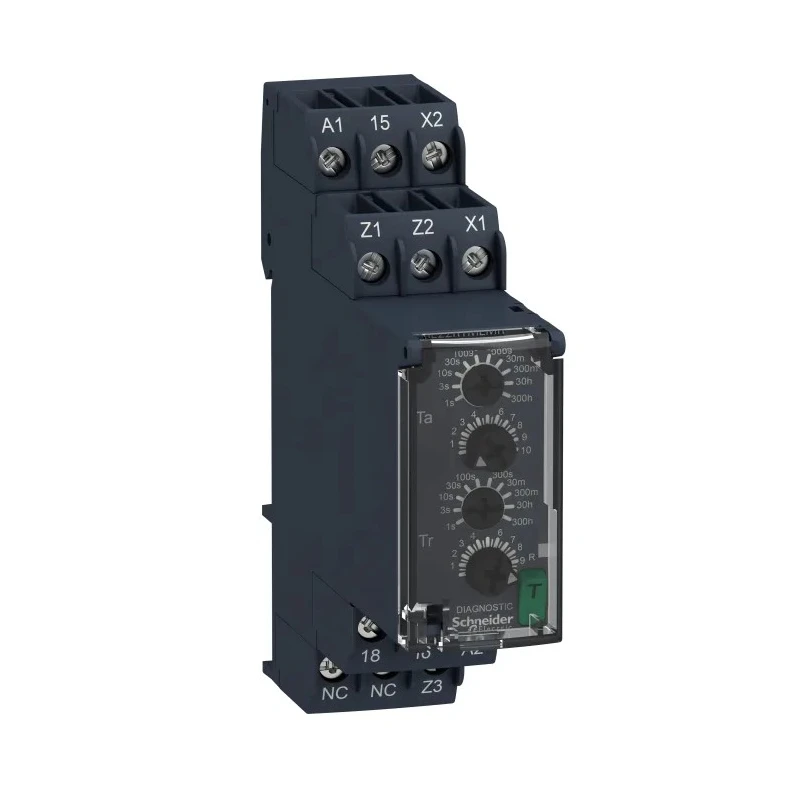

Schneider Electric Harmony Time Series DIN Rail Timer Relay 1-Contact 24-240 V AC/DC 0.05-300 h RE22R1MLMR

Schneider Electric RE22R1MLMR Harmony Time Series DIN Rail Timer Relay features a versatile 1-contact single-pole double-throw (SPDT) configuration with a broad supply voltage range from 24 V AC to 240 V AC and 240 V DC, making it suitable for various industrial automation, electrical control, and machinery applications.

The device offers multiple time ranges adjustable via an intuitive knob, spanning from very short delays of 0.05 seconds up to extended delays of 300 hours, enabling precise time control for pneumatic cylinders, security systems, and process timing.

Its compact DIN rail mounting format allows easy installation within electrical panels, while the screw terminal design ensures reliable and tool-free wiring connections. With a contact current rating of 8 A and a switching capacity of 250 V AC, the relay supports robust switching operations under demanding load conditions.

The relay’s IP40 housing rating provides finger-safe protection and guards against ingress of objects larger than 1 millimeter, ensuring safety in industrial environments. This relay operates reliably across a temperature range of -20°C to +60°C, thus performing consistently in harsh environmental conditions.

Additional robust features include a mechanical lifespan rated for ten million cycles and a high impulse withstand voltage of 5 kV to protect against electrical surges, sustaining long-term durability and operational safety.

Compact DIN rail mounting for seamless panel integration. One SPDT contact supporting 8 A contact current at up to 250 V AC. Multiple timing ranges from 0.05 seconds to 300 hours with easy knob adjustment. AC/DC voltage supply flexibility from 24 V to 240 V AC/DC.

IP40 rated finger-safe housing for enhanced operator safety. Operating temperature range from -20°C to 60°C suits industrial environments. Screw terminals provide secure and simple wiring connections. Comprehensive international approvals including UL, CE, and CSA.

Lightweight at approximately 100 grams to minimize mounting loads. Long mechanical lifetime with 10 million operation cycles ensures durability.

This Schneider Electric Timer Relay is ideal for automated control of pneumatic cylinders, security equipment, and industrial machinery requiring reliable time delay functions. Its advanced features support installation in industrial, manufacturing, HVAC, and electrical automation systems.
