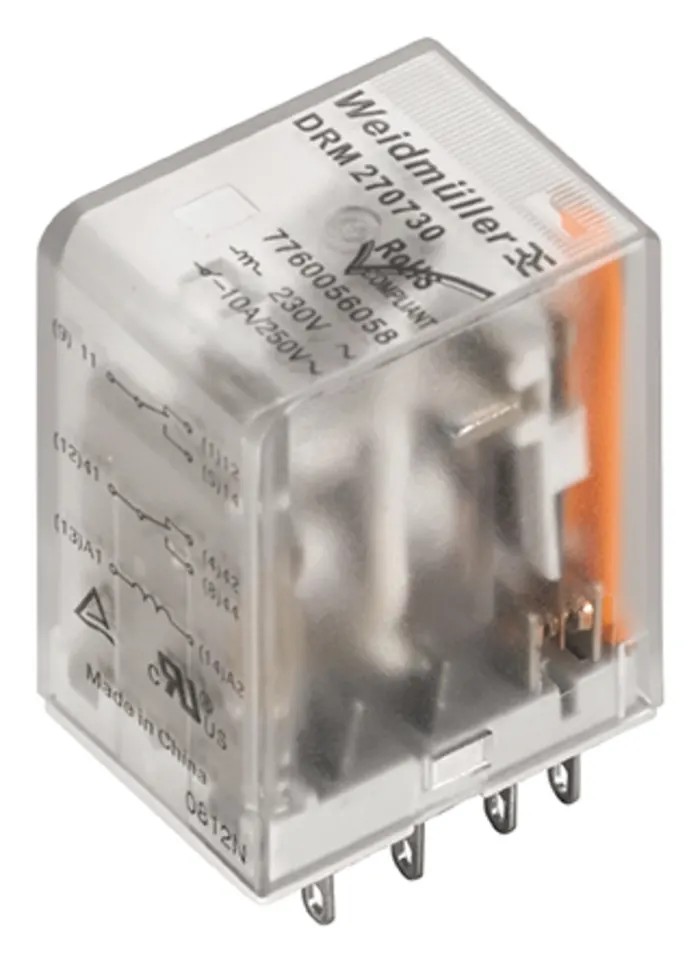

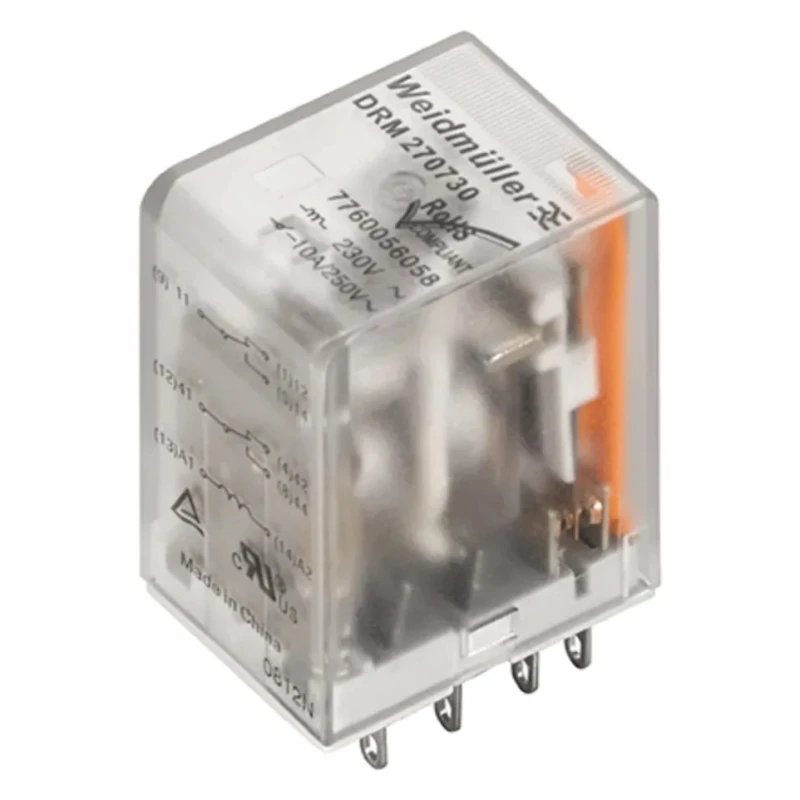

Weidmüller Panel Power Relay 230V AC Coil, 5A Switching Current, 4PDT DRM Series 7760056086
Specifications
| Country of Origin | China |
|---|---|
| Brand | Weidmüller |
| Height | 28mm |
| Length | 21.5mm |
| Width | 36mm |
| Mount Type | Panel |
| Contact Material | Silver Alloy |
| Series | DRM |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | 4PDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 5A |
| Terminal type | Plug-In |
| Standards/Approvals | cURus |
| Coil Resistance | 15000Ω |
| Coil Voltage | 230V ac |
| Switching AC Voltage | 250V ac |
Key Features
- Equipped with a 230V AC coil voltage for reliable operation.
- 4PDT contact configuration allows multiple circuit control.
- Compact panel mount design suitable for various installations.
- Switching current rated at 5A with a switching AC voltage of 250V AC.
- High coil resistance of 15000Ω ensures durability and low power consumption.
- Constructed with silver alloy contacts for excellent conductivity and wear resistance.
- Operates within a temperature range of -40°C to 55°C for industrial environments.
- Plug-in terminal type enables easy wiring and maintenance.
Product Description
Weidmüller 7760056086 Panel Power Relay from the DRM series is engineered for challenging industrial applications requiring reliable switching at voltages between 110V and 230V AC. This power relay features a 4PDT (four-pole double-throw) contact configuration, making it ideal for controlling multiple circuits simultaneously in panel-mounted setups.
The relay coil operates at 230V AC with a nominal coil resistance of 15000Ω, providing efficient power usage and durability. It is rated for a switching current of 5A and can switch AC voltages up to 250V AC, ensuring suitability across diverse electrical applications. The silver alloy contacts contribute to reduced contact wear and enhance electrical performance by minimizing arcing during switching operations.
Designed with industrial conditions in mind, this relay functions reliably within a temperature range from -40°C minimum to 55°C maximum, supporting applications in harsh environments. The plug-in terminal type simplifies installation and maintenance, reducing downtime.
The DRM series is specifically designed to suppress arcing through series connected contacts and built-in blow magnets, substantially extending the relay's service life compared to conventional alternatives. The compact size (Length: 21.5mm, Width: 36mm, Height: 28mm) makes it an optimal choice for panel installations where space is limited.
230V AC coil voltage for stable operation in industrial environments. 4PDT contact configuration allows multiple circuit switching. Panel mount design with plug-in terminals for easy installation. 5A switching current rating with up to 250V AC switching voltage.
Silver alloy contacts minimize wear and improve conductivity. Wide operating temperature range from -40°C to 55°C. Coil resistance of 15000Ω for efficient energy usage. DRM series construction provides arc suppression and long relay life.
Compact dimensions fit panel mounting requirements. Complies with cURus safety standards.
This Weidmüller power relay is suitable for industrial automation, electrical panels, HVAC control, and manufacturing equipment. Its robust design and reliability make it an essential component for control and switching in a wide range of electrical systems.
Explore more Power Relays and electrical control devices on EnvMart to enhance your industrial automation projects with trusted quality components like the Weidmüller 7760056086 relay.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 230V AC, ensuring reliable performance in industrial applications.
It has a switching current rating of 5A, suitable for various electrical applications.
This model features a 4PDT (four-pole double-throw) contact configuration, allowing control of multiple circuits simultaneously.
The relay can switch AC voltages up to 250V AC, making it versatile for different electrical systems.
The dimensions are 21.5mm in length, 36mm in width, and 28mm in height, suitable for compact panel installations.
It features a plug-in terminal type, which simplifies installation and maintenance processes.
The contacts are constructed from silver alloy, which enhances conductivity and reduces wear.
It operates effectively within a temperature range of -40°C to 55°C, suitable for harsh industrial environments.
The coil resistance is 15000Ω, contributing to its efficient energy usage and durability.
It complies with cURus safety standards, ensuring it meets required safety regulations for electrical components.
This relay is suitable for industrial automation, electrical panels, HVAC control, and manufacturing equipment.
It belongs to the DRM series, which is designed to suppress arcing and enhance the relay's service life.
