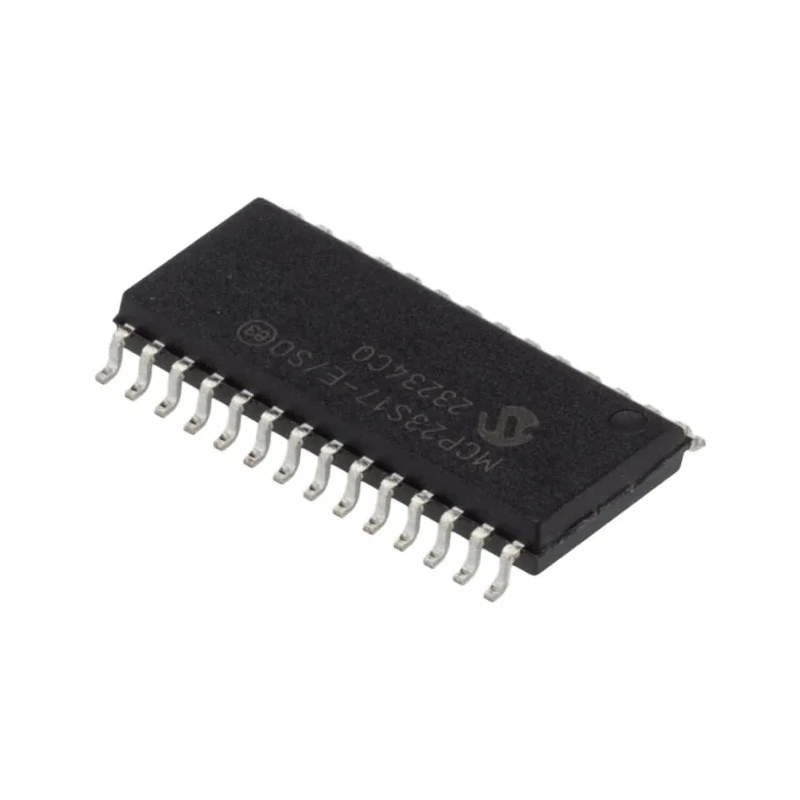

Microchip 16-Channel I/O Expander Serial-SPI Surface Mount SOIC 28, 5MHz Clock MCP23S17-E/SO

Free Delivery in India | Lowest Global Shipping Charges

Microchip 16-Channel I/O Expander Serial-SPI Surface Mount SOIC 28, 5MHz Clock MCP23S17-E/SO

Name: Microchip 16-Channel I/O Expander Serial-SPI Surface Mount SOIC 28, 5MHz Clock MCP23S17-E/SO
Brand: Microchip
SKU: 135668
Price: 2.09 USD
Availability: InStock



Category I/O Expander IC Brand Microchip Condition New

Specifications

Country of Origin	Thailand
Brand	Microchip
Height	2.65mm
Length	17.9mm
Model	MCP23S17-E/SO
Mount Type	Surface
Series	MCP23S17
Maximum Operating Temperature	125°C
Package Type	SOIC
Minimum Operating Temperature	-40°C
Interface Type	Serial-SPI
Pin Count	28
Maximum Supply Voltage	5.5V
Minimum Supply Voltage	1.8V
Clock frequency	5MHz
Number of I/O Channels	16
Microchip 16-Channel I/O Expander Serial-SPI SOIC 28, MCP23S17-E/SOBrand	Microchip

Key Features

Provides 16 configurable digital input/output channels.
Operates with a supply voltage range of 1.8V to 5.5V for flexible system integration.
Implements serial SPI communication interface for efficient data transfer.
Compact SOIC 28 surface mount package with 17.9mm length and 2.65mm height dimensions.
Designed for industrial temperature range from -40°C to 125°C for robust operation.
Ideal for expanding microcontroller I/O capabilities in embedded systems and industrial applications.

Product Description

Microchip MCP23S17-E/SO is a 16-Channel Input/Output Expander designed to enhance the digital I/O capabilities of microcontrollers and embedded systems. It features a Serial SPI interface allowing rapid and efficient communication with host devices. Housed in a compact SOIC 28 surface mount package, it measures 17.9mm in length and 2.65mm in height, making it suitable for space-constrained circuit boards.

This device supports robust operation over a wide voltage range from 1.8V to 5.5V and is rated for industrial operating temperatures from -40°C to 125°C, ensuring durability in harsh environments. The 16 GPIO channels are configurable as inputs or outputs, enabling flexible interfacing with various peripherals such as sensors, switches, LEDs, and other digital components.

With a system clock frequency of up to 5MHz, the MCP23S17-E/SO offers fast data throughput over the SPI bus. It is especially useful in applications requiring expanded I/O such as industrial control systems, automation, instrumentation, and consumer electronics.

Provides 16 configurable digital input/output channels. Operates with a supply voltage range of 1.8V to 5.5V for flexible system integration. Implements serial SPI communication interface for efficient data transfer. Compact SOIC 28 surface mount package with 17.9mm length and 2.65mm height dimensions.

Designed for industrial temperature range from -40°C to 125°C for robust operation. Ideal for expanding microcontroller I/O capabilities in embedded systems and industrial applications.

This product originates from Thailand and is supplied in a new condition. It is categorized under I/O Expander ICs in the semiconductor segment, making it a suitable choice for electrical and electronic component inventory in industrial, laboratory, manufacturing, and embedded systems sectors.
