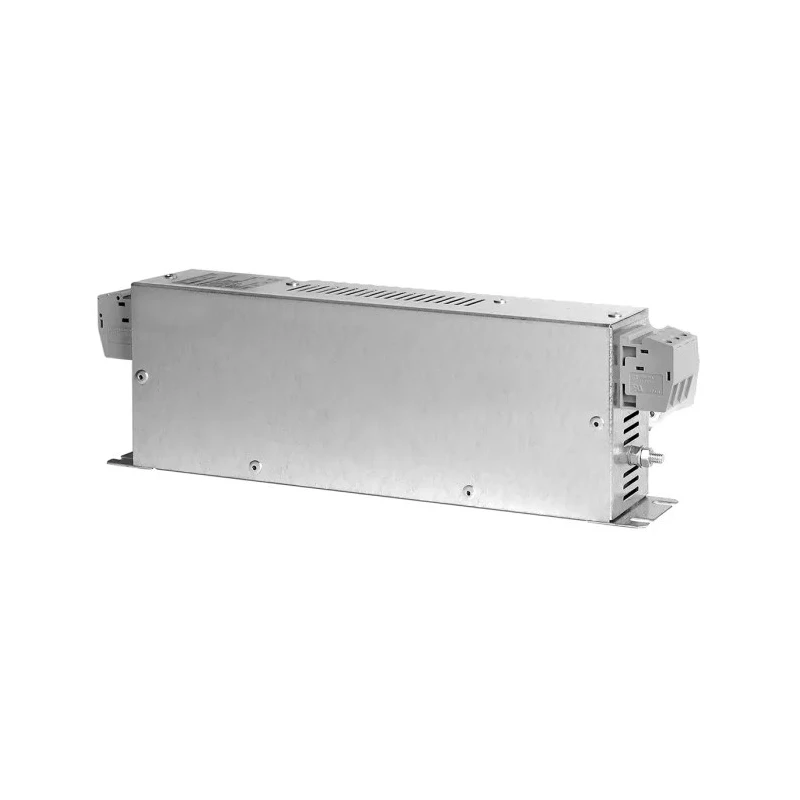

TE Connectivity Corcom BCF 3 Phase Flange EMI Filter 75A 277V AC 50Hz 60Hz 1609989-6

TE Connectivity model 1609989-6 is a high-quality Corcom BCF Series 3 phase flange EMI filter designed for industrial electronic applications. It provides effective electromagnetic interference and radio frequency interference suppression in three phase power line systems operating at 75 amps and up to 277 volts AC at both 50 and 60 hertz frequency.

This flange-mounted EMI filter features a robust threaded bolt termination style that ensures a reliable and secure electrical connection. Its compact book-form design, with dimensions of 270mm length, 135mm height, and 80mm depth, allows integration in machinery and control panels with space constraints.

Operating within a temperature range of -10°C to 50°C, this filter performs reliably in varied industrial environments. It incorporates a 2-stage filter design, optimized to reduce both differential and common mode noise below 100 kHz, thereby enhancing equipment immunity and safety.

The filter is certified under major safety standards such as UL and CSA, evidencing compliance with international safety requirements. With a leakage current specification of 30mA, it maintains safe operation during continuous use.

Typical applications include 3 phase inverters and converters, variable speed motor drives, elevators and escalators, machine tools, and process automation equipment. Its use helps to meet EMC regulations and protect sensitive electronics from conducted and radiated interference.

Supports a maximum current of 75A. Operates at voltage up to 277V AC with 50Hz and 60Hz frequency. Flange mount type with threaded bolt termination ensures secure installation. Designed for 3 phase power systems with 2-stage filtering.

Operating temperature range from -10°C to 50°C for versatile environments. Leakage current is rated at 30mA for safety compliance. Compact book-form design measuring 270mm length, 135mm height, and 80mm depth. Approved to UL and CSA safety standards.

Ideal for use in 3 phase inverters, variable speed motor drives, elevators, escalators, and automation equipment.

This TE Connectivity Corcom BCF EMI Filter series is recognized globally for providing effective EMI/RFI filtering solutions suitable for various industrial and commercial power applications. Discover the full range of TE Connectivity electronic components in EnvMart’s Power Line Filters category to meet your EMC compliance needs.
