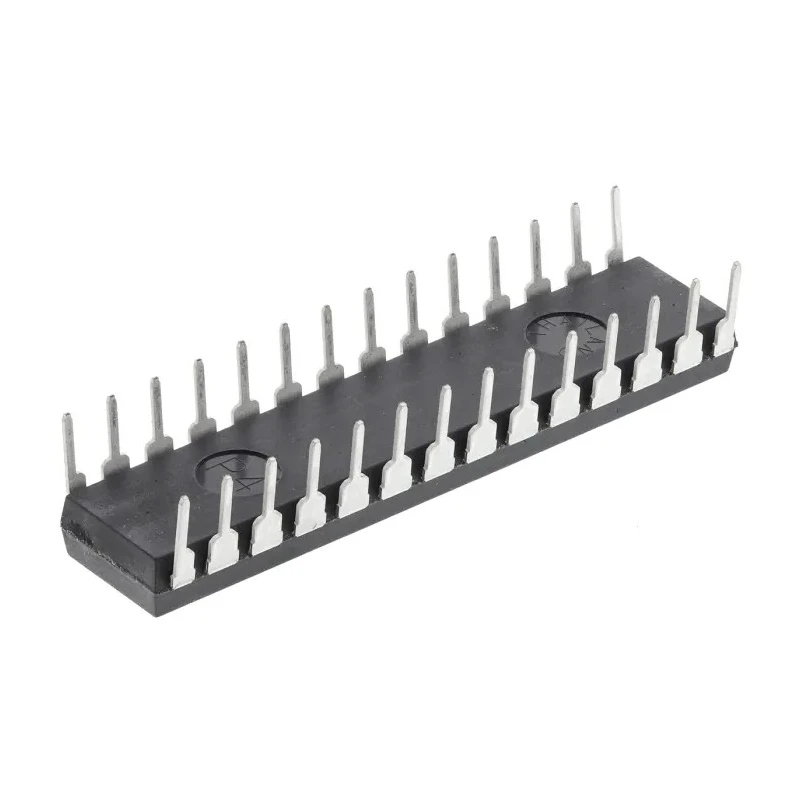

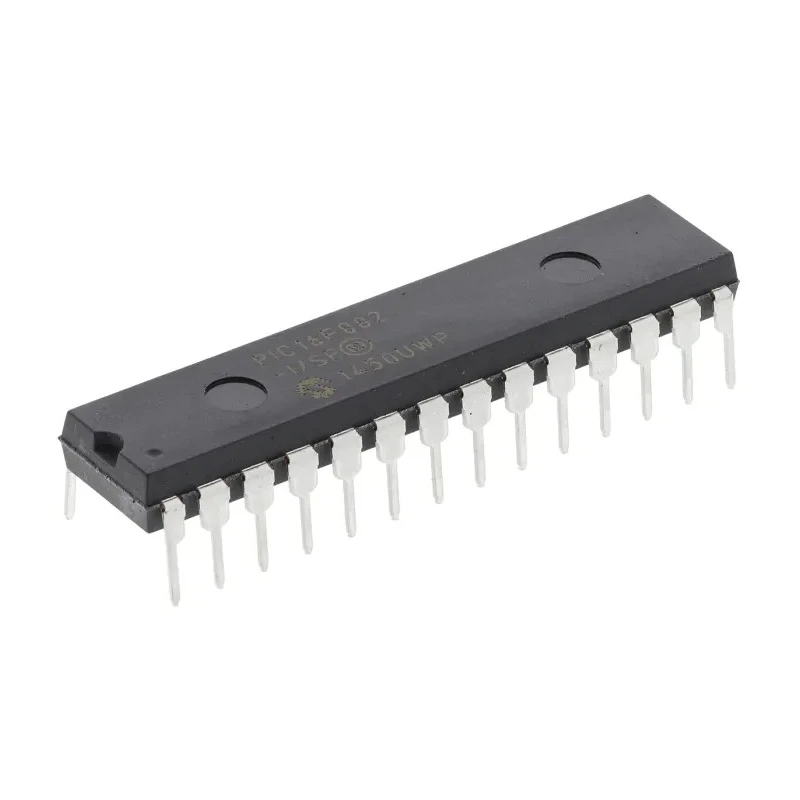

Microchip 8-bit PIC Microcontroller PIC16F882-I/SP, 20 MHz Clock, 3.5kB Flash, 28-Pin SPDIP

Microchip PIC16F882-I/SP is a high-performance 8-bit PIC microcontroller designed for diverse embedded system applications. It operates at a maximum clock frequency of 20 MHz and includes 3.5kB of Flash memory allowing reliable program storage and execution. This device is implemented in a 28-pin SPDIP package with through-hole mount type facilitating ease of prototyping and assembly.

The microcontroller provides 24 programmable input/output pins making it adaptable for a variety of interfacing needs. It is powered by a voltage range from 2V to 5.5V with a maximum power dissipation of 800mW ensuring efficient energy consumption in embedded applications. Its operating temperature range of -40°C to 85°C supports demanding industrial environments.

Equipped with 128 bits of RAM and a 10-bit ADC module supporting 11 input channels, the PIC16F882-I/SP is suitable for precision analog to digital conversion tasks. It features communication interfaces including Enhanced Universal Synchronous Asynchronous Receiver Transmitter (EUSART) and Master Synchronous Serial Port (MSSP) compatible with SPI and I2C standards for flexible device communication.

The microcontroller implements the RISC (Reduced Instruction Set Computing) architecture, featuring 35 instructions and an 8-level deep hardware stack. It incorporates essential embedded system functions such as Power-On Reset (POR), Brown-Out Reset (BOR), Power-Up Timer (PWRT), Oscillator Start-Up Timer (OST), and Watchdog Timer (WDT) to enhance reliability and robustness.

Additional peripherals include two analog comparators, multiple timers (two 8-bit and one 16-bit), and capture/compare/PWM modules for advanced control applications. The PIC16F series is known for its factory calibrated oscillator providing ±1% clock accuracy without external components.

Features 28-pin SPDIP package with 24 programmable I/Os for versatile interfacing. Operates with supply voltage ranging from 2V to 5.5V for wide power adaptability. Equipped with 128-bit RAM and 11-channel 10-bit ADC for accurate signal processing.

Includes enhanced peripherals such as EUSART and MSSP interfaces for communication. Operating temperature from -40°C to 85°C suitable for industrial environments. Power dissipation capped at 800mW ensuring efficient operation.

Compact form factor with dimensions 35.56mm length, 7.49mm width, and 3.81mm height. Built on RISC architecture with 35 instruction set and 8-level hardware stack for efficient processing. Features important safety and reliability functions: Power-On Reset, Brown-Out Reset, and Watchdog Timer.

Program memory type is FLASH for reprogrammability and durability.

This microcontroller family supports numerous embedded design applications in Industrial, Consumer Electronics, Automotive (non-automotive grade in this case), and Communication systems. The PIC16F882-I/SP model offers a balance of performance, low power consumption, and flexible I/O features essential for modern microcontroller use cases.
