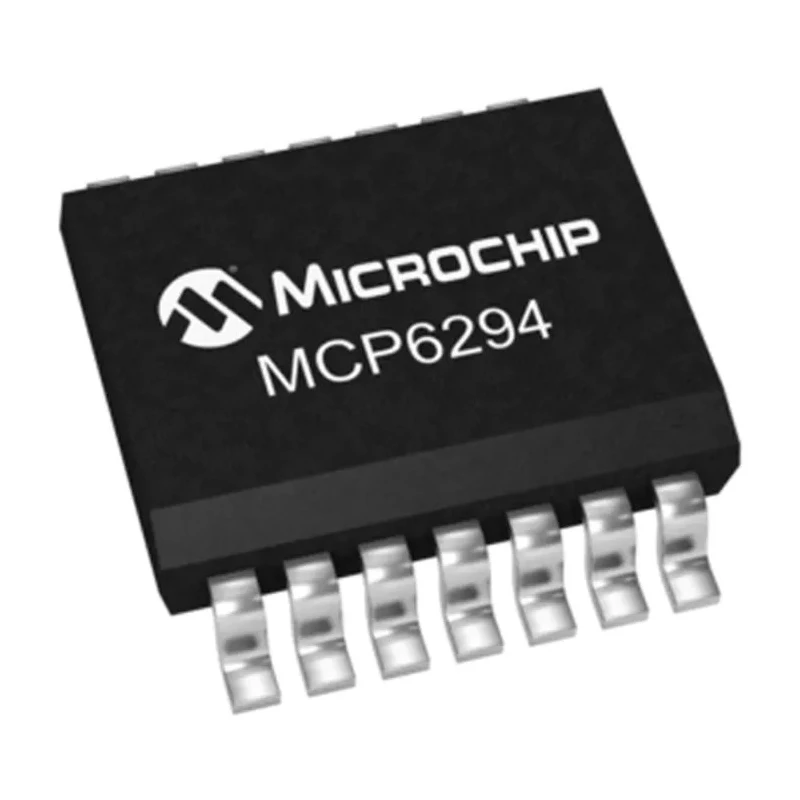

Microchip Operational Amplifier 10 MHz 14-Pin SOIC Surface Mount 2.4-6V MCP6294-E/SL

Microchip MCP6294-E/SL is a high-performance operational amplifier designed for precision analog signal processing in industrial and automotive electronics. It features four independent amplifier channels integrated into a 14-pin SOIC surface mount package suitable for compact PCB designs. With a gain bandwidth product of 10 MHz, the amplifier offers fast response times ideal for dynamic signal applications.

This device operates with a supply voltage range of 2.4 V to 6 V, making it versatile for various power conditions. The extremely low input bias current of 1 pA and input offset voltage of ±5 mV enable accurate amplification of low-level signals. Its operating temperature span from -40°C to 125°C facilitates deployment in harsh automotive and industrial environments.

The slew rate of 7 V/µs supports quick voltage transitions, and the output current of 25 mA allows it to drive resistive and capacitive loads effectively. Its compact SOIC package dimensions (8.65 mm length, 3.9 mm width, 1.5 mm height) aid space-efficient PCB layouts.

This operational amplifier series, including MCP6291, MCP6292, MCP6293, MCP6294, and MCP6295, is widely used in precision instrumentation, signal conditioning, data acquisition systems, automotive sensors, and control systems. The MCP6294-E/SL model meets the AEC-Q100 automotive standard, ensuring high reliability and quality in automotive applications.

Designed by Microchip Technology, this component is essential for electronic engineers requiring high accuracy and stability in analog circuits for automotive, industrial control, and instrumentation purposes.

Features 4 independent channels in a single SOIC package. Gain Bandwidth Product (GBP) is 10 MHz ensuring fast amplifier response. Input bias current is extremely low at 1 pA for precision applications. Operating temperature range extends from -40°C to 125°C for automotive and industrial conditions.

Input offset voltage is ±5 mV, suitable for accurate signal conditioning. Slew rate of 7 V/µs allows for rapid output voltage changes. Output current capability of 25 mA supports various load requirements. Compact dimensions of 8.65mm length, 3.9mm width, and 1.5mm height for PCB space-saving.

Complies with Automotive Standard AEC-Q100 ensuring reliability in automotive electronics. Explore more Microchip Operational Amplifiers and related semiconductor components at EnvMart for your industrial and automotive electronics needs.
