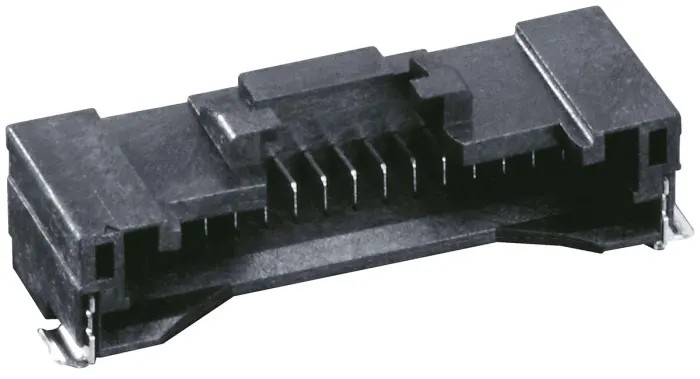

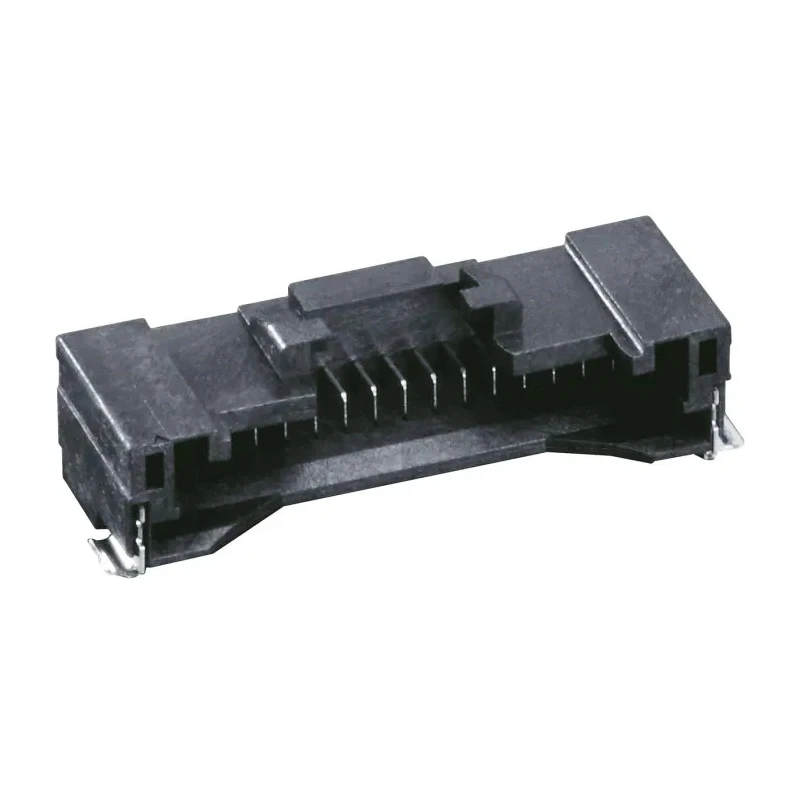

Hirose DF50 Series Right Angle Surface PCB Header 16 Contacts 1 mm Pitch 1 Row Shrouded DF50
Specifications
| Country of Origin | Malaysia |
|---|---|
| Voltage | 100V |
| Brand | Hirose |
| Orientation | Right Angle |
| Current | 1A |
| Model | DF50 |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Brass |
| Series | DF50 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -35°C |
| Number of Rows | 1 |
| Pitch | 1mm |
| Contact Plating | Gold |
| Number of Contacts | 16 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Features 16 gold-plated brass contacts for optimal conductivity.
- 1 mm pitch spacing reduces occupied PCB area efficiently.
- Shrouded design with a right angle orientation ensures secure mating and protection.
- Housing made of black UL94V-0 liquid crystal polymer with thick walls for durability.
- Positive locking latch mechanism prevents accidental disconnection under vibration.
- Supports operating temperatures from -35°C to 85°C for versatile applications.
- Surface mount type designed for easy PCB assembly.
- Suitable for current rating of 1A and voltage up to 100V.
Product Description
Hirose DF50 Series Right Angle Surface PCB Header DF50 provides a reliable 16-contact wire-to-board connection designed for space-saving PCB assemblies. This model features a fine 1 mm pitch in a single row with a shrouded, right angle surface mount housing made from liquid crystal polymer (LCP) compliant to UL94V-0, ensuring excellent flame retardant properties and mechanical strength. The contacts are brass material plated with gold, offering superior electrical conductivity and corrosion resistance, suitable for 1A current and maximum voltage of 100V.
The header incorporates a positive locking latch mechanism providing an audible click when mated for secure attachment, ensuring durability even in high vibration environments. Its mating depth is engineered to prevent insertion damage and mechanical stresses. Operating temperature ranges from -35°C up to 85°C enable this connector to withstand demanding industrial and commercial conditions.
Designed for surface mount technology (SMT), this PCB header is ideal for compact electronics such as LCD and digital TVs, notebook PCs, wireless LAN devices, industrial controllers, office equipment, car navigation systems, and automotive audio setups. It offers a robust connection system supporting wire-to-board applications with ease.
16 gold-plated brass contacts ensure reliable signal transmission. Compact 1 mm pitch minimizes PCB real estate. Shrouded housing for protection and mechanical stability. Right angle orientation for versatile PCB layout configurations.
Positive locking latch for secure mating and vibration resistance. Liquid Crystal Polymer housing offers high durability and flame retardance. Surface mount type facilitates automated PCB assembly. Operating temperature range from -35°C to 85°C suits diverse environments.
Rated for 1A current and 100V voltage applications.
This Hirose DF50 Series PCB Header is made in Malaysia and represents a high-performance solution suitable for industrial, commercial, and consumer electronic applications. Explore EnvMart’s wide range of electronic components for compatible connectors and accessories to complete your assemblies efficiently.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 1A.
The maximum voltage for this header is 100V.
The contact pitch size is 1 mm, which helps to minimize the occupied PCB area.
The housing is made from liquid crystal polymer (LCP) that complies with UL94V-0, providing excellent flame retardant properties.
This model features 16 gold-plated brass contacts for optimal conductivity.
The operating temperature range is from -35°C to 85°C, making it suitable for various applications.
It uses a solder termination type for secure connections.
This header features a right angle orientation, which allows for versatile PCB layout configurations.
Yes, it incorporates a positive locking latch mechanism that provides an audible click when mated, ensuring secure attachment.
This PCB header is suitable for applications in compact electronics such as LCD and digital TVs, notebook PCs, and automotive audio setups.
It features a wire-to-board connector system, designed for reliable connections in PCB assemblies.
This product is manufactured in Malaysia.
