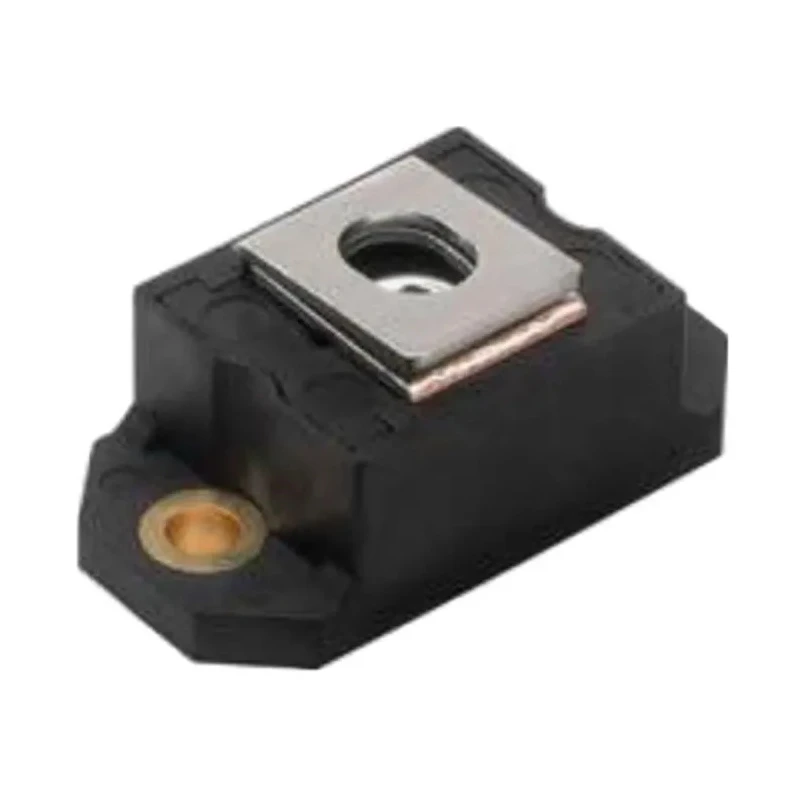

Vishay 30 V 240 A Schottky Rectifier Schottky 2-Pin Panel Mount HALF-PAK VS-242NQ030PBF
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 7.3mm |
| Brand | Vishay |
| Height | 17.5mm |
| Length | 40mm |
| Model | VS-242NQ030PBF |
| Width | 21mm |
| Mount Type | Panel |
| Series | VS-242NQ |
| Maximum Operating Temperature | 150°C |
| Package Type | HALF-PAK |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | UL approved file E222165 |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 240A |
| Peak Reverse Repetitive Voltage Vrrm | 30V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 1120mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 27000A |
| Maximum Forward Voltage Vf | 450mV |
Key Features
- The rectifier features a fast switching Schottky diode configuration for low forward voltage drop.
- It comes in a durable HALF-PAK package with panel mount type for easy integration.
- The device operates reliably within a temperature range of -55°C to 150°C.
- It has a peak non-repetitive surge forward current capacity of 27000 A, ensuring robust performance under transient conditions.
- Forward voltage is rated at a maximum of 450 mV for efficient conduction.
- The rectifier is UL approved under file E222165 for safety compliance.
- Compact physical dimensions include a length of 40 mm, width of 21 mm, height of 17.5 mm, and diameter of 7.3 mm.
Product Description
Vishay VS-242NQ030PBF Schottky Rectifier is a high-performance semiconductor diode optimized for fast switching and low power loss applications in electronic circuits and power supplies.
This 2-pin rectifier comes in a HALF-PAK package with panel mount type, designed for easy mechanical assembly and reliable thermal management.
Key electrical specifications include a maximum continuous forward current of 240 A and a peak reverse repetitive voltage of 30 V, making it suitable for demanding power rectification tasks.
The device features a low forward voltage drop of 450 mV and can handle peak non-repetitive forward surge currents up to 27000 A, ensuring durability in transient conditions. Operating temperature spans from -55°C to 150°C, allowing it to function in harsh industrial environments.
Compact dimensions (40 mm length, 21 mm width, 17.5 mm height, and 7.3 mm diameter) enable integration into space-constrained electronic systems. The rectifier is certified UL approved under file E222165, assuring compliance with recognized safety standards.
The Schottky diode configuration offers rapid switching speed and low thermal resistance. Its robust design suits industrial, automotive (non-automotive standard), power electronics, and laboratory applications. Panel mount HALF-PAK packaging facilitates secure installation in power modules and PCB assemblies.
This product is ideal for applications requiring efficient power conversion, low loss rectification, and reliable performance under high current loads. Explore more Vishay semiconductor components and Schottky rectifiers at EnvMart for your industrial and electronics manufacturing needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this model is 240 A.
The peak reverse repetitive voltage rating is 30 V.
The maximum forward voltage drop is rated at 450 mV.
It can handle a peak non-repetitive forward surge current of up to 27000 A.
The dimensions are 40 mm in length, 21 mm in width, and 17.5 mm in height, with a diameter of 7.3 mm.
It operates reliably within a temperature range of -55°C to 150°C.
This rectifier features a panel mount type for easy integration.
The rectifier has a single diode configuration.
Yes, it is UL approved under file E222165 for safety compliance.
It is suitable for industrial, automotive (non-automotive standard), power electronics, and laboratory applications.
The rectifier comes in a HALF-PAK package type.
The peak reverse current is rated at 1120 mA.
