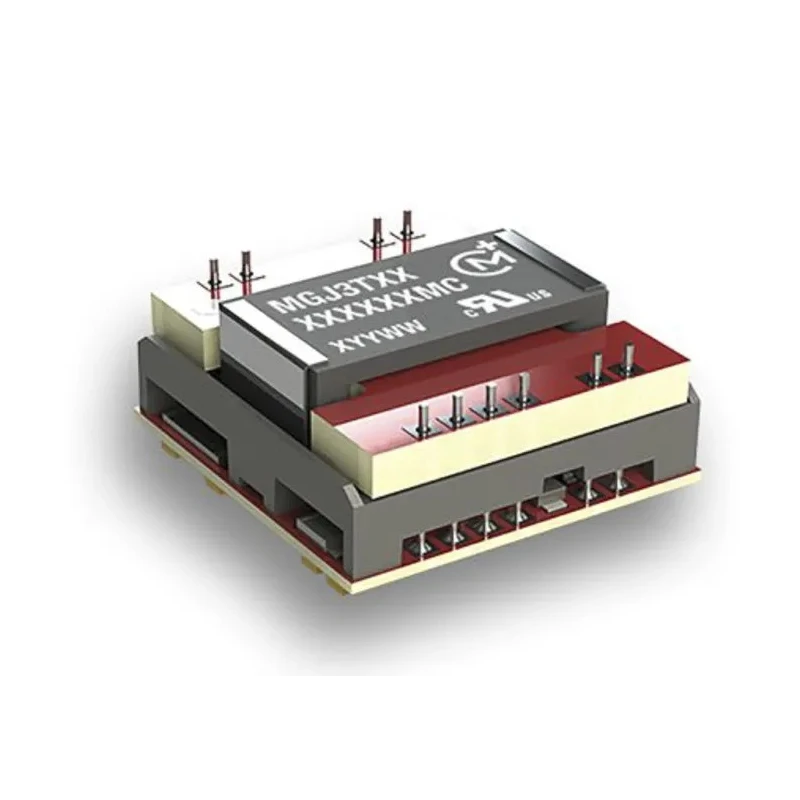

Murata Power Solutions DC/DC Converter, 12V dc Input, 15V dc Output, 120 mA, 16-Pin Surface Mount MGJ3
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Converters / DC-DC Converters Murata Power Solutions MGJ3 DC/DC Converter, 15V d |
| Brand | Murata Power Solutions |
| Efficiency | 82% |
| Length | 31.24mm |
| Model | MGJ3 |
| Depth | 14.65mm |
| Gross Weight | 10.7g |
| Width | 22.61mm |
| Series | MGJ3 |
| Maximum Operating Temperature | 105°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 3 |
| Maximum Input Voltage | 12V dc |
| Standards/Approvals | RoHS |
| Number of Pins | 16 |
| Output Voltage 1 | 15V dc |
| Output Current 1 | 120mA |
| Isolation Voltage | 5.2kV dc |
| 3 outputs configurable for all gate drive applications | +15V/-5V, +15V/-10V & +20V/-5V outputs |
Key Features
- Suitable for gate drive circuits of IGBTs, Silicon Carbide, and Mosfets in bridge circuits.
- Offers 5.2kV dc isolation voltage in a 16-pin surface mount package.
- Operates within -40°C to 105°C temperature range, suitable for harsh environments.
- Delivers 82% efficiency to minimize power loss during operation.
- These DC-DC converters offer a choice of asymmetric output voltages allowing optimum drive levels for best system efficiency and EMI.
- Home/Electronic Components, Power & Connectors/Power Supplies & Transformers/Voltage Converters/DC-DC Converters
- Murata Power Solutions MGJ3 DC/DC Converter, 15V dc/ 120 mA, 12V dc Input, 105 °C Max Temp -40 °C Min Temp, 16-PinRS Stock No.: 852-6799Brand: Murata Power SolutionsManufacturers Part No.: MGJ3T12150505MC-R7
- CollaborateJOIN FOR FREENo hidden fees!Download and use our DesignSpark software for your PCB and 3D Mechanical designsView and contribute website content and forumsDownload 3D Models, Schematics and Footprints from more than a million prod
Product Description
Murata Power Solutions MGJ3 DC/DC Converter is a 3W isolated triple output converter designed for applications requiring high isolation voltage and dv/dt immunity. With an input voltage of 12V dc and a regulated 15V dc output at 120 mA, it is optimized for industrial and electronic power management systems.
Its three configurable outputs (+15V/-5V, +15V/-10V, +20V/-5V) allow precise control in gate drive circuits for IGBTs, Silicon Carbide, and Mosfet devices in bridge circuits and inverters, enhancing overall system performance.
Featuring a robust isolation voltage of 5.2kV dc and an ultra-low coupling capacitance of 15pF, this surface mount package with 16 pins is well suited for high voltage environments requiring compact module footprint.
The converter maintains stable operation across a wide temperature range from -40°C minimum to 105°C maximum, supporting demanding industrial applications. Efficiency at 82% helps reduce thermal dissipation and improve energy savings in continuous operation scenarios.
Ideal for powering high side and low side gate drive circuits. Patents pending for enhanced performance and reliability design. RoHS compliant device ensuring environmental safety. Characterised for partial discharge performance and dv/dt immunity up to 80kV/μS at 1.5kV.
This MGJ3 series DC/DC converter is broadly used in industrial controls, power electronics, motor drives, and inverter applications where reliable power isolation and multiple output voltages are critical.
Explore more DC/DC Converters by Murata Power Solutions and related power management products at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage for this model is 12V dc.
It provides a maximum output current of 120 mA.
The outputs can be configured to +15V/-5V, +15V/-10V, and +20V/-5V.
This DC/DC converter has an efficiency rating of 82%.
It features a robust isolation voltage of 5.2kV dc.
It operates within a temperature range of -40°C to 105°C.
The MGJ3 model has 16 pins.
The dimensions are 31.24 mm in length, 22.61 mm in width, and 14.65 mm in depth.
The gross weight of this model is 10.7 g.
Yes, it is a RoHS compliant device, ensuring environmental safety.
It is suitable for gate drive circuits of IGBTs, Silicon Carbide, and Mosfets in bridge circuits and inverters.
This model comes in a surface mount package type.
