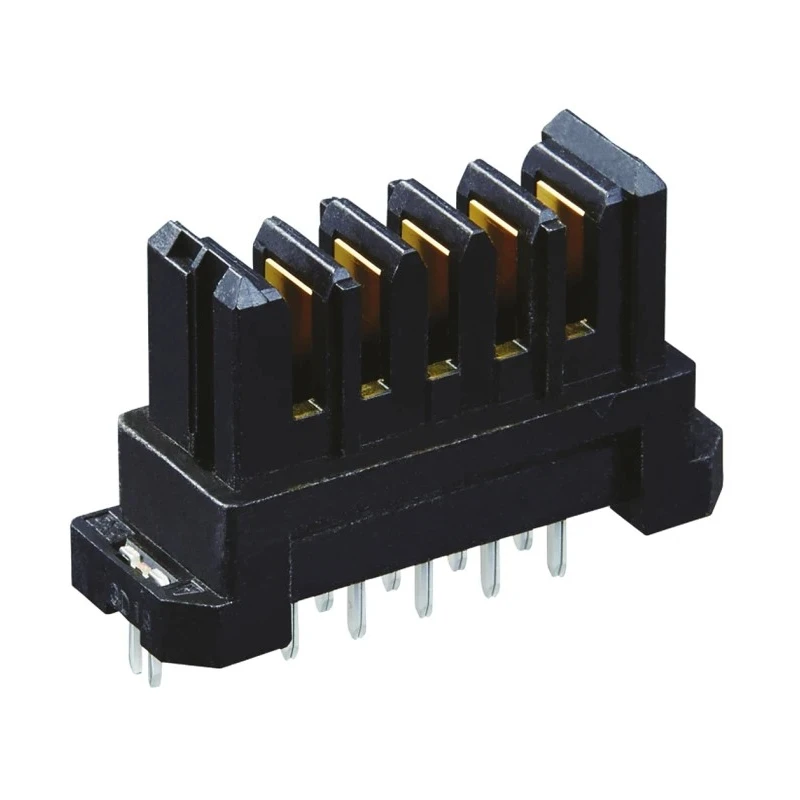

Hirose FunctionMAX FX30B Series Straight Through Hole PCB Header, 4 Contacts, 3.81 mm Pitch, 1 Row, Shrouded FX30B

Hirose FX30B Series Straight Through Hole PCB Header is a high-performance board-to-board connector featuring a 3.81 mm pitch and 4 contacts in a single row. This shrouded male PCB header integrates a unique floating contact structure designed to absorb mounting misalignment errors, offering safe and accurate mating with a degree of play in the XY and Z directions. The floating contacts self-centre, prevent solder cracking, and eliminate the need for costly rework.

Equipped with large mating guides and molded alignment posts, the FX30B header allows ±1.3 mm movement in XY directions, making connector insertion easier and preventing reverse insertion errors through additional keyed features. Robust metal fittings on either side protect the PCB from deformation during assembly or operation.

The contacts are manufactured from copper alloy and plated with gold, providing a multi-point contact system that ensures high electrical reliability. Each contact can carry currents between 13 and 17A, supporting demanding industrial and commercial applications such as broadcast equipment, base station transceivers, measuring instruments, and medical devices.

The connector operates efficiently over a wide temperature range, from -55°C to 105°C, and supports up to 250V. Its termination is by solder, and the connector is designed for through-hole mounting with a tail pin length of 3.3 mm and mating pin length of 9.6 mm. This product is of Japanese origin and supplied new.

Hirose's FunctionMAX range, including the FX30B series, targets high-performance industrial needs, combining mechanical robustness with electrical precision. These connectors are ideal for applications demanding reliable, high-current, board-to-board connections with misalignment compensation features.

Floating structure absorbs mounting misalignment for reliable connections. Self-aligning and self-guiding structure simplifies mating. Robust metal fittings secure attachment to PCB. Multi-point contact structure enhances electrical reliability.

Supports high current capacity of 13 to 17A per contact. Low insertion and extraction force for easy handling. Effective mating length of 2 mm ensures contact reliability. Suitable for broadcast equipment and industrial instrumentation.

Operating temperature range from -55°C to 105°C for durability.
