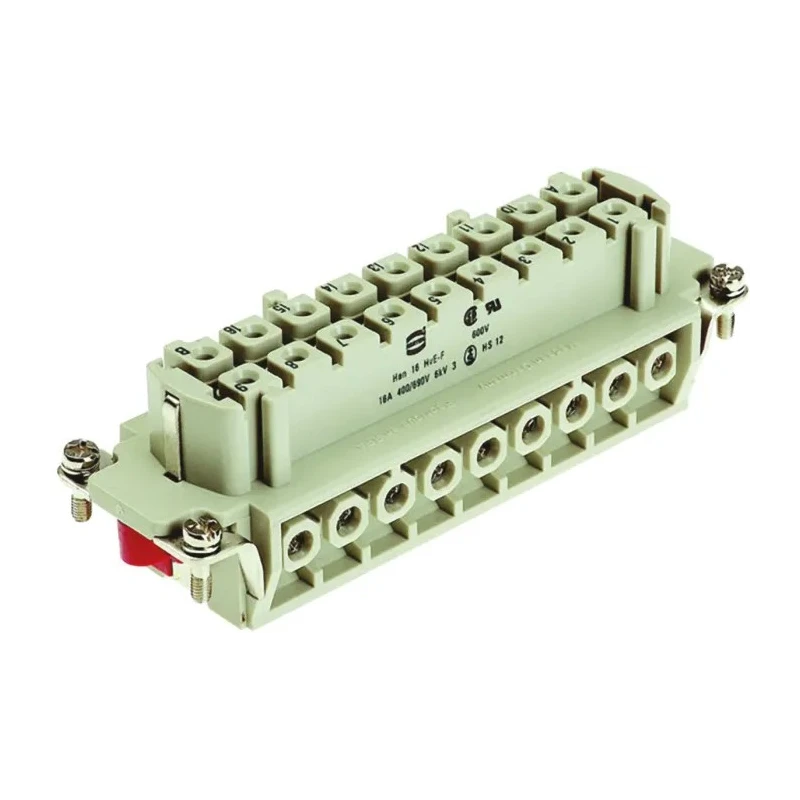

HARTING Heavy Duty Power Connector Insert 16A, Han Hv E Series Female 16 Contacts 09340162701
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 690V |
| Brand | HARTING |
| Orientation | Straight |
| IP Rating | IP65 |
| Mount Type | Cable |
| Contact Material | Copper Alloy |
| Current Rating | 16A |
| Series | Han Hv E |
| Sub Type | Connector Insert |
| Number of Rows | 1 |
| For Use With | Heavy Duty Power Connector |
| Pole Format | 16 |
| Contact Plating | Silver |
| Number of Contacts | 16 |
| Connector Gender | Female |
| Minimum Wire Size mm² | 0.75mm² |
| Maximum Wire Size mm² | 2.5mm² |
Key Features
- Suitable for use with heavy duty power connectors in industrial environments.
- Constructed with copper alloy contacts plated in silver for excellent conductivity and corrosion resistance.
- IP65 rated protection ensures dust tight and water resistant performance.
- Designed for cable mount with straight orientation for efficient installation.
- Compatible with Han Hv E series connectors, featuring 1 row and 16 poles.
- Supports wire sizes from 0.75 mm² to 2.5 mm² for diverse cabling options.
- Durable polycarbonate insert module suitable for over 500 mating cycles.
- Operates in a wide temperature range from -40 to +125°C, ideal for harsh conditions.
Product Description
HARTING 09340162701 Heavy Duty Power Connector Insert is a high-quality connector insert designed for industrial power connection needs. It belongs to the Han Hv E Series and features a female connector type with 16 contacts, rated for a current of 16A and voltage up to 690V.
Constructed with copper alloy contacts plated with silver, it ensures excellent electrical conductivity and durability. The connector insert is designed for cable mounting with a straight orientation and supports wire sizes from 0.75 mm² to 2.5 mm². Its IP65 rating protects against dust and water, making it suitable for demanding industrial environments.
This product is part of the Han-Modular series, which provides flexible insert configurations within a single connector assembly, accommodating signal, power, and pneumatic lines. The insert modules are made of robust polycarbonate material, capable of withstanding over 500 mating cycles and temperature ranges from -40 to +125°C.
HARTING connectors are widely used in industrial, manufacturing, and heavy machinery applications where reliable power connection is critical. The Han Hv E series connectors are known for their durability, flexibility, and ease of use in harsh conditions.
Suitable for industrial applications requiring high current and voltage ratings. Dust and water resistant IP65 protection enhances reliability. Silver-plated copper alloy contacts ensure excellent conductivity. Compatible with Han Hv B variants and other modular connectors.
Supports crimp or screw terminations for reliable wiring. Resistant to temperature extremes from -40 to +125°C.
For professional and industrial users, this connector insert offers a dependable solution for power distribution and control systems. Explore the HARTING range for complementary accessories and installation tools to optimize your setup. Find other high-performance power connectors and modules in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector insert has a current rating of 16A and is rated for a voltage of up to 690V.
It has an IP65 rating, providing protection against dust and water, making it suitable for demanding industrial environments.
The insert supports wire sizes ranging from 0.75 mm² to 2.5 mm², accommodating diverse cabling options.
The contacts are constructed from copper alloy and plated with silver for excellent conductivity and corrosion resistance.
This model features 16 contacts arranged in a single row.
It operates effectively within a wide temperature range from -40 to +125°C, suitable for harsh conditions.
Yes, it is designed for cable mounting with a straight orientation for efficient installation.
This connector insert is part of the Han Hv E Series, known for its heavy-duty applications.
This insert has a female connector gender.
It is capable of withstanding over 500 mating cycles, ensuring longevity in use.
It supports both crimp and screw terminations for reliable wiring.
The country of origin for this connector insert is India.
