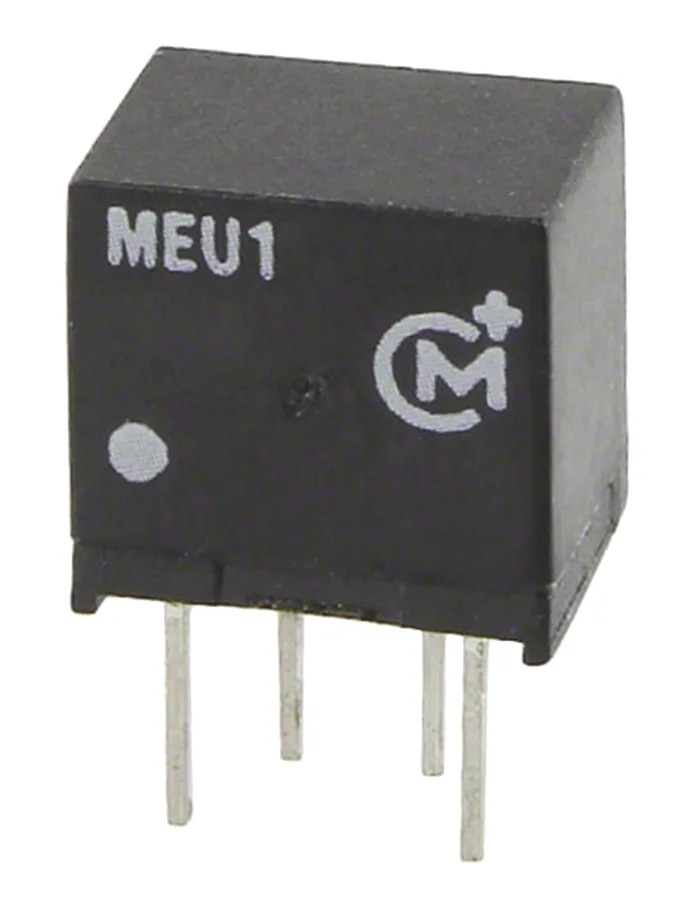

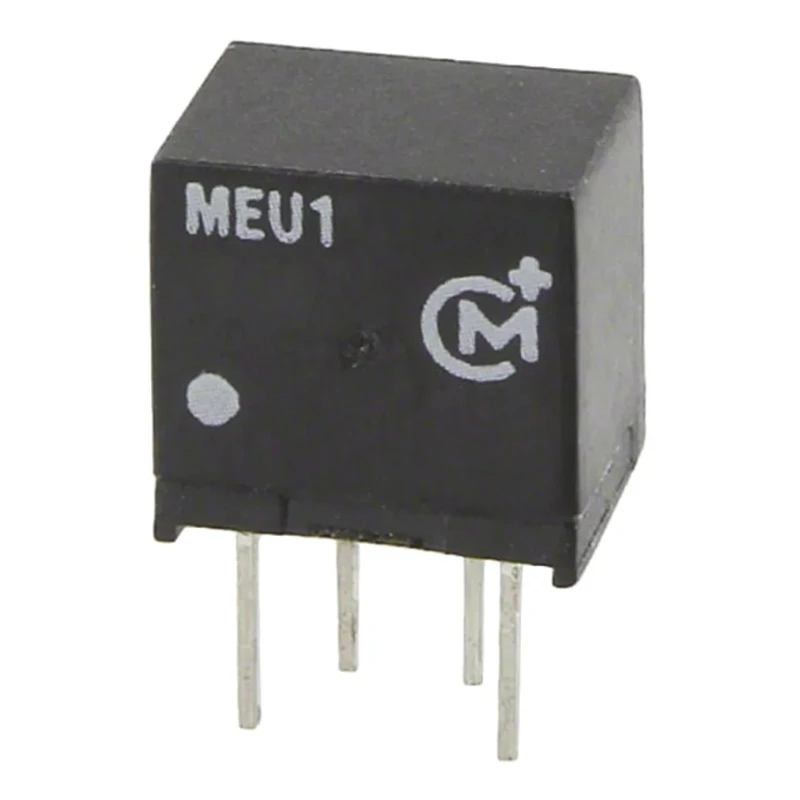

Murata Power Solutions MEU1 Single Output 2W DC/DC Converter 4.5-5.5V Input Through Hole
Specifications
| Country of Origin | China |
|---|---|
| Brand | Murata Power Solutions |
| Efficiency | 81% |
| Length | 8.3mm |
| Model | MEU1 |
| Depth | 7.95mm |
| Gross Weight | 4.3g |
| Width | 6.1mm |
| Mount Type | Through Hole |
| Series | MEU1 |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 2762000h |
| Number of outputs | 1 |
| Ripple and Noise | 50mV Pk-Pk |
| Maximum Output Power | 2W |
| Maximum Input Voltage | 5.5V dc |
| Standards/Approvals | RoHS, CRE, UL |
| Minimum Input Voltage | 4.5V |
| Number of Pins | 4 |
| Output Voltage 1 | 3.3V |
| Output Voltage Adjustment Range | 4.5/5.5 V |
| Isolation Voltage | 1kV dc |
| Output Current 2 | 303mA |
Key Features
- Delivers isolated single output with 1kV DC isolation voltage.
- Operates efficiently up to 81% with 2 watt output power.
- Compact SIP package with dimensions 8.3 x 6.1 x 7.95 mm.
- Wide operating temperature range from -40°C to 85°C suitable for industrial environments.
- Low ripple and noise output at 50 mV peak-to-peak ensures signal stability.
- MTBF rated at over 2.76 million hours for high reliability.
- 4-pin design optimized for through hole PCB mounting.
- UL, RoHS, and CRE approved ensuring compliance with safety and environmental standards.
Product Description
Murata Power Solutions MEU1 MEU1S0505ZC is a high-reliability single output 2 watt DC/DC converter featuring a 4.5 to 5.5 volt input voltage range with through hole mounting in a SIP style package. It delivers an output voltage of 3.3 volts and supports isolated output with 1kV DC isolation, facilitating noise reduction and safe electrical separation in electronic circuits.
This series operates efficiently up to 81% and maintains output quality with only 50 mV peak-to-peak ripple and noise, making it suitable for sensitive industrial and commercial applications. Its robust MTBF of approximately 2,762,000 hours ensures long-term reliability.
The compact size of 8.3 mm length, 6.1 mm width, and 7.95 mm depth supports high power density designs in constrained PCB spaces. Operating temperature ranges from -40°C to 85°C, allowing use in harsh environments and various industrial, laboratory, and commercial settings.
Certified to international standards including UL and RoHS, this converter meets safety and environmental regulations. Through hole pin configuration allows easy assembly and integration with existing PCB layouts.
Single isolated output with 1kV galvanic isolation for noise reduction. Compact SIP package suitable for minimal PCB footprint. Wide temperature range operation supports industrial application. High MTBF ensures product longevity and reliability.
Low ripple and noise output enhances system performance. UL, RoHS, and CRE certifications for compliance and quality assurance. Ideal for power supply circuits requiring space-efficient isolated conversion.
This DC/DC Converter is utilized in a broad range of industrial tools, measuring instruments, telecommunications equipment, and embedded systems requiring compact, robust power regulation. It aids engineers in optimizing system size and efficiency while meeting demanding operational conditions.
Explore more high-quality power solutions and converters at EnvMart for industrial, laboratory, and electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for the MEU1 is between 4.5V and 5.5V DC.
This model delivers a maximum output power of 2 watts.
The output voltage of this converter is 3.3 volts.
The efficiency of this model is rated at 81%.
The dimensions of this unit are 8.3 mm in length, 6.1 mm in width, and 7.95 mm in depth.
The MEU1 features an isolation voltage of 1kV DC.
This converter operates within a temperature range of -40°C to 85°C.
The ripple and noise output of this unit is 50 mV peak-to-peak.
The mean time between failures (MTBF) for this model is approximately 2,762,000 hours.
This model supports through hole mounting with a 4-pin design.
The MEU1 is certified to UL, RoHS, and CRE standards, ensuring compliance with safety and environmental regulations.
This DC/DC converter can be used in industrial tools, measuring instruments, telecommunications equipment, and embedded systems.
