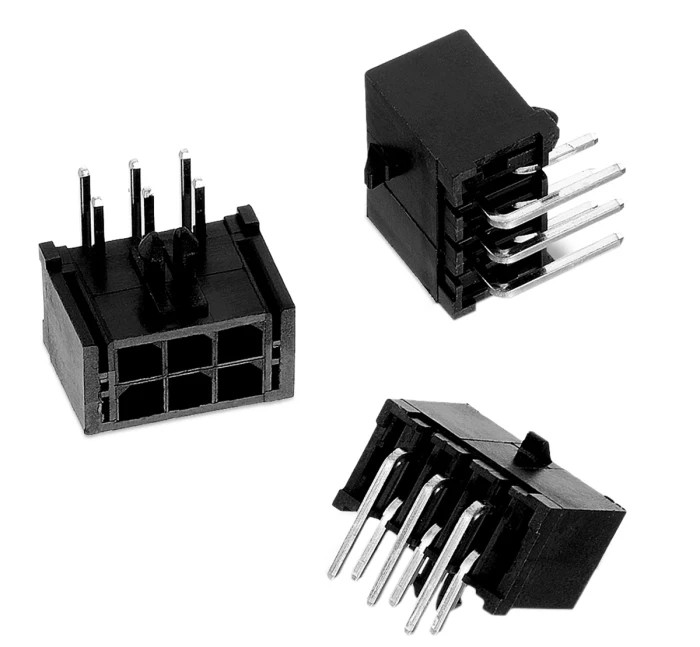

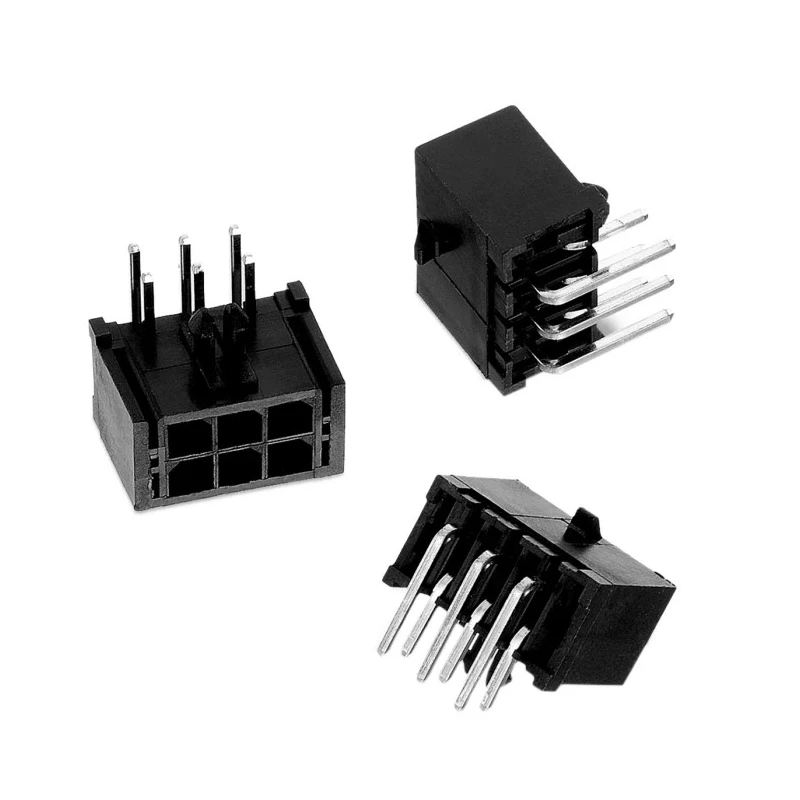

Wurth Elektronik WR-MPC3 Series Right Angle Through Hole PCB Header 16 Contacts 3 mm Pitch 2 Row Shrouded MPC3
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | Wurth Elektronik |
| Orientation | Right Angle |
| Current | 5A |
| Model | MPC3 |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Copper Alloy |
| Series | WR-MPC3 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 3mm |
| Contact Plating | Tin |
| Number of Contacts | 16 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.2mm |
Key Features
- The connector supports a rated current of 5 amperes for reliable electrical performance.
- Constructed with a black UL94-V0 PA9T insulator ensuring high flame retardance.
- Contacts are made of copper alloy with tin plating for enhanced conductivity and corrosion resistance.
- Designed to operate within a temperature range from -40°C to 105°C for diverse environments.
- The connector features a 3.2 mm tail pin length optimized for solder termination.
- Its right angle orientation with board locks enables secure mounting and alignment on PCBs.
- Rated for a maximum voltage of 250 volts, compliant with typical electronic applications.
- Shrouded design offers additional protection against short circuits and mechanical damage.
Product Description
Wurth Elektronik MPC3 is a high-quality series of right angle through-hole PCB Headers designed for robust wire-to-board connector applications. This model features a 3 mm pitch with 16 male contacts arranged in two rows, providing dense connector configurations for compact PCB layouts. The shrouded housing made from liquid crystal polymer with UL94-V0 flame retardant rating ensures durability and safety in electrical environments.
Constructed with copper alloy contacts plated in tin, the connector guarantees reliable conductivity and corrosion resistance, suited for demanding industrial and commercial electronic assemblies. The connector supports a rated current of 5A and rated voltage of 250V, making it suitable for various power levels within control and signal circuits.
The dual-row configuration with right angle orientation incorporates board locks for secure mechanical retention during PCB mounting, optimizing manufacturing efficiency. Its environmental operating range from -40°C to 105°C makes it suitable for harsh and variable temperature conditions.
This Wurth Elektronik MPC3 header is ideal for applications in industrial automation, electronics manufacturing, consumer electronics, and telecommunications. The connector supports a rated current of 5 amperes for reliable electrical performance.
Constructed with a black UL94-V0 PA9T insulator ensuring high flame retardance. Contacts are made of copper alloy with tin plating for enhanced conductivity and corrosion resistance. Designed to operate within a temperature range from -40°C to 105°C for diverse environments.
The connector features a 3.2 mm tail pin length optimized for solder termination. Its right angle orientation with board locks enables secure mounting and alignment on PCBs. Rated for a maximum voltage of 250 volts, compliant with typical electronic applications.
Shrouded design offers additional protection against short circuits and mechanical damage. Explore more Wurth Elektronik PCB connectors and headers on EnvMart for advanced electronic assembly solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a rated current of 5 amperes, ensuring reliable electrical performance.
It is rated for a maximum voltage of 250 volts, making it suitable for typical electronic applications.
The contacts are arranged with a pitch of 3 mm, allowing for compact PCB layouts.
The housing is made from liquid crystal polymer, and the contacts are constructed from copper alloy with tin plating for enhanced conductivity and corrosion resistance.
It operates within a temperature range from -40°C to 105°C, making it suitable for diverse environments.
This connector features 16 male contacts arranged in two rows, providing a dense configuration.
It is designed for solder termination, with a tail pin length of 3.2 mm optimized for this purpose.
This model has a right angle orientation, which helps in secure mounting and alignment on PCBs.
The shrouded design offers additional protection against short circuits and mechanical damage.
It is ideal for applications in industrial automation, electronics manufacturing, consumer electronics, and telecommunications.
The tail pin length is optimized at 3.2 mm for solder termination.
The country of origin for this product is India.
