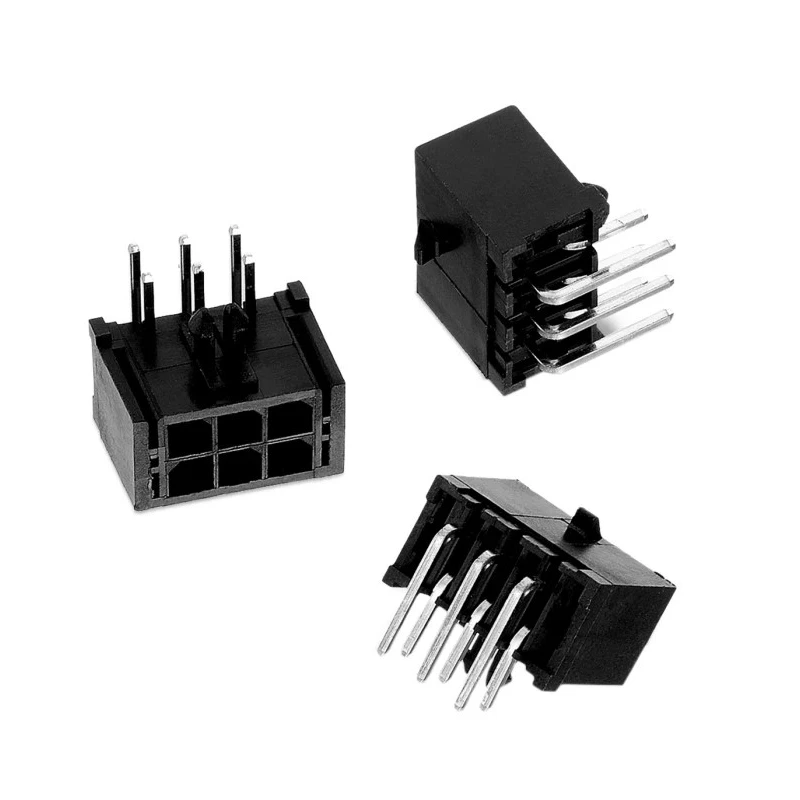

Wurth Elektronik WR-MPC3 Series Right Angle Through Hole PCB Header 14 Contacts 3 mm Pitch 2 Row Shrouded MPC3
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | Wurth Elektronik |
| Orientation | Right Angle |
| Current | 5A |
| Model | MPC3 |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Copper Alloy |
| Series | WR-MPC3 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 3mm |
| Contact Plating | Tin |
| Number of Contacts | 14 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.2mm |
Key Features
- Rated current capacity of 5A ensures reliable power transmission.
- Shrouded connector design enhances safety and polarization.
- Constructed with liquid crystal polymer housing for durability.
- Tin-plated copper alloy contacts provide corrosion resistance.
- Suitable for solder termination through-hole mounting.
- Temperature range from -40°C to 105°C supports diverse environments.
- Right angle orientation facilitates PCB layout flexibility.
- Offers a 3.2 mm tail pin length for secure solder connection.
Product Description
Wurth Elektronik MPC3 series PCB header MPC3 is a dual row, right angle male header connector with 14 contacts spaced at a 3 mm pitch. Designed for through-hole mounting, it features a robust black UL94-V0 rated PA9T liquid crystal polymer housing for enhanced flame retardance and mechanical strength. The shrouded design improves connection safety by preventing misalignment.
The contacts are made of copper alloy with tin plating to ensure excellent conductivity and resistance against oxidation. Rated for 5 amps of current at voltages up to 250 V, this connector meets the demands of electronic and electrical assemblies requiring reliable wire-to-board connections. Operating temperatures ranging from -40°C to 105°C enable use in industrial, automotive, and electronic applications exposed to varying environments.
This male header mates precisely with WR-MPC3 dual row female receptacle housings to complete secure PCB interfacing solutions. Its right angle orientation and compact 3 mm pitch support high-density circuit designs and flexible board layouts.
Key features of this WR-MPC3 series connector include solder termination, board lock design for mechanical stability, and compliance to general electronic component standards. It is ideal for industrial electronics manufacturing, power connectors, communication devices, and embedded systems requiring durable and reliable interconnections.
Rated 5A current capacity at 250 V for dependable power carrying capability. Housing made of UL94-V0 rated liquid crystal polymer for flame retardance. Shrouded male header with 14 contacts arranged in two rows and 3 mm pitch.
Tin plated copper alloy contacts provide corrosion resistance and conductivity. Designed for through-hole solder mounting on printed circuit boards. Operating temperature range from -40°C to +105°C suitable for harsh conditions.
Right angle orientation facilitates space-saving PCB layouts. Tail pin length of 3.2 mm for robust solder joints. Explore the Wurth Elektronik WR-MPC3 series connectors on EnvMart for industrial-grade PCB connector solutions engineered for performance and reliability.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The rated current capacity is 5A, ensuring reliable power transmission.
It operates within a temperature range from -40°C to 105°C, suitable for diverse environments.
The housing is constructed from liquid crystal polymer, which is UL94-V0 rated for flame retardance.
This male header features 14 contacts arranged in two rows.
The contacts are spaced at a 3 mm pitch, facilitating high-density circuit designs.
It uses solder termination for through-hole mounting on printed circuit boards.
The tail pin length is 3.2 mm, providing a secure solder connection.
It supports a voltage rating of up to 250V.
This model is shrouded, which enhances safety and prevents misalignment during connections.
It is suitable for industrial electronics manufacturing, power connectors, communication devices, and embedded systems.
The contacts are made of tin-plated copper alloy, providing corrosion resistance and excellent conductivity.
The connector has a right angle orientation, which facilitates flexible PCB layout designs.
