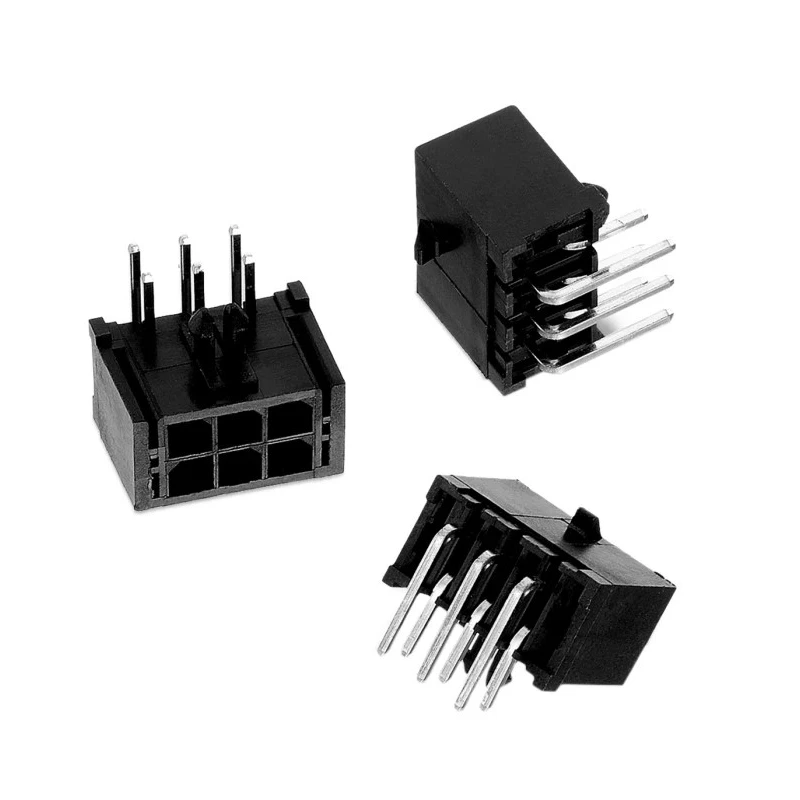

Wurth Elektronik WR- Series Right Angle Through Hole Shrouded Male PCB Header Connector, 10 Contacts, 3 mm Pitch, 2 Row MPC3
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | Wurth Elektronik |
| Orientation | Right Angle |
| Current | 5A |
| Model | MPC3 |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Copper Alloy |
| Series | WR-MPC3 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 3mm |
| Contact Plating | Tin |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.2mm |
Key Features
- The connector features a durable liquid crystal polymer housing providing UL94-V0 flammability rating.
- It supports a current rating of 5A and voltage up to 250V for reliable electrical performance.
- Copper alloy contacts are tin plated for corrosion resistance and solder termination type ensures robust mounting.
- This dual row header connector has a 3.2 mm tail pin length ideal for PCB assembly.
- Operating temperature range spans from -40°C up to 105°C for harsh environment applications.
- The shrouded design offers additional protection and secure mating with corresponding WR-MPC3 series female connectors.
- Suitable for industrial and electronics manufacturing, especially in PCB connector applications requiring right-angle style headers.
Product Description
Wurth Elektronik MPC3 is a shrouded right angle through hole male PCB header connector from the WR-MPC3 series featuring a 3 mm pitch and 10 contacts arranged in two rows. This connector is engineered for wire-to-board applications requiring reliable mechanical locking and electrical conductivity.
The housing is made from black liquid crystal polymer, providing high mechanical strength and UL94-V0 flame retardancy. Copper alloy contacts are tin plated to resist corrosion and ensure stable contacts during soldering and operation.
This connector supports a current rating of 5A and a voltage rating up to 250V, making it suitable for a wide range of electronic circuits in industrial, commercial, and manufacturing equipment. Its termination type is solder with 3.2 mm tail pin length for secure PCB assembly.
Operating temperature ranges from -40°C up to 105°C, enabling use in demanding temperature environments. The shrouded right-angle design optimizes board space and provides secure mating with WR-MPC3 female connectors featuring corresponding dual-row pin layouts.
The connector housing material is liquid crystal polymer, ensuring durability. The pitch between contacts is 3 mm to support fine-pitch PCB layouts. It has a current rating of 5 amps for robust electrical performance. Tin plating on copper alloy contacts prevents oxidation and maintains conductivity.
The two-row configuration offers 10 total contacts for multi-signal applications. Right angle orientation suits vertical PCB mounting and cable routing. Shrouded connector design improves protection and lock-in mating. Wide operating temperature range from -40°C to 105°C for versatile usage.
Ideal for electronics manufacturing, industrial machinery, and electronic component assembly, the Wurth Elektronik WR-MPC3 male header connector is a reliable choice for designers requiring high-quality PCB connectors with secure mechanical and electrical performance.
Explore more in the EnvMart PCB Headers collection to find complementary connectors and accessories tailored for electronics assembly and industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 5A, making it suitable for various electronic circuits.
The connector has a voltage rating of up to 250V, ensuring reliable electrical performance in applications.
The housing is made from liquid crystal polymer, while the contacts are copper alloy with tin plating for corrosion resistance.
The pitch between contacts is 3 mm, which supports fine-pitch PCB layouts.
It operates within a temperature range of -40°C to 105°C, suitable for harsh environments.
This connector features a total of 10 contacts arranged in two rows.
The tail pin length is 3.2 mm, designed for secure PCB assembly.
The connector is shrouded, providing additional protection and secure mating with corresponding connectors.
It uses solder termination, ensuring robust mounting during assembly.
It is suitable for wire-to-board applications in industrial and electronics manufacturing environments.
This model has a right-angle orientation, which is ideal for vertical PCB mounting and cable routing.
The connector is manufactured in India.
