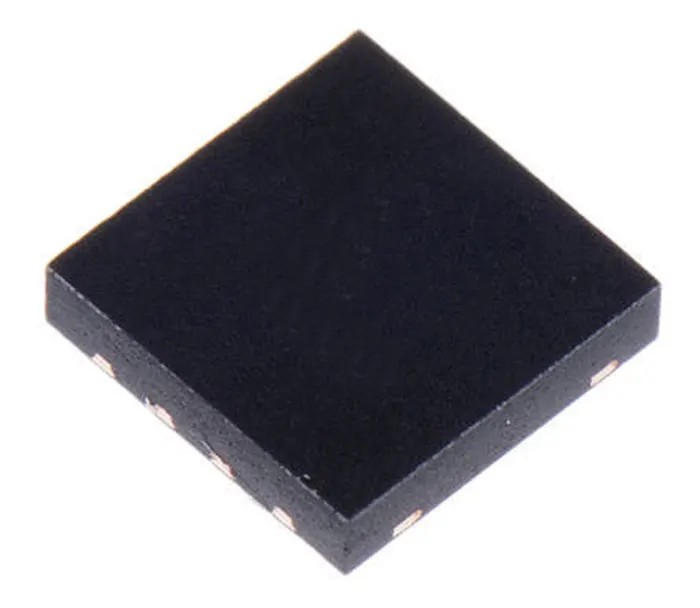

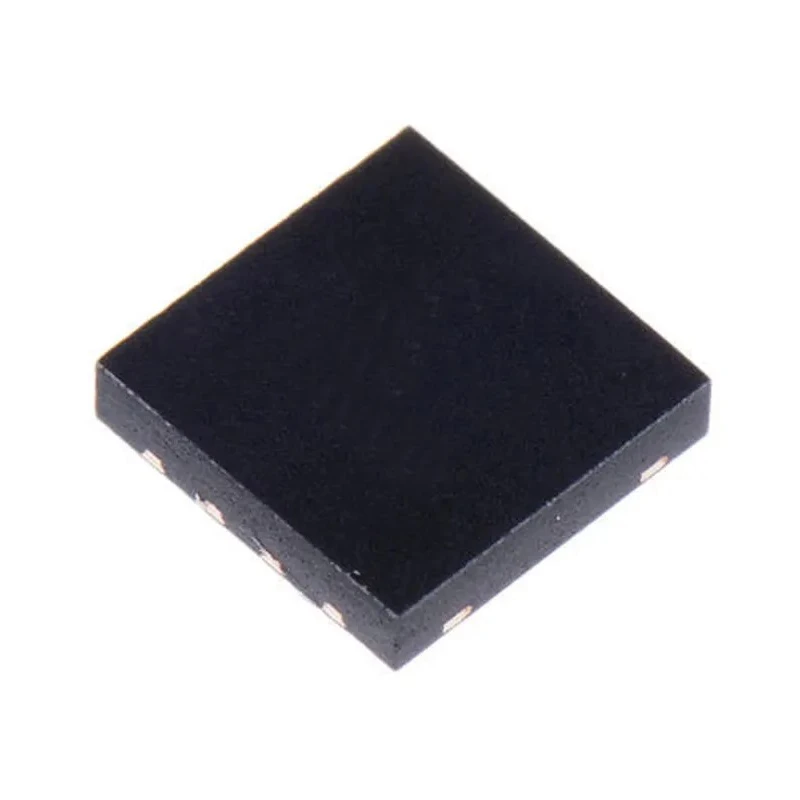

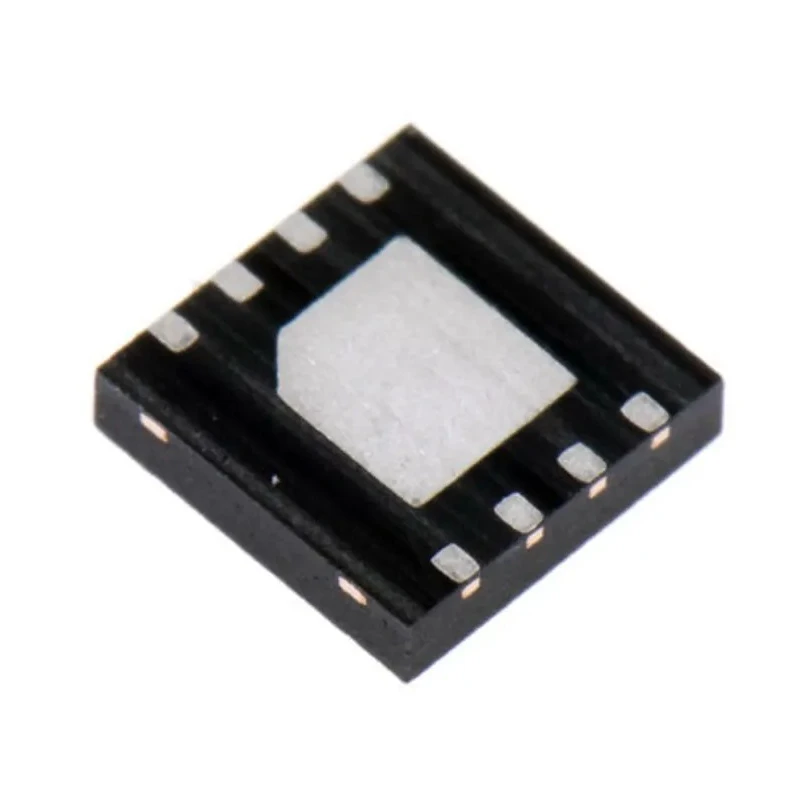

Microchip Operational Amplifier 1 MHz 6V 8-Pin DFN Surface Mount MCP6002-E/MC
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 0.95mm |
| Length | 2mm |
| Model | MCP6002-E/MC |
| Width | 3mm |
| Mount Type | Surface |
| Series | MCP6002 |
| Output Current | 23mA |
| Maximum Operating Temperature | 125°C |
| Package Type | DFN |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | 200V, ESD Protection On All Pins (HBM,MM) ≥ 4 kV |
| Pin Count | 8 |
| Maximum Supply Voltage | 6V |
| Minimum Supply Voltage | 1.8V |
| GBP - Gain Bandwidth Product | 1MHz |
| Input Bias Current | 1 pA |
| Vos - Input Offset Voltage | 4.5 mV |
| Slew Rate | 0.6V/μs |
Key Features
- Operates with a minimum supply voltage of 1.8V and maximum of 6V.
- Features two independent channels for versatile applications.
- Has a gain bandwidth product of 1 MHz ensuring efficient signal amplification.
- Designed with ultra-low input bias current of 1 pA for precision.
- Wide operating temperature range from -40°C to 125°C for robust performance.
- Includes 200V ESD protection on all pins, meeting HBM and MM standards.
- Small form factor dimensions of 2 mm length, 3 mm width, and 0.95 mm height.
- Output current capability up to 23 mA supporting moderate load driving.
Product Description
Microchip MCP6002-E/MC is a high performance operational amplifier designed for various electronic applications requiring precision amplification and reliability. This dual-channel device operates at a gain bandwidth product of 1 MHz and supports a supply voltage range from 1.8V to 6V, making it suitable for low voltage systems.
Its 8-pin DFN surface mount package ensures compact PCB design while maintaining thermal efficiency and manufacturability. The device features ultra-low input bias currents of 1 pA and an input offset voltage of 4.5 mV, which enhances accuracy in sensitive signal processing tasks.
The operational amplifier sustains operating temperatures from -40°C up to 125°C, allowing use in automotive and industrial environments without performance degradation. Integrated protection includes 200V ESD safeguarding all pins under Human Body Model and Machine Model standards, improving robustness during handling and assembly.
Physical dimensions of the MCP6002-E/MC are 2 mm length, 3 mm width, and 0.95 mm height, fitting well in space-constrained setups. Output current up to 23 mA enables driving moderate loads directly, reducing the need for additional buffering circuits.
Operates with a minimum supply voltage of 1.8V and maximum of 6V. Two channels enable dual signal processing simultaneously. Compact 8-pin DFN surface mount package for efficient PCB layout. Low input bias current and offset voltage for precision amplification.
Wide temperature tolerance supports demanding environments. Robust ESD protection rated at 200V across all pins. Small physical footprint with dimensions 2 mm x 3 mm x 0.95 mm. Output current capability up to 23 mA for moderate load driving.
This Operational Amplifier is ideal for industrial, automotive, and commercial electronics requiring reliable, low-noise amplification with compact form factor. Its balance of low power consumption, precision, and ruggedness makes it useful in sensor interfaces, signal conditioning, and audio applications.
Explore additional Microchip amplifiers and semiconductors at EnvMart for comprehensive solutions tailored to your design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MCP6002-E/MC has a gain bandwidth product of 1 MHz, ensuring efficient signal amplification for various applications.
This operational amplifier operates with a minimum supply voltage of 1.8V and a maximum of 6V, making it suitable for low voltage systems.
The physical dimensions of this operational amplifier are 2 mm in length, 3 mm in width, and 0.95 mm in height, allowing for compact PCB designs.
It can provide an output current of up to 23 mA, which supports driving moderate loads directly.
The MCP6002-E/MC has an operating temperature range from -40°C to 125°C, allowing it to function in demanding environments.
This model is packaged in an 8-pin DFN surface mount format, which is designed for efficient PCB layout and thermal management.
The input bias current is ultra-low at 1 pA, which enhances precision in sensitive signal processing tasks.
Yes, it includes 200V ESD protection on all pins, meeting Human Body Model (HBM) and Machine Model (MM) standards.
The input offset voltage is specified at 4.5 mV, contributing to its accuracy in amplification tasks.
The slew rate of the MCP6002-E/MC is 0.6 V/μs, which is important for determining how quickly the output can respond to changes in input.
This model is suitable for applications in industrial, automotive, and commercial electronics requiring reliable, low-noise amplification.
