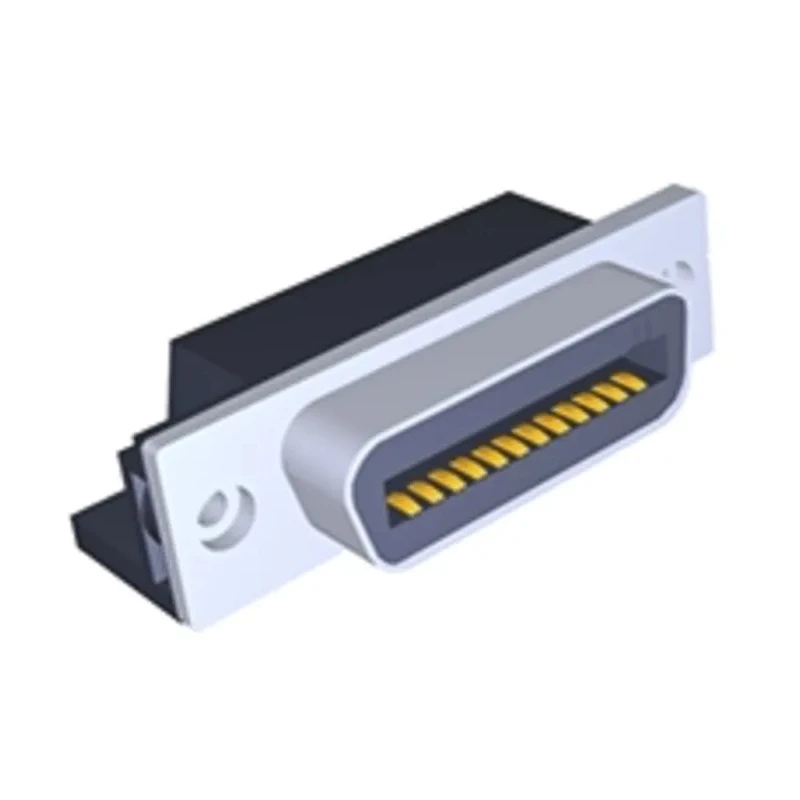

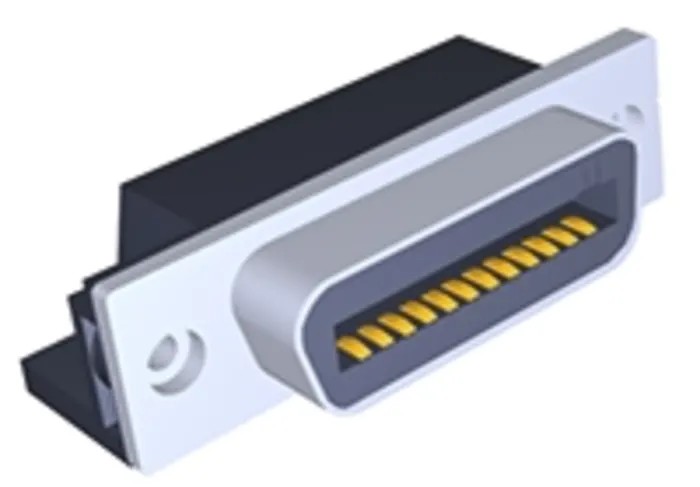

TE Connectivity Champ Series Right Angle PCB Socket 24-Contact 2 Row 2.16mm Pitch Solder 5554923-2
Specifications
| Country of Origin | United States |
|---|---|
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Mount Type | PCB |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Copper |
| Series | Champ |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Connector |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2.16mm |
| Standards/Approvals | RoHS |
| Contact Plating | Gold |
| Number of Contacts | 24 |
| Contact Gender | Female |
| Connector System | Cable-to-Board |
| Row Pitch | 2.54mm |
Key Features
- Provides reliable cable-to-board connection in compact PCB layouts.
- Constructed with liquid crystal polymer housing for durability.
- Gold-plated copper contacts ensure excellent conductivity.
- Designed for operation between -40°C to 105°C.
- Right angle orientation enables flexible PCB mounting options.
- Compatible with 2.54mm row pitch spacing for standard PCB layouts.
- Complies with RoHS standards for environmental safety.
- Female contact gender designed for secure mating.
Product Description
TE Connectivity 5554923-2 Champ Series Right Angle PCB Socket features a 24-contact, 2-row configuration with a 2.16 mm pitch for precise and secure connections on printed circuit boards. This PCB socket is engineered with a liquid crystal polymer housing, offering enhanced durability and resistance to thermal and mechanical stress.
The gold-plated copper contacts provide excellent electrical conductivity and corrosion resistance, making the socket ideal for demanding industrial and electronic environments. Its right angle mounting offers flexibility in PCB layouts, optimizing space utilization in complex assemblies.
Rated for a temperature range from -40°C to 105°C, this socket is suitable for applications requiring wide operational conditions. The 2.54 mm row pitch aligns with common PCB standards, facilitating easy integration into existing designs.
TE Connectivity's Champ series connectors are trusted in industries including telecommunications, manufacturing, automotive, and consumer electronics due to their performance and reliability.
The socket complies with RoHS standards, ensuring it meets environmental and safety regulations for hazardous substances. Provides reliable cable-to-board connection in compact PCB layouts. Constructed with liquid crystal polymer housing for durability.
Gold-plated copper contacts ensure excellent conductivity. Designed for operation between -40°C to 105°C. Right angle orientation enables flexible PCB mounting options. Compatible with 2.54mm row pitch spacing for standard PCB layouts.
Complies with RoHS standards for environmental safety. Female contact gender designed for secure mating. Champ series known for industrial and electronic applications. Manufactured in the United States ensuring quality assurance.
This PCB Socket is a versatile component for electrical connectors used in industrial tools, electronic device manufacturing, telecommunications equipment, and other commercial applications. Explore more from the TE Connectivity Champ connector range on EnvMart for comprehensive connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a 24-contact, 2-row configuration with a 2.16 mm pitch, designed for precise and secure connections on printed circuit boards.
It is rated for operation between -40°C to 105°C, making it suitable for a wide range of applications.
The housing is constructed from liquid crystal polymer, which provides enhanced durability and resistance to thermal and mechanical stress.
The contacts are gold-plated copper, ensuring excellent electrical conductivity and corrosion resistance.
This model utilizes solder termination, which is common in PCB connections.
It has a right angle orientation, allowing for flexible PCB mounting options in compact layouts.
It is compatible with 2.54 mm row pitch spacing, aligning with standard PCB layouts for easy integration.
The socket features female contacts, designed for secure mating with corresponding male connectors.
It complies with RoHS standards, ensuring it meets environmental and safety regulations for hazardous substances.
This product is manufactured in the United States, ensuring quality assurance.
This PCB socket is versatile and used in applications such as telecommunications, manufacturing, automotive, and consumer electronics.
It is designed as a cable-to-board connector system, facilitating reliable connections between cables and printed circuit boards.
