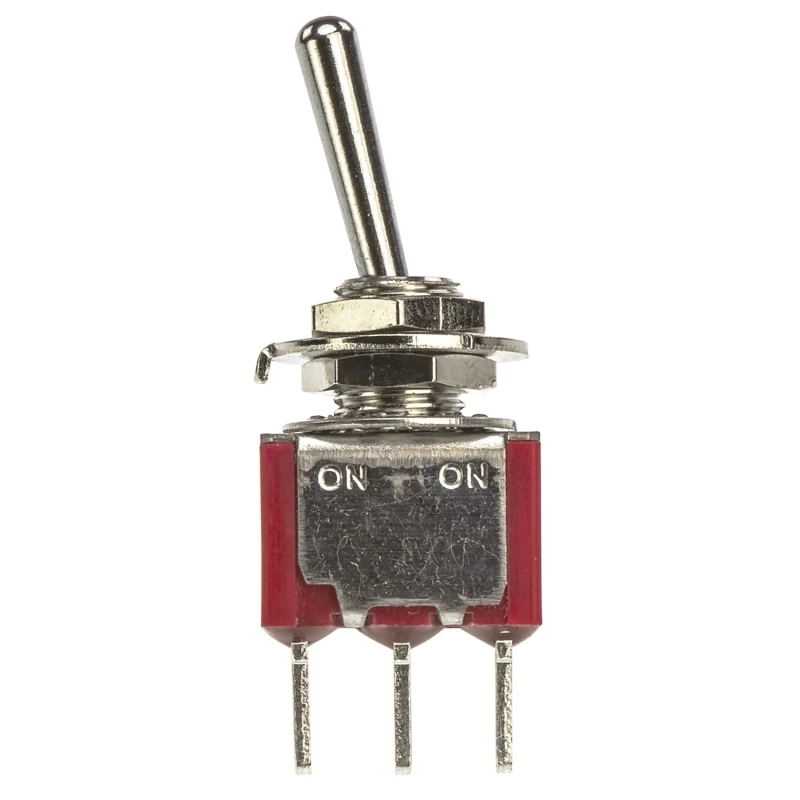

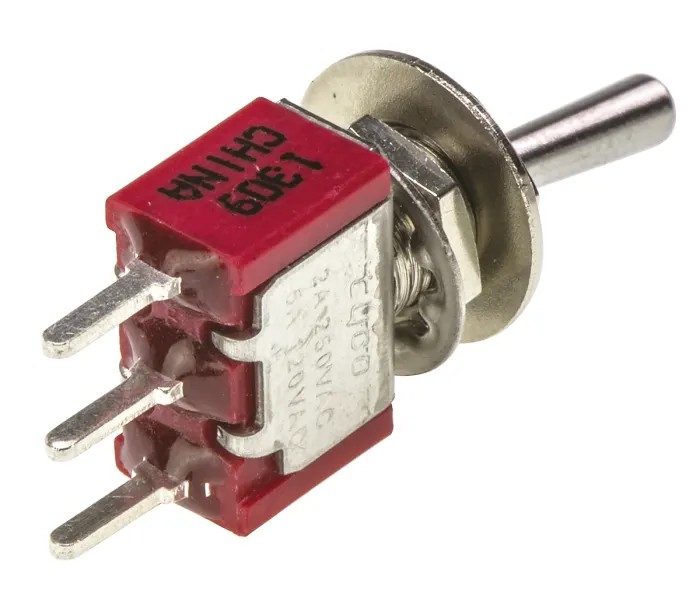

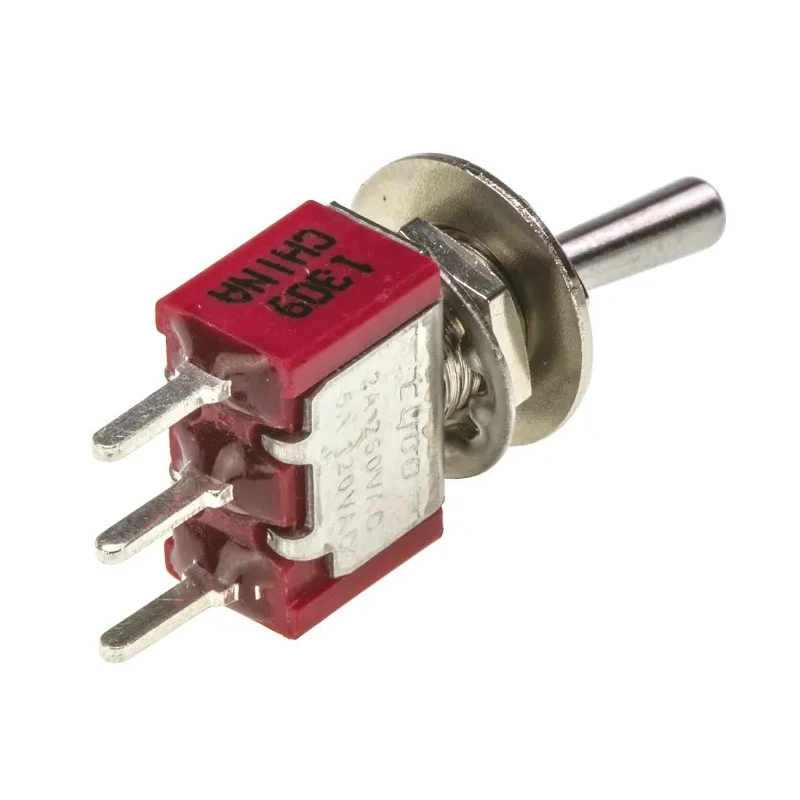

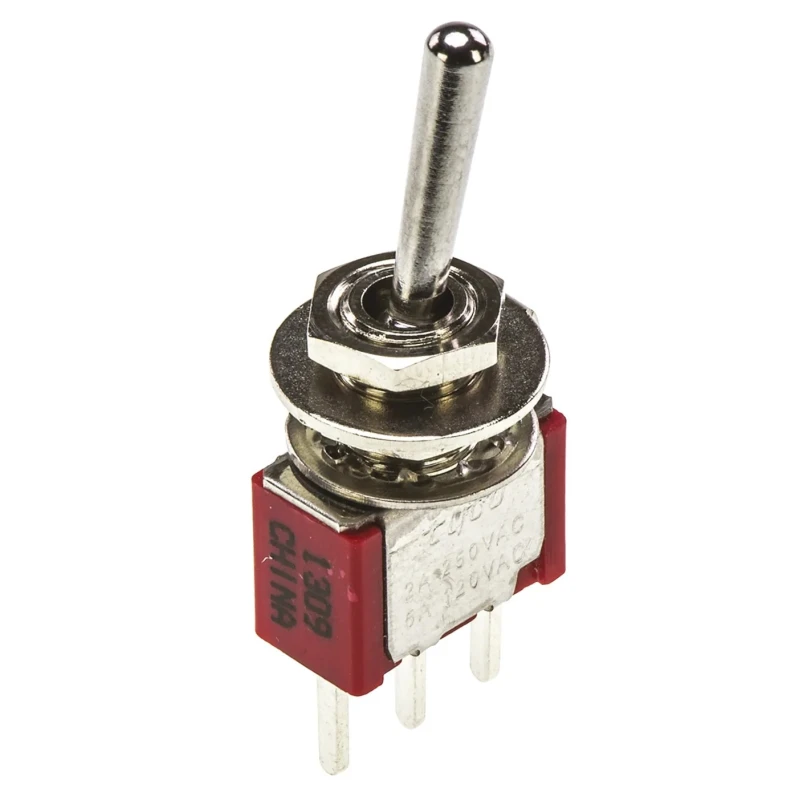

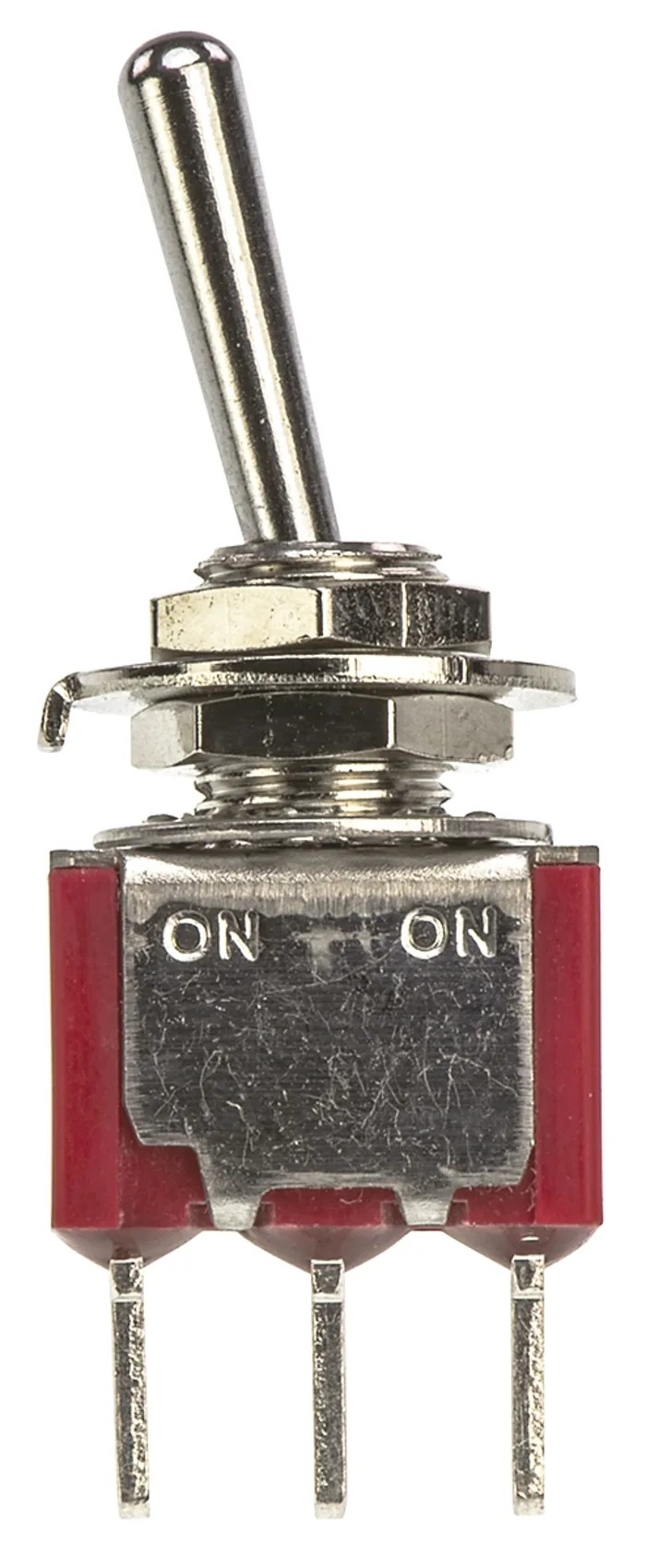

TE Connectivity Toggle Switch PCB Mount On-On SPDT Through Hole Terminal 28V dc 5A 120V ac 3-1825136-8
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| IP Rating | IP67 |
| Mount Type | PCB |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Switch Configuration | On-On |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 6.35 mm |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS |
| Switch Operation | On-On |
| Actuator Length | 12.19mm |
| Contact DC Voltage | 28V dc |
| Switch Contact Current | 5A |
| Contact AC Voltage | 120V ac |
| Actuator Material | Phenolic |
Key Features
- Contact configuration is Single Pole Double Throw (SPDT) for versatile circuit control.
- Switch operation is On-On type ensuring break before make contact timing.
- Rated switch contact current of 5A suitable for medium load applications.
- Robust phenolic actuator material with 12.19 mm actuator length for reliable manual operation.
- IP67 rating provides dust tight and water immersion protection for harsh environments.
- Panel cutout size of 6.35 mm for precision mounting compatibility.
- Operating temperature ranges from -30°C to 85°C suitable for varied industrial conditions.
- Epoxy sealed terminals and stainless steel frame enhance durability.
Product Description
TE Connectivity model 3-1825136-8 is a high-quality toggle switch designed for PCB mounting applications. It features a Single Pole Double Throw (SPDT) contact configuration with On-On operation, rated for 28V dc and 120V ac voltages and 5A current capacity, making it ideal for controlling circuits in industrial, automation, and electrical equipment.
The switch includes a phenolic actuator of 12.19 mm length, providing tactile and reliable manual control. Its through hole terminal mount style ensures sturdy PCB attachment. The switch is designed with epoxy sealed terminals and a stainless steel frame with brass tin plated solder support, enhancing its mechanical strength and corrosion resistance. Additionally, its IP67 rating protects the device against dust ingress and water immersion, supporting demanding industrial environments.
Operating temperature ranges from -30°C to 85°C, allowing reliable function under extreme temperature variations encountered in manufacturing and automation settings. The switch's panel cutout size is precisely 6.35 mm, suitable for standard mounting cutouts.
Single Pole Double Throw contact arrangement for circuit versatility. On-On switch operation providing break before make contact timing. Rated for 5A contact current at specified DC and AC voltages. Robust phenolic material actuator ensures durability.
Epoxy sealed terminals and stainless steel frame ensure longevity. IP67 rated for dust tight and water immersion protection. Compliant with RoHS directive ensuring environmental safety. Designed for PCB mounting with through hole terminals.
Operating temperature range of -30°C to 85°C for varied environments.
This Toggle Switch suits industrial automation, electrical controls, manufacturing equipment, and other applications requiring reliable manual switching with robust environmental protection. TE Connectivity ensures high standards of quality and performance for integrated electronic components.
Explore more TE Connectivity switches and components on EnvMart for reliable, durable, and certified products suited to industrial and commercial electronics needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The toggle switch features a Single Pole Double Throw (SPDT) contact configuration, allowing for versatile circuit control.
It has a rated switch contact current of 5A, making it suitable for medium load applications.
This model is rated for 28V DC and 120V AC, accommodating a variety of electrical applications.
The operating temperature range is from -30°C to 85°C, suitable for varied industrial conditions.
The panel cutout size for this toggle switch is 6.35 mm, ensuring precision during mounting.
It features through hole terminals, which provide sturdy attachment to printed circuit boards (PCBs).
The actuator is made from phenolic material, providing reliable manual operation.
It has an IP67 rating, providing dust tight and water immersion protection for harsh environments.
Yes, it is compliant with the RoHS directive, ensuring environmental safety.
The actuator length is 12.19 mm, allowing for effective manual control.
This switch is designed for industrial automation, electrical controls, and manufacturing equipment, among other applications requiring reliable manual switching.
The country of origin for this model is India.
