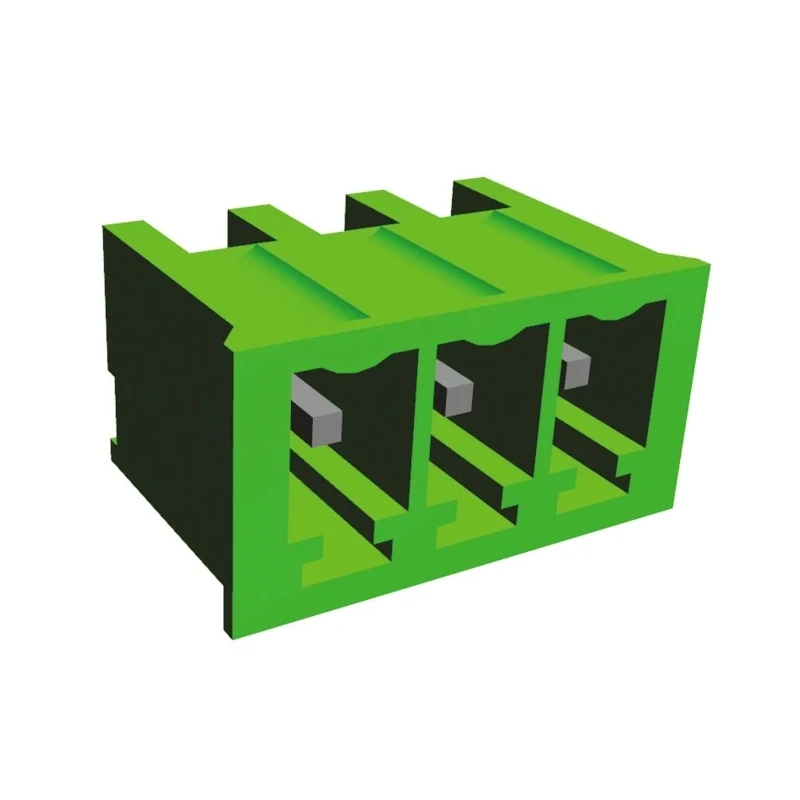

TE Connectivity Buchanan Series Pluggable Terminal Block 3-Contact 3.81 mm Pitch 1 Row 300V 11A 284517-3
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V ac |
| Brand | TE Connectivity |
| Colour | Green |
| Orientation | Straight |
| Current | 11A |
| Model | 284517-3 |
| Housing Material | Polyamide |
| Series | Buchanan |
| Number of Rows | 1 |
| Pitch | 3.81mm |
| Number of Contacts | 3 |
| Connector Gender | Female |
| Minimum Wire Size mm² | 0.05mm² |
| Maximum Wire Size mm² | 2mm² |
| Minimum Wire Size AWG | 14AWG |
| Maximum Wire Size AWG | 30AWG |
| Wire Connection Method | Solder |
Key Features
- Features 3 contacts with a 3.81 mm pitch suitable for compact installations.
- Constructed from durable green polyamide housing ensuring robust insulation.
- Supports a current rating of 11A and voltage rating of 300V AC for industrial applications.
- Accommodates wire sizes from 0.05 mm² to 2 mm² (14 AWG to 30 AWG) for versatile wiring options.
- Designed with a straight orientation and solder wire connection method for secure mounting.
- The terminal block is female connector gender to fit compatible male counterparts.
- Single row configuration ensures compact PCB layout and ease of use.
- Part of the TE Connectivity Buchannan series, assuring quality and compatibility.
Product Description
TE Connectivity 284517-3 Buchanan Series Pluggable Terminal Block is engineered to provide secure, reliable electrical connections in electronic and industrial control systems. This terminal block features 3 contacts arranged in a single row with a 3.81 mm pitch, ensuring compatibility with standard PCB designs.
The housing is made of high-quality, green polyamide 6.6 GF, known for excellent mechanical strength and electrical insulation. It supports a continuous current of up to 11 amperes and withstands voltages up to 300 volts AC, making it suitable for various industrial, laboratory, and manufacturing applications.
Wiring flexibility is ensured by supporting wire sizes from 0.05 mm² to 2 mm² (14 AWG to 30 AWG), connected via the solder method for robust electrical contact. The terminal block features a female connector gender in a straight orientation, streamlining connection assembly on printed circuit boards.
This component is part of the renowned TE Connectivity Buchanan series, which is known for its reliability and proven performance in demanding environments. Its compact design aids in efficient use of PCB real estate, suitable for electronic components, power connectors, and control equipment.
3 contacts with 3.81 mm pitch. Single row layout for compactness. Polyamide housing for durability and insulation. Rated 11A current and 300V AC voltage. Wire size range 0.05 to 2 mm² (14 AWG to 30 AWG). Female connector gender with solder connection.
Straight orientation for ease of mounting. Ideal for industrial and electronic applications. Explore more TE Connectivity components and related Pluggable Terminal Blocks on EnvMart for your electronic assembly and maintenance needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a continuous current of up to 11A and withstands voltages up to 300V AC.
This model features 3 contacts arranged in a single row with a pitch of 3.81 mm, ensuring compatibility with standard PCB designs.
It accommodates wire sizes ranging from 0.05 mm² to 2 mm² (14 AWG to 30 AWG), providing versatile wiring options.
The housing is constructed from green polyamide, which offers excellent mechanical strength and electrical insulation.
It utilizes a solder connection method for secure and robust electrical contact.
The connector is designed with a straight orientation, which simplifies the mounting process on printed circuit boards.
Yes, it is part of the TE Connectivity Buchanan series, known for its reliability in demanding environments.
The terminal block is green in color, which is typical for many electronic components.
The country of origin for this terminal block is India.
This model has a single row configuration, which aids in compact PCB layout.
The connector gender is female, designed to fit compatible male counterparts.
It is suitable for various industrial, laboratory, and manufacturing applications due to its electrical ratings and robust design.
