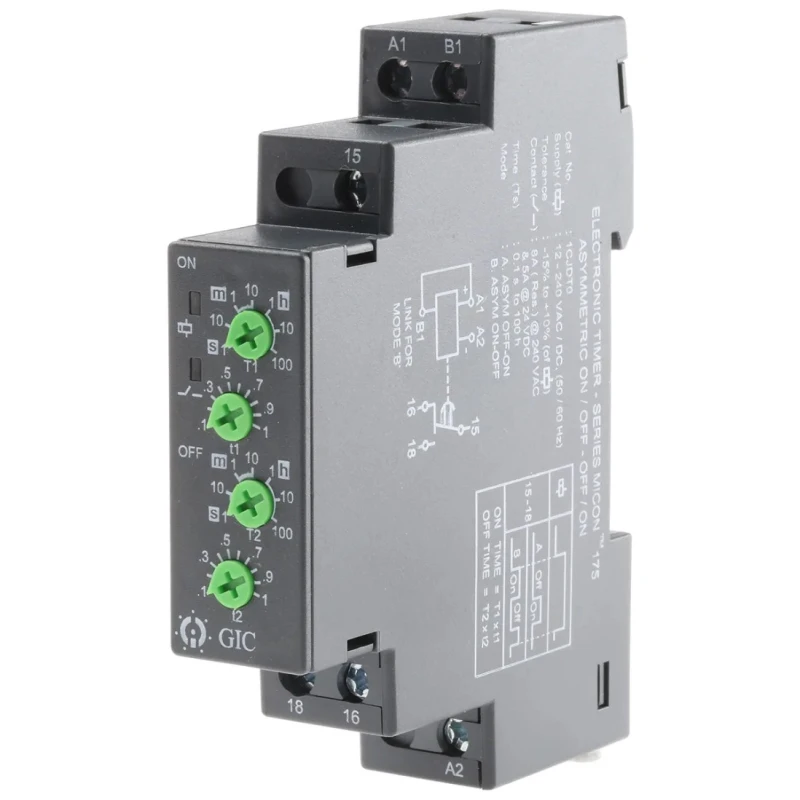

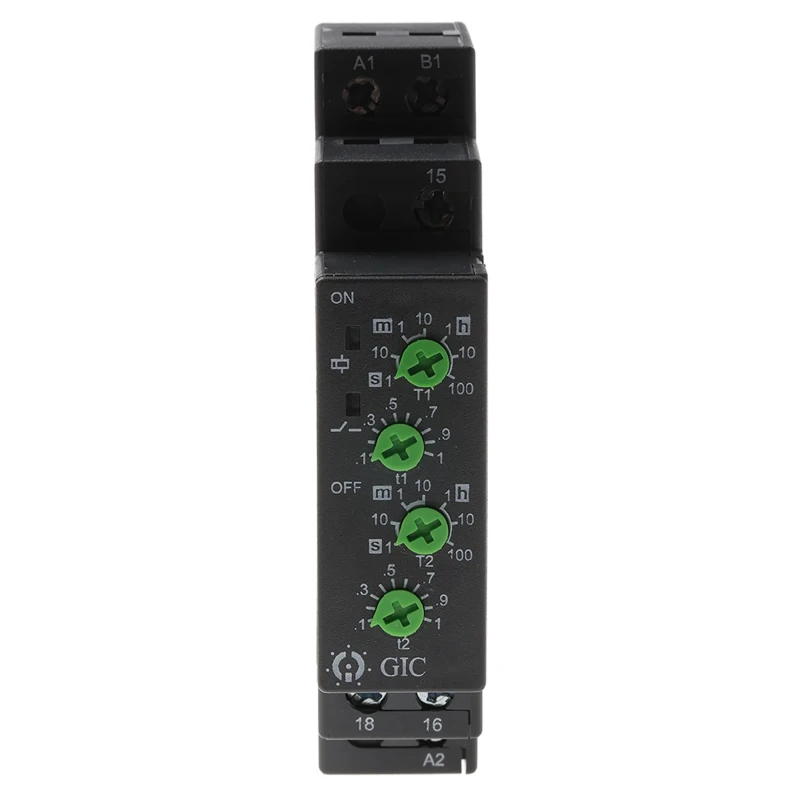

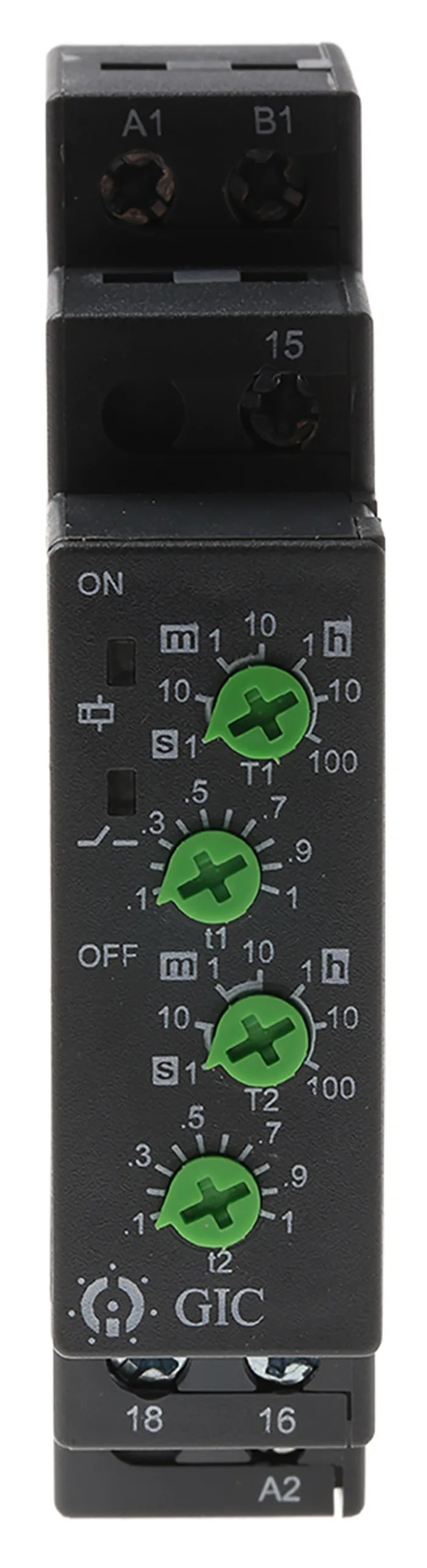

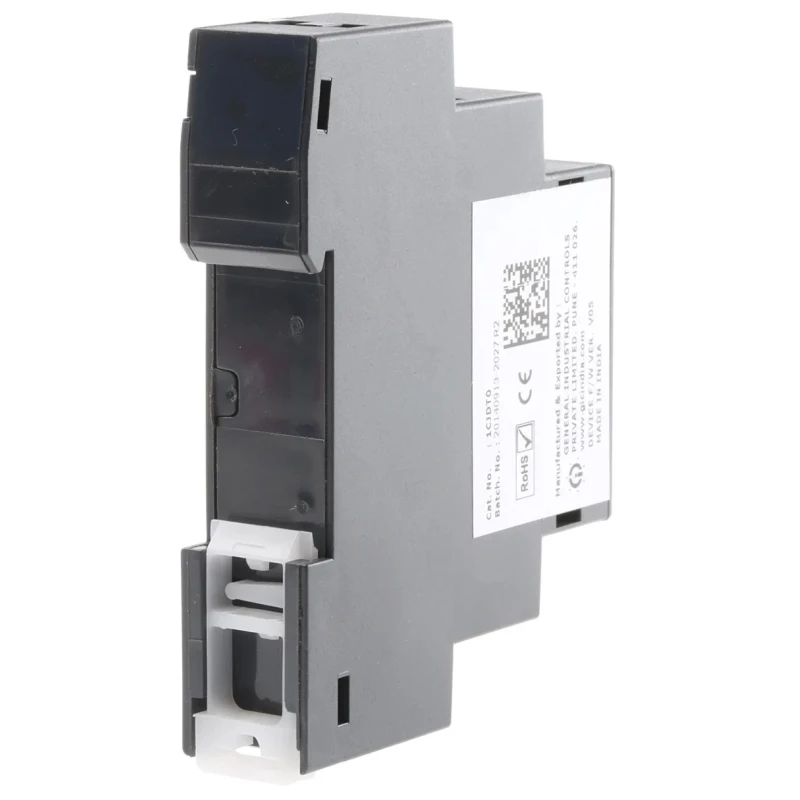

GIC 1CJ Series Multifunction DIN Rail Timer Relay, 1-Contact SPDT, 240 V dc 12V ac, 240 V ac, 0.1s to 100h 1CJDT0

GIC 1CJDT0 multifunction DIN Rail Timer Relay is a compact and solid-state device designed for high precision timing applications. This timer relay supports a broad time range from 0.1 seconds to 100 hours, making it suitable for varied industrial automation tasks. It features a multifunction mode with SPDT 1-contact relay output capable of handling an 8A contact current at 24 VDC.

The relay accepts a wide supply voltage range from 12VAC/VDC to 240VAC/VDC, allowing hassle-free integration into new and existing electrical installations. Its compact dimensions of 18mm width, 65mm height, and 85mm length promote optimum space utilization in control panels. The IP40 rating on the front and IP20 rated terminals offer protection against solid foreign objects while maintaining accessibility.

Timing adjustments are performed using a screwdriver slot, which offers fine tuning within the specified time ranges. LED indicators provide clear visual feedback on power supply status and relay activation. With a reset time of 200 milliseconds, the relay ensures efficient timing cycle transitions. Screw terminal connections enhance wiring security and simplify installation procedures.

This multifunction relay is designed for demanding industrial environments with an operating temperature range from -10°C to 60°C. It is RoHS and CE compliant, certifying adherence to safety and environmental standards.

Common industrial applications span textiles, chemical processing, mining operations, irrigation systems, raw material handling, food and beverage production, and various industrial process control contexts, highlighting its versatility.

Operates on a wide voltage range from 12VAC/VDC up to 240VAC/VDC for flexible application. Provides SPDT contact configuration with a single contact rated for 8A current. Durable construction with IP40 front protection and reliable screw terminal wiring.

Timing range from 0.1 seconds to 100 hours with independent on/off time settings. Clear LED indicators for power and relay status simplify diagnostics. Compact DIN rail mountable unit saves panel space and eases installation.

Suitable for industrial automation, mining, chemical, textile, irrigation, and food processing applications. Explore the complete range of Timer Relays at EnvMart to find suitable automation components for your industrial control needs.
