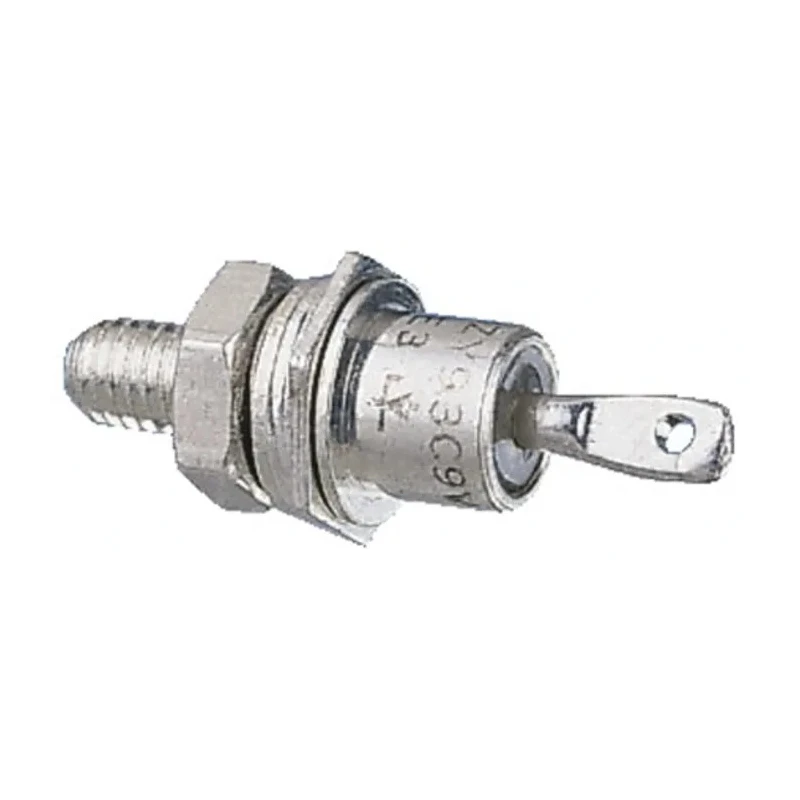

Vishay 600 V 85 A Fast Recovery Diode 2-Pin DO-203AB VS-85HFLR60S02
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 17.35mm |
| Brand | Vishay |
| Height | 17.35mm |
| Length | 36.5mm |
| Model | VS-85HFLR60S02 |
| Mount Type | Screw |
| Series | VSX |
| Maximum Operating Temperature | 125°C |
| Package Type | DO-203AB |
| Minimum Operating Temperature | -40°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 85A |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Diode Configuration | Stud Anode |
| Rectifier Type | Fast Recovery |
| Peak Reverse Current Ir | 20mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 1.4kA |
| Maximum Forward Voltage Vf | 1.75V |
| Peak Reverse Recovery Time trr | 200ns |
Key Features
- This diode features a fast recovery time of 200 nanoseconds.
- It is housed in a 2-pin DO-203AB package optimized for screw mounting.
- The diode has a peak non-repetitive forward surge current of 1.4 kA.
- Operating temperature ranges from -40°C to a maximum of 125°C.
- The maximum forward voltage drop is 1.75 V, ensuring efficient power handling.
- It has a peak reverse current of 20 mA at rated conditions.
- The diode features a stud anode configuration for versatile circuit design.
Product Description
Vishay VS-85HFLR60S02 is a fast recovery power diode designed for high-efficiency operation in demanding semiconductor applications. Rated for a peak reverse repetitive voltage of 600 V and maximum continuous forward current of 85 A, it is suitable for industrial power rectification, power supply design, and switching applications.
The diode comes in a compact and durable 2-pin DO-203AB package allowing straightforward screw mounting. This package supports efficient thermal management and mechanical stability.
With a rapid peak reverse recovery time of 200 nanoseconds, the diode minimizes switching losses and electromagnetic interference in fast switching circuits, enhancing overall system performance.
The device withstands surge currents up to 1.4 kA, ensuring robustness against transient power spikes common in industrial environments. Operating temperature capability ranges from -40°C to 125°C, allowing reliable performance under various thermal conditions.
Technical dimensions include a length of 36.5 mm and a round diameter of 17.35 mm, making it compatible with standard industry mounting hardware and design parameters. This diode features a fast recovery time of 200 nanoseconds.
It is housed in a 2-pin DO-203AB package optimized for screw mounting. The diode has a peak non-repetitive forward surge current of 1.4 kA. Operating temperature ranges from -40°C to a maximum of 125°C. The maximum forward voltage drop is 1.75 V, ensuring efficient power handling.
It has a peak reverse current of 20 mA at rated conditions. The diode features a stud anode configuration for versatile circuit design. Dimensions include a length of 36.5 mm, height and diameter both 17.35 mm.
This Vishay fast recovery diode is widely used in industrial power electronics, laboratory power supplies, and manufacturing equipment for rectification and switching duties. Its design supports sustainable energy efficiency improvements and higher system reliability.
Choose Vishay’s VS-85HFLR60S02 fast recovery diode for robust semiconductor solutions requiring high current, high voltage, and fast switching characteristics. Browse more semiconductor and diode products on EnvMart for comprehensive electronic component solutions.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for the Vishay VS-85HFLR60S02 diode is 85 A.
This model has a peak reverse repetitive voltage rating of 600 V.
The diode features a peak reverse recovery time of 200 nanoseconds.
The dimensions of this diode are 36.5 mm in length and 17.35 mm in both height and diameter.
The maximum operating temperature for the Vishay VS-85HFLR60S02 is 125°C.
It is housed in a 2-pin DO-203AB package optimized for screw mounting.
The diode has a peak non-repetitive forward surge current rating of 1.4 kA.
The maximum forward voltage drop for the VS-85HFLR60S02 is 1.75 V.
The peak reverse current at rated conditions is 20 mA.
This diode features a stud anode configuration.
It is suitable for industrial power rectification, power supply design, and switching applications.
The minimum operating temperature for the Vishay VS-85HFLR60S02 is -40°C.
