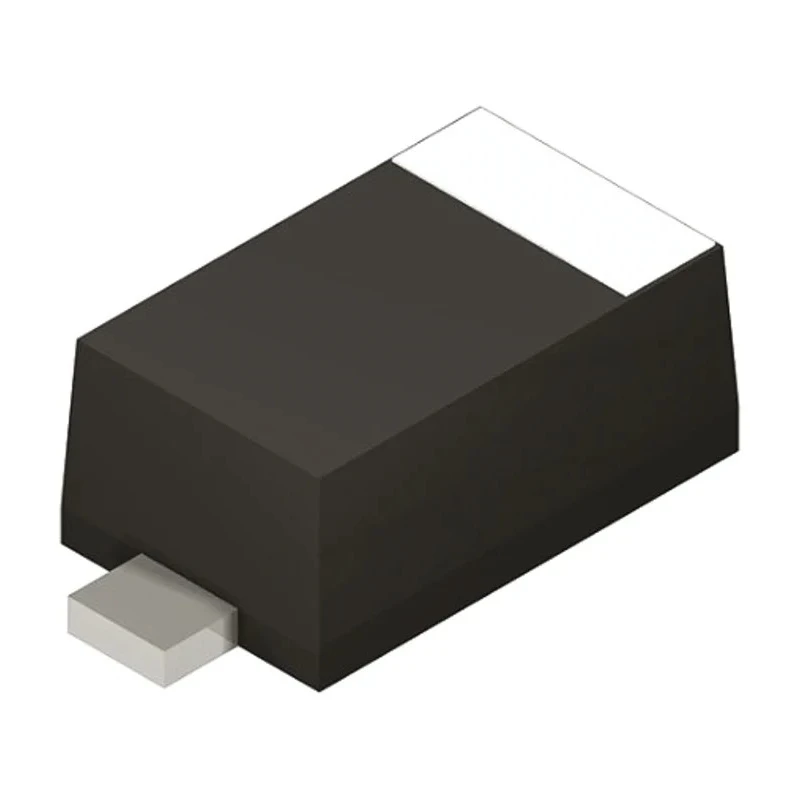

Nexperia 3.6 V General Purpose Zener Diode Single 830 mW Surface Mount SOD-123 BZT52H-C3V6

The Nexperia BZT52H-C3V6 is a high precision, general purpose Zener diode rated for a nominal voltage of 3.6 V and maximum power dissipation of 830 mW. It is designed for surface mount applications and housed in a compact SOD-123 package.

This Zener diode offers excellent voltage regulation performance with a tight ±5% voltage tolerance and low temperature coefficient of -3.5 mV/K, making it well suited for stable voltage reference tasks.

Featuring a maximum reverse leakage current of 5 μA and maximum Zener impedance of 95 Ω, the device ensures efficient and reliable operation under standard test conditions at 5 mA test current.

Its robust operating temperature range from -65°C to 150°C supports use in harsh industrial, automotive, and electronic manufacturing environments, while compliance with the AEC-Q101 automotive standard guarantees high reliability.

The diode's small physical size, with a length of 1.7 mm and a height of 1.2 mm, supports compact printed circuit board designs, ideal for modern electronic component assemblies. This product is commonly used for voltage regulation, overvoltage protection, and stabilization in electronic circuits.

Suitable for industrial, automotive, communication equipment, consumer electronics, and laboratory use. The surface mount SOD-123 package facilitates automated assembly line manufacturing processes.

Choose Nexperia BZT52H-C3V6 for high quality, reliable Zener Diode technology in your electronic designs. Explore more semiconductor components on EnvMart for comprehensive industrial solutions.
