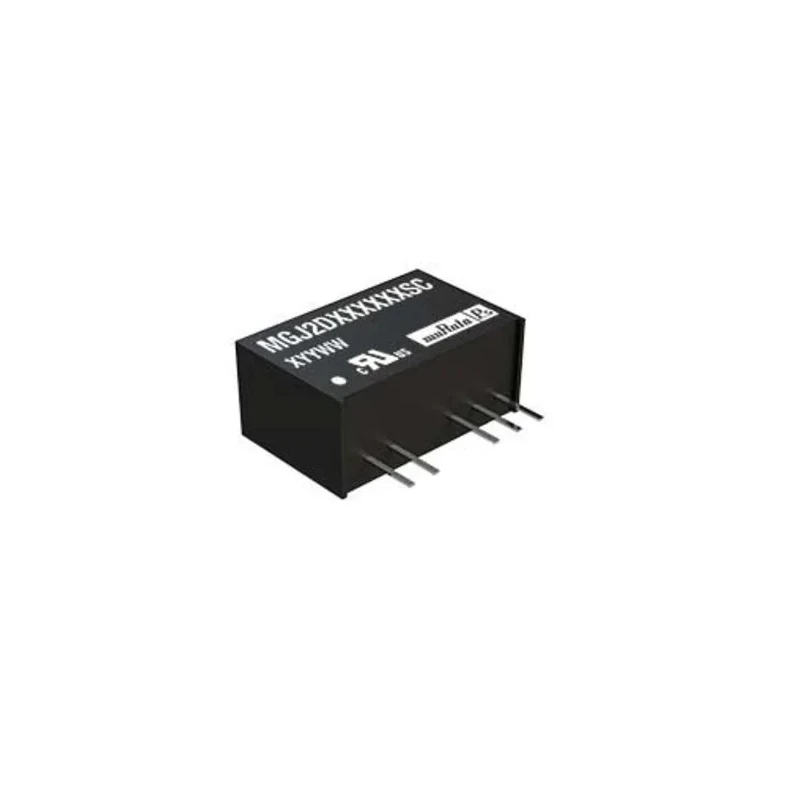

Murata Power Solutions DC/DC Converter 5V dc Output 40mA, 13.2V dc Input, 10.8V Input, 2W Power, Through Hole DIP MGJ2
Specifications
| Country of Origin | China |
|---|---|
| Voltage | Converters / DC-DC Converters Murata Power Solutions MGJ2 DC/DC Converter, 5V dc |
| Brand | Murata Power Solutions |
| Efficiency | 80% |
| Length | 19.65mm |
| Model | MGJ2 |
| Depth | 12.65mm |
| Width | 19.5mm |
| Mount Type | Through Hole |
| Series | MGJ2 |
| Maximum Operating Temperature | 100°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 2 |
| Maximum Output Power | 2W |
| Maximum Input Voltage | 13.2V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 10.8V |
| Number of Pins | 5 |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 40mA |
| Isolation Voltage | 5.2kV dc |
Key Features
- Delivers dual isolated outputs ideal for IGBT and MOSFET gate drives.
- Features a 5.2kV dc high isolation voltage for enhanced safety.
- Compact DIP package with 5 pins and 19.65mm by 19.5mm footprint.
- Efficiency rated at 80% ensuring power savings and reliability.
- Rated for operating temperatures from -40°C up to 100°C for industrial environments.
- Optimized for motor drive, inverter, and bridge circuit applications.
- Characterized dv/dt immunity and partial discharge performance for durability.
- RoHS compliant, meeting environmental and safety standards.
Product Description
Murata Power Solutions MGJ2 DC/DC Converter MGJ2 model delivers a regulated 5V dc output at 40 mA with a maximum input voltage of 13.2V dc and minimum input of 10.8V dc, offering an output power of 2W. This through hole-mounted device is housed in a durable DIP package, measuring 19.65mm length, 19.5mm width, and 12.65mm depth, and supports industrial-grade operating temperatures from -40°C to 100°C.
The MGJ2 series is designed for dual isolated outputs, ideally suited for powering high side and low side gate drive circuits in bridge configurations such as IGBTs and MOSFETs, prevalent in motor drives and inverter systems. Its high isolation voltage rating of 5.2kV dc ensures robust safety and interference resistance in high dv/dt environments.
With an efficiency rating of 80%, this converter offers reliable power delivery while minimizing energy losses. The SIP package style and 5 pins facilitate easy mounting and integration into electronic assemblies. The unit’s design includes ultra low coupling capacitance and is characterized for high dv/dt immunity and partial discharge performance, ensuring longevity and stable operation under demanding conditions.
Murata Power Solutions MGJ2 complies with RoHS environmental standards, ensuring environmentally responsible manufacturing and usage. This product is manufactured in China and meets industrial standards, promising long service life and dependable performance.
Delivers dual isolated outputs ideal for IGBT/MOSFET gate drives. 5.2kV dc isolation provides safety and performance in high voltage environments. Compact DIP through hole package with 5 pins and small footprint. Operates efficiently at 80% across industrial temperature ranges.
Suited for motor drives, inverters, and power supply applications. Characterized for robustness against voltage transients and partial discharge. RoHS compliant for environmental safety. Designed for high reliability and longevity in industrial applications.
Explore the Murata Power Solutions DC/DC Converter range and other power management products at EnvMart for your industrial and electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MGJ2 DC/DC converter provides a regulated output voltage of 5V dc and an output current of 40mA.
The maximum input voltage for the MGJ2 model is 13.2V dc, while the minimum input voltage is 10.8V dc.
This converter has an efficiency rating of 80%, ensuring effective power delivery with minimal energy losses.
The MGJ2 DC/DC converter measures 19.65mm in length, 19.5mm in width, and 12.65mm in depth.
The MGJ2 features a high isolation voltage of 5.2kV dc, providing enhanced safety in high voltage environments.
This model operates efficiently in industrial environments with a temperature range from -40°C to 100°C.
The MGJ2 model delivers dual isolated outputs, making it suitable for various applications including gate drives.
The MGJ2 is designed for through hole mounting, facilitating easy integration into electronic assemblies.
This converter is optimized for applications such as motor drives, inverters, and bridge circuit configurations.
The MGJ2 DC/DC converter is RoHS compliant, ensuring it meets environmental and safety standards.
This model is equipped with 5 pins, which aids in its mounting and integration.
The MGJ2 DC/DC converter is manufactured in China.
