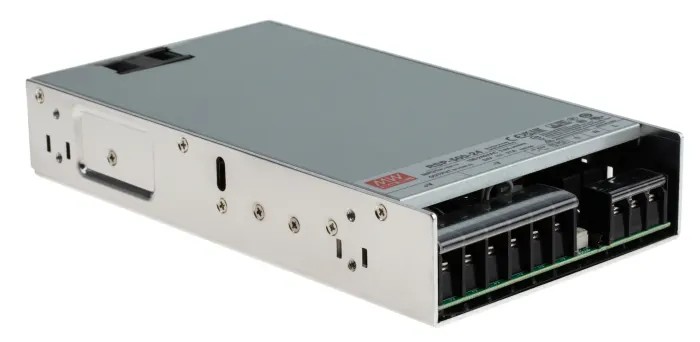

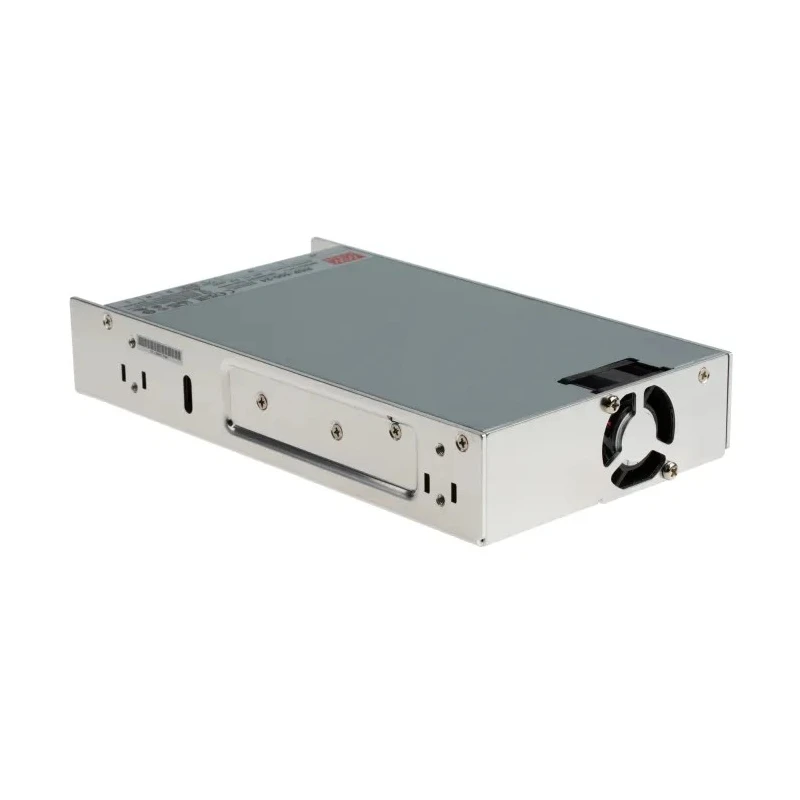

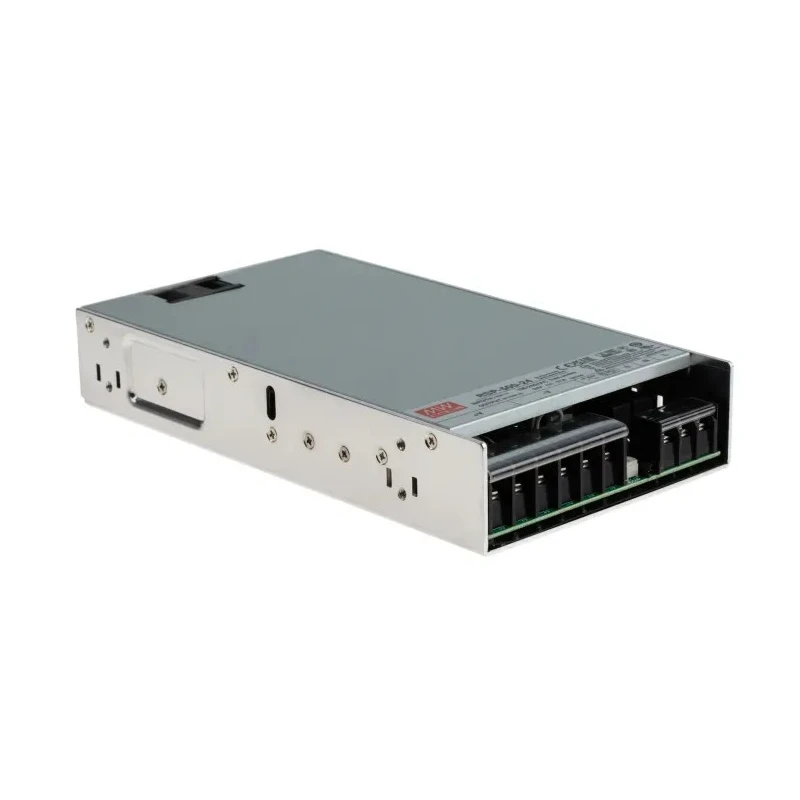

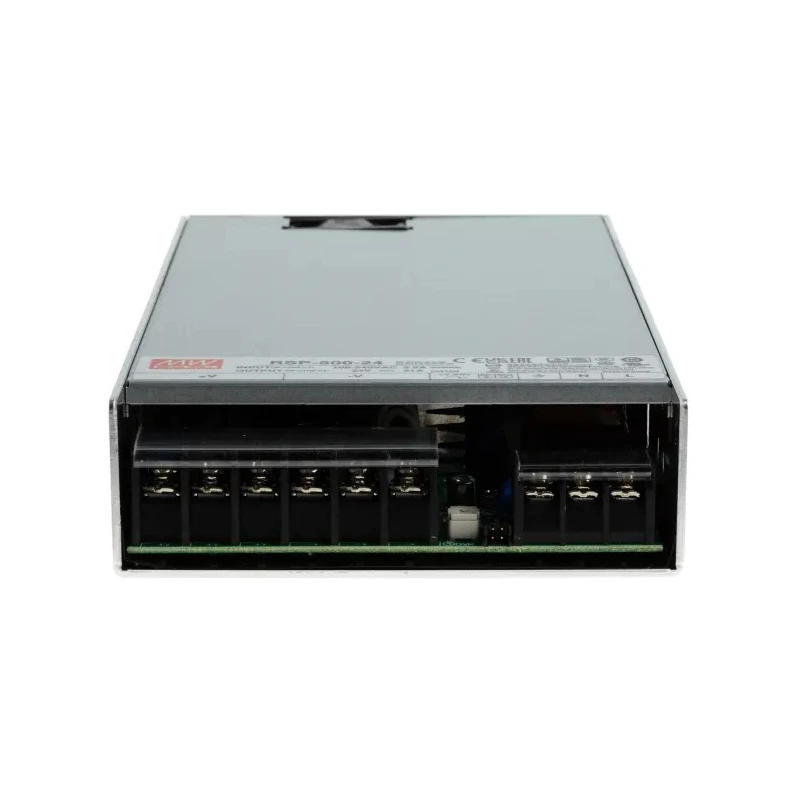

MEAN WELL Switching Power Supply 24V dc 504W Chassis Mount RSP-500-24
Specifications
| Country of Origin | China |
|---|---|
| Brand | MEAN WELL |
| Power | 504W |
| Efficiency | 89% |
| Length | 230mm |
| Model | RSP-500-24 |
| Depth | 40.5mm |
| Gross Weight | 1.3kg |
| Width | 40.5mm |
| Mount Type | Chassis |
| Series | RSP-500 |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -30°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 370, 264V dc |
| Maximum Output Voltage | 24V dc |
| SMPS Output Current | 21A |
| Minimum Input Voltage | 85V ac |
Key Features
- Single output with a maximum voltage of 24V DC.
- Supports universal AC input voltage ranging from 85V to 264V AC and DC input 120V to 370V DC.
- Maximum output current rated at 21A ensuring robust power delivery.
- Compact low profile design with dimensions suitable for 1U installation.
- Built-in active PFC function to improve power efficiency.
- Efficiency up to 89% for energy savings.
- Multiple protections including short circuit, overload, overvoltage, and over temperature safeguards.
- Forced air cooling with built-in DC fan and speed ON/OFF control function.
Product Description
MEAN WELL RSP-500-24 is a high-performance Switching Power Supply designed to deliver consistent 24V DC output at a power capacity of 504W for industrial, electrical, and mechanical applications. It is chassis mount type with a compact low-profile design (40.5mm depth) ideal for space-constrained environments needing 1U installations.
This series features universal AC input voltage acceptance from 85V to 264V AC and DC input voltage range of 120V to 370V DC, providing versatility in deployment across different power environments. The power supply can operate efficiently within a temperature range of -30°C to 70°C, with full load support up to 50°C and appropriate derating beyond that.
Safety and reliability are emphasized through multiple protections including short circuit, overload, overvoltage, and temperature protections, ensuring stable output and device longevity. The built-in active power factor correction and forced air cooling with fan speed control enhance operational efficiency and thermal management.
Applications of the MEAN WELL RSP-500-24 include industrial control systems, electrical and mechanical instrumentation, LED displays, and other systems requiring reliable low-profile power supplies. The power supply complies with multiple international standards such as UL 62368-1, TUV EN 62368-1, CE, CB, and others, assuring safety and electromagnetic compatibility.
Single output, 24V DC voltage, 21A output current. Universal input voltage range: 85 - 264V AC, 120 - 370V DC. Power rating of 504W with up to 89% efficiency. Compact design allows installation in restricted spaces. Multiple safety features and protections for robust operation.
Forced air cooling by built-in fan with ON/OFF control enhances longevity. LED indicator for operational status. Suitable for industrial and electrical equipment. For users seeking reliable switching power solutions, MEAN WELL products at EnvMart ensure quality and performance in demanding industrial environments.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 504W.
It accepts a universal AC input voltage range from 85V to 264V AC and a DC input voltage range from 120V to 370V DC.
The maximum output current is rated at 21A.
It has an efficiency rating of up to 89%.
The dimensions are 230mm in length, 40.5mm in width, and 40.5mm in depth.
It can operate efficiently within a temperature range of -30°C to 70°C, supporting full load up to 50°C.
Yes, it includes multiple protections such as short circuit, overload, overvoltage, and over temperature safeguards.
It features forced air cooling with a built-in DC fan and speed ON/OFF control function.
It is suitable for industrial control systems, electrical and mechanical instrumentation, LED displays, and other systems requiring reliable power supplies.
The country of origin is China.
This model is designed for chassis mounting.
It complies with multiple international standards including UL 62368-1, TUV EN 62368-1, CE, and CB.
