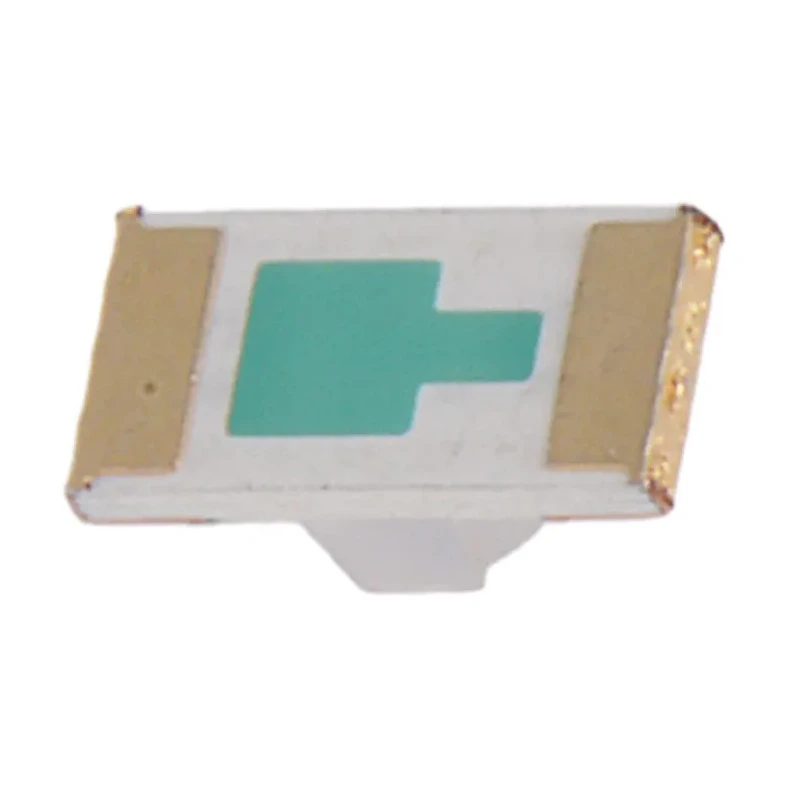

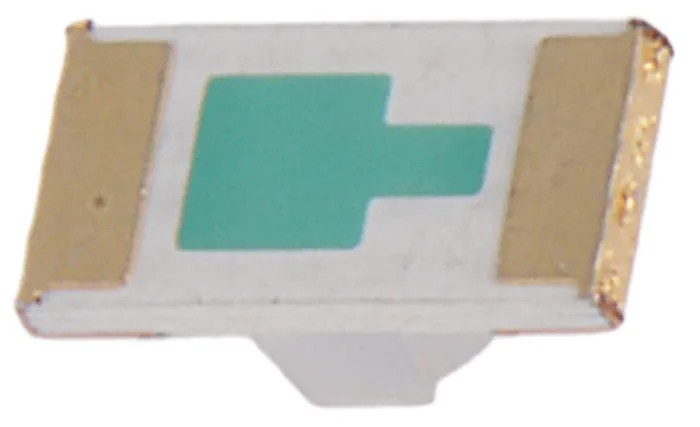

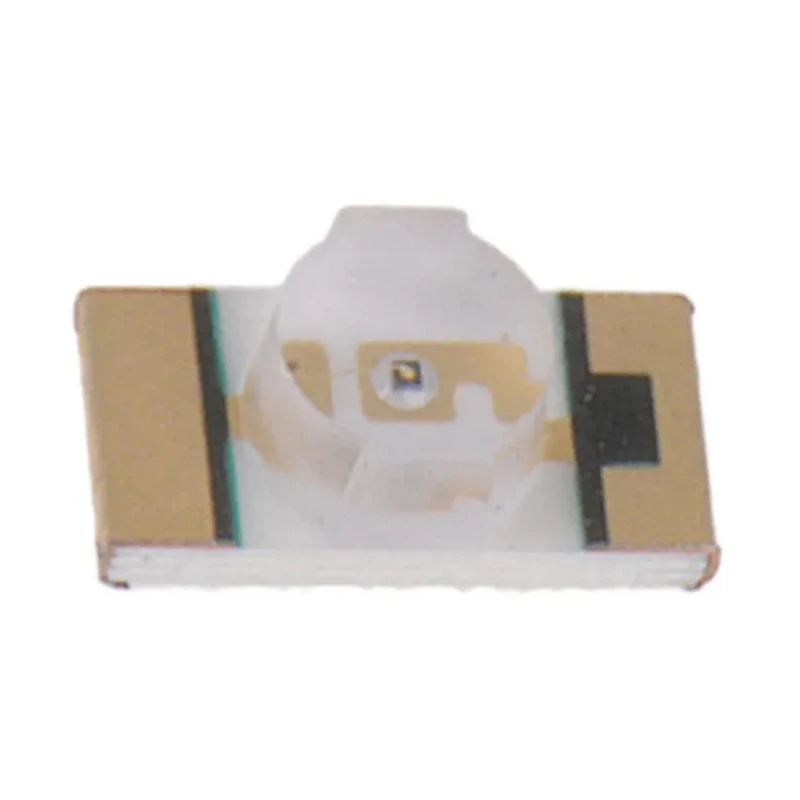

Wurth Elektronik 2 V Red LED 3216 Surface Mount WL-SMRW 156120RS75300
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Model | 156120RS75300 |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | WL-SMRW |
| Maximum forward current | 100mA |
| Viewing angle | 140 ° |
| Package Type | 3216 |
| Standards/Approvals | RoHS |
| LED Colour | Red |
| Dominant Wavelength | 624nm |
| Forward Voltage | 2V |
| Number of Pins | 2 |
| LED Luminosity | 60 mcd |
| Maximum Power Dissipation | 60mW |
| Lens Dimensions | 3.2 x 1.6 x 1.2 mm |
| Lens Shape | Round |
Key Features
- This LED features a water-clear round lens with a 140° wide viewing angle.
- The compact 3.2 x 1.6 x 1.2 mm package is designed for surface mounting on PCB.
- It delivers luminous intensity of 60 mcd with dominant wavelength of 624 nm ensuring strong red light emission.
- The device is RoHS compliant and built for reliable industrial and commercial applications.
- Suitable for backlighting, indicator lights, message displays, traffic signals, and decorative lighting.
- It is tape and reel packaged for efficient automated SMT assembly.
Product Description
Wurth Elektronik 156120RS75300 is a 2 V Red LED from the WL-SMRW series featuring a 3216 (1206) surface mount package designed for reverse PCB mounting. This SMT component has a compact footprint of 3.2 x 1.6 x 1.2 mm with a water-clear round lens providing a wide 140° viewing angle, ensuring visibility from multiple directions.
With a maximum forward current of 100 mA and rated power dissipation of 60 mW, it produces a luminous intensity of 60 mcd at a dominant wavelength of 624 nm, offering bright and consistent red light output suitable for various industrial and commercial uses.
The LED is RoHS compliant and designed to meet industry standards, making it ideal for high-volume automated assembly thanks to its tape and reel packaging format. Its surface mount design and reverse mounting style support compact PCB layouts and efficient production workflow.
This Red LED is engineered for versatility, widely applicable in applications such as backlighting for LCD screens, indicator lamps for switches and control panels, indoor and outdoor message displays, industrial controls, traffic signaling, marker lighting, directional indicators, and decorative illumination projects.
Compact 3216 package with reverse surface mount design. High luminous efficacy with 60 mcd light output and 624 nm wavelength. Wide 140° viewing angle for broad visibility. Tape & reel packaging for automated manufacturing.
RoHS compliant for environmental safety. Reliable for industrial, commercial, and transportation lighting applications. Explore the extensive range of Wurth Elektronik visible light LEDs at EnvMart to find solutions best suited for your lighting and indicator requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The forward voltage of this LED is 2 V.
This model has a maximum forward current of 100 mA.
It produces a luminous intensity of 60 mcd.
The dominant wavelength is 624 nm, which corresponds to red light.
The package dimensions are 3.2 x 1.6 x 1.2 mm.
The viewing angle is 140°, providing broad visibility.
It is packaged in tape and reel format for efficient automated SMT assembly.
Yes, this LED is RoHS compliant, ensuring it meets environmental safety standards.
It is suitable for applications such as backlighting, indicator lights, message displays, and traffic signals.
The maximum power dissipation is rated at 60 mW.
This LED has 2 pins.
This LED is part of the WL-SMRW series.
