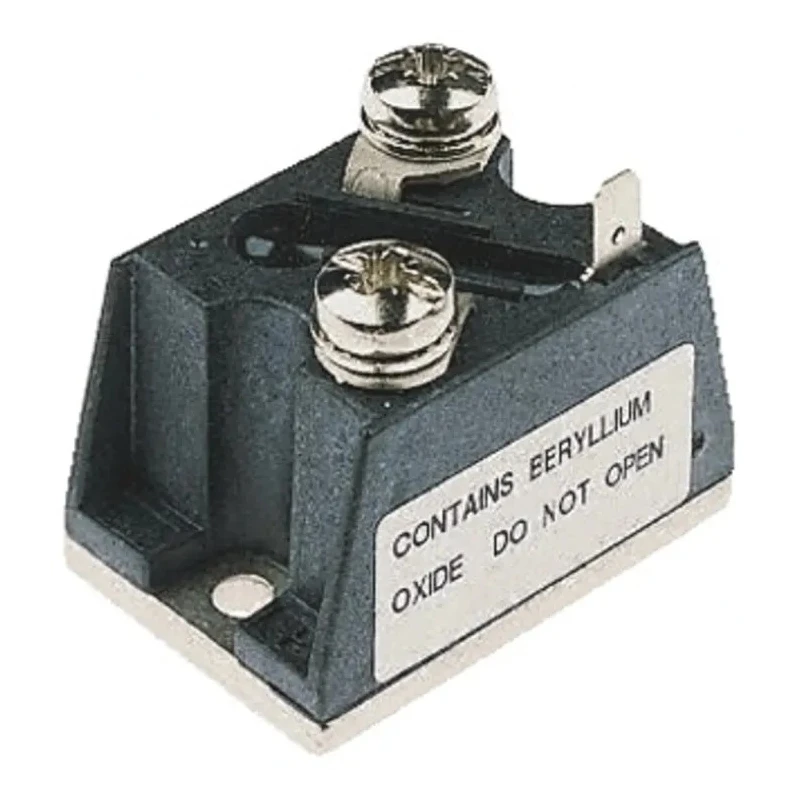

Vishay Power Diode 100 V 70 A 2-Pin D-55 Panel Mount VS-T70HF10
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 25mm |
| Brand | Vishay |
| Height | 25mm |
| Length | 41mm |
| Model | VS-T70HF10 |
| Width | 27mm |
| Mount Type | Panel |
| Series | VS-T70HF |
| Maximum Operating Temperature | 150°C |
| Package Type | D-55 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 70A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | Power |
| Peak Reverse Current Ir | 15mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 1.3kA |
| Maximum Forward Voltage Vf | 1.35V |
Key Features
- Panel mount diode with D-55 package type.
- Maximum continuous forward current of 70 A.
- Peak reverse repetitive voltage of 100 V.
- Single diode configuration with 2 pins.
- Maximum forward voltage of 1.35 V for efficient switching.
- Operates reliably between -40°C and 150°C.
- High surge current capability of 1.3 kA peak non-repetitive forward surge current.
- Compact dimensions with length 41 mm, width 27 mm, height 25 mm, and diameter 25 mm.
Product Description
Vishay VS-T70HF10 is a high-performance power diode designed for industrial applications requiring reliable current rectification. This 2-pin diode comes in a D-55 package suitable for panel mounting, featuring a maximum continuous forward current of 70 A and a peak reverse repetitive voltage rating of 100 V.
With a single diode configuration, it offers a maximum forward voltage of 1.35 V, ensuring low conduction losses, and supports operation in temperature ranges from -40°C to 150°C. The diode is equipped with a peak non-repetitive forward surge current of 1.3 kA, which provides protection against high transient surges.
The electrically isolated base plate is engineered for easy integration with common heatsinks, enabling rapid and simplified mechanical designs. Its compact dimensions - 41 mm length, 27 mm width, and 25 mm height - make it suitable for assemblies with spatial constraints.
This power diode series from Vishay is ideal for use in power supplies, battery chargers, welders, motor controls, and other general industrial current rectification tasks. Its robust design and compliance with RoHS directives ensure long service life and environmental safety.
Panel mount design with D-55 package enables versatile installation. High current and voltage ratings suit demanding industrial applications. Electrically isolated base allows common heatsink usage. Compact size facilitates use in limited space assemblies.
High surge current capability protects against transient faults. Wide operating temperature range supports varied environments. Compliant with RoHS for environmental safety.
Choose Vishay power diodes for reliable, efficient industrial power rectification solutions. Browse the full catalog of Vishay semiconductor components at EnvMart for your electronics project needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating of the Vishay VS-T70HF10 power diode is 70 A.
This diode has a peak reverse repetitive voltage rating of 100 V.
The dimensions of the D-55 package are 41 mm in length, 27 mm in width, and 25 mm in height, with a diameter of 25 mm.
The maximum forward voltage for the Vishay VS-T70HF10 is 1.35 V.
This model operates reliably between -40°C and 150°C.
The diode can handle a peak non-repetitive forward surge current of 1.3 kA.
The Vishay VS-T70HF10 supports panel mounting with a D-55 package type.
This model features a single diode configuration with 2 pins.
Yes, the diode is compliant with RoHS directives for environmental safety.
This power diode is suitable for applications such as power supplies, battery chargers, welders, and motor controls.
The Vishay VS-T70HF10 is classified as a power rectifier.
The country of origin for the Vishay VS-T70HF10 is India.
