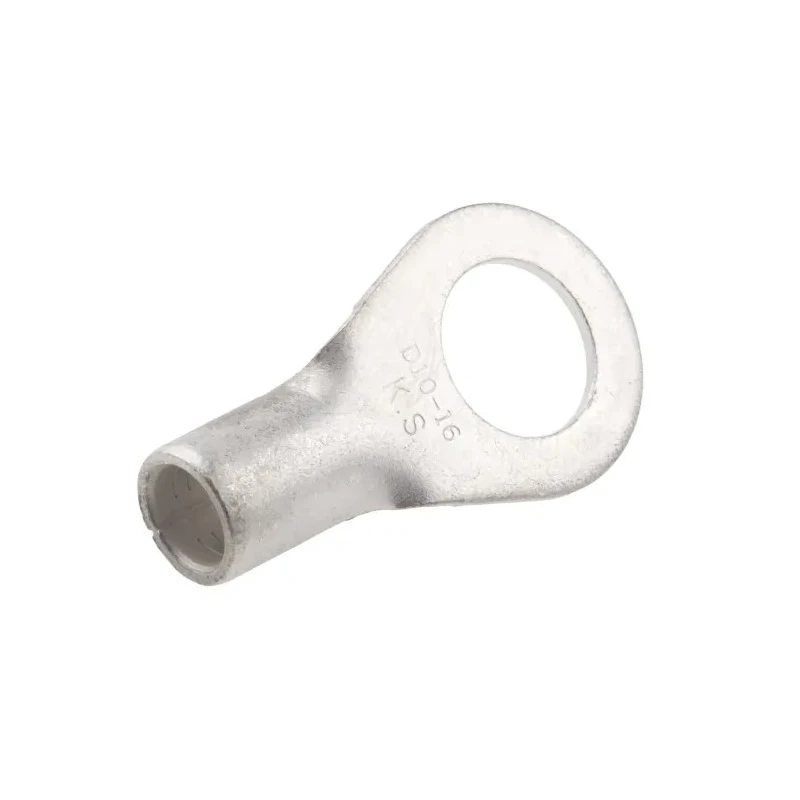

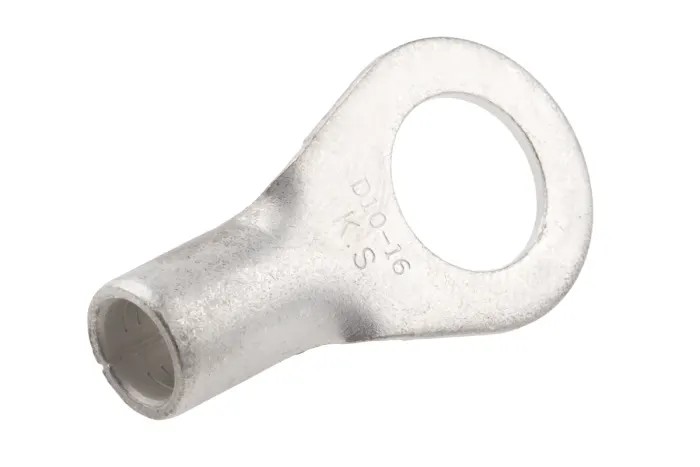

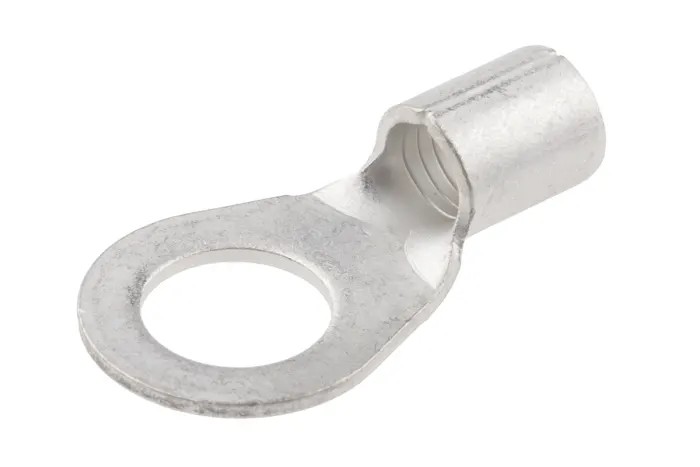

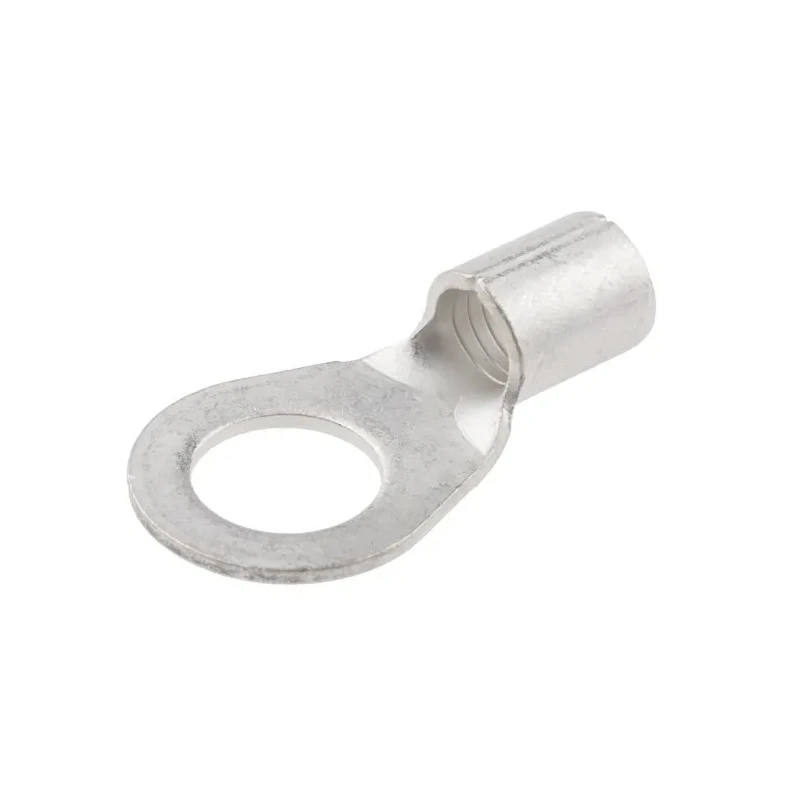

RS PRO Uninsulated Ring Terminal 10.5 mm Stud Size 6 AWG Wire Size Copper Tin Plated 150°C 809-2290
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Colour | Grey |
| THICKNESS | 1.2mm |
| Model | 809-2290 |
| Insulation | Uninsulated |
| Overall Length | 33mm |
| Contact Material | Copper |
| Series | RS PRO |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS, ANSI/ESD S20.20:2021 Electrostatic Control Standard |
| Contact Plating | Tin |
| Maximum Wire Size mm² | 16mm² |
| Maximum Wire Size AWG | 6AWG |
| Outer Ring Diameter | 18mm |
| Inner Ring Diameter | 10.5mm |
| Stud Size | 10.5 mm |
| Standards/Approvals RoHS, ANSI/ESD S20.20 | 2021 Electrostatic Control Standard |
Key Features
- This uninsulated ring terminal features a tin-plated copper contact for enhanced conductivity and corrosion resistance.
- The terminal supports wire sizes up to 6 AWG (16 mm²) ensuring compatibility with various electrical installations.
- It has an overall length of 33 mm and a thickness of 1.2 mm for robust mechanical strength.
- It is suitable for electrical installations, cable connections, and industrial wiring applications.
- The temperature rating ranges from -40°C minimum to 150°C maximum for reliable operation in harsh environments.
- Its grey color and brazed seam construction enhance durability and ease of identification.
Product Description
RS PRO 809-2290 is an uninsulated ring terminal designed to provide reliable and efficient electrical connections in industrial, commercial, and electronic applications. Manufactured from high-conductivity copper and featuring a tin plating, this terminal ensures excellent current flow and resistance to corrosion. The uninsulated design allows for flexible use where insulation is not required or when additional insulation measures are applied separately.
The terminal has a stud size of 10.5 mm and accommodates wire sizes of 6 AWG (16 mm²), offering versatility for multiple wiring configurations. With an overall length of 33 mm and a thickness of 1.2 mm, it provides mechanical robustness and secure crimping capability.
It complies with RoHS regulations and ANSI/ESD S20.20:2021 standards for electrostatic discharge control, making it suitable for sensitive electronic assemblies and installations requiring ESD protection.
Tin-plated copper contact material ensures optimum electrical conductivity. Uninsulated design for versatile wiring applications. Supports wire sizes of 6 AWG (16 mm²) with 10.5 mm stud size. Operating temperature range from -40°C to 150°C for durable performance.
Compliant with RoHS and ANSI/ESD S20.20:2021 standards. Suitable for electrical installations, cable terminations, and industrial wiring tasks.
These ring terminals are essential components in electrical wiring and cabling, widely used in industrial machinery, power distribution, and electronic equipment assembly. RS PRO provides consistent quality and performance standards that meet industrial requirements. Ideal for use in manufacturing, maintenance, and repair operations.
Choose RS PRO 809-2290 uninsulated Ring Terminal for dependable and efficient wire terminations supporting secure electrical connections in demanding environments. Explore more RS PRO industrial electrical components on EnvMart for comprehensive solutions across various sectors.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This uninsulated ring terminal supports a maximum wire size of 6 AWG, which is equivalent to 16 mm².
The stud size of this model is 10.5 mm, allowing it to fit various mounting applications.
It is made from high-conductivity copper with a tin plating, which enhances its electrical conductivity and corrosion resistance.
The operating temperature range for this model is from -40°C to 150°C, making it suitable for harsh environments.
Yes, it complies with RoHS regulations and the ANSI/ESD S20.20:2021 standard for electrostatic discharge control.
The overall length of this terminal is 33 mm, with a thickness of 1.2 mm and an outer ring diameter of 18 mm.
It is suitable for electrical installations, cable connections, and various industrial wiring applications.
This model is grey in color, which can aid in identification during installations.
The inner ring diameter of this ring terminal is 10.5 mm.
The thickness of this terminal is 1.2 mm, providing robust mechanical strength.
No, this terminal is uninsulated, allowing for flexible use where insulation is not required or additional insulation is applied separately.
This ring terminal is manufactured in Taiwan.
