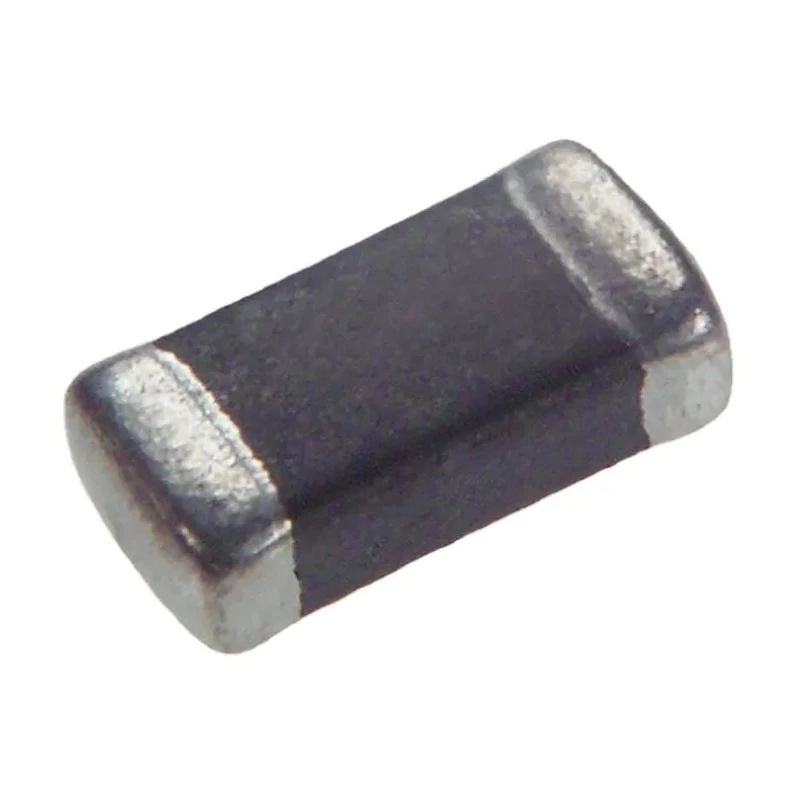

Murata 0806 Shielded Multilayer Surface Mount Inductor with Ferrite Core 470 nH ±30% Tolerance 1.6 A DC LQM2MPNR47NG0L
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Murata |
| Height | 0.9mm |
| Length | 2mm |
| Model | LQM2MPNR47NG0L |
| Depth | 1.6mm |
| Packaging | Embossed Tape |
| Series | LQW |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Ferrite |
| Inductance | 470nH |
| Standards/Approvals | RoHS |
| Package/Case | 0806 |
| Maximum DC Current | 1.6A |
| Pin Count | 2 |
| Maximum DC Resistance | 75mΩ |
| Inductance Tolerance | ±30 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 100MHz |
| Inductor Construction | Multilayer |
Key Features
- Features a ferrite core for efficient magnetic performance.
- Constructed as a multilayer chip inductor with shielding to reduce electromagnetic interference.
- Packaged in the compact 0806 SMT footprint with dimensions 2 mm length, 1.6 mm depth, and 0.9 mm height.
- Capable of operating within a temperature range from -55°C to 125°C.
- Maximum DC resistance rated at 75 mΩ to ensure low power loss.
- Complies with RoHS standards for environmental safety.
- Suitable for automotive and industrial electronic applications requiring reliable inductance.
- Termination style is solder compatible for surface mount assembly.
Product Description
Murata LQM2MPNR47NG0L is a high-quality 0806 size shielded multilayer surface mount inductor featuring a ferrite core designed to provide 470 nH inductance with ±30% tolerance. It supports a maximum direct current of 1.6 A, making it ideal for demanding electronic circuits.
Constructed with a multilayer design and magnetic shielding, this surface mount inductor minimizes electromagnetic interference while offering reliable performance in compact applications. The embossed tape packaging facilitates automated placement and assembly on printed circuit boards.
The component’s compact dimensions of 2 mm length, 1.6 mm depth, and 0.9 mm height make it suitable for space-constrained designs. It maintains stable operation over a temperature range from -55°C to 125°C, suitable for automotive and industrial environments.
The maximum DC resistance of 75 mΩ ensures energy efficiency by limiting power loss under load, while the solder termination style supports standard SMT assembly processes. Murata has designed this inductor to comply with RoHS directives, ensuring environmental safety in manufacturing and disposal.
This multilayer shielded chip choke is widely used in power circuits, filtering, and signal conditioning applications across industrial, automotive, communications, and consumer electronics sectors.
Features a ferrite core for enhanced magnetic properties. Multilayer construction with shielding for reduced noise and interference. Compact 0806 SMT package dimensions: 2 mm x 1.6 mm x 0.9 mm. Wide operating temperature range from -55°C to 125°C.
Low DC resistance of 75 mΩ ensures efficient current flow. Solder termination type for reliable surface mounting. RoHS compliant and environmentally safe. Supports up to 1.6 A maximum DC current.
Choose Murata inductors for dependable performance in your electronic device designs. Explore the Electronics Components category on EnvMart for more Surface Mount Inductors and passive components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features an inductance value of 470 nH with a tolerance of ±30%.
It supports a maximum DC current of 1.6 A, making it suitable for various electronic applications.
The inductor has compact dimensions of 2 mm in length, 1.6 mm in depth, and 0.9 mm in height.
It operates effectively within a temperature range from -55°C to 125°C.
This unit features a solder termination style, compatible with surface mount assembly processes.
The maximum DC resistance is rated at 75 mΩ, ensuring low power loss during operation.
It is constructed with a ferrite core, which enhances its magnetic performance.
The inductor is packaged in embossed tape, facilitating automated placement on printed circuit boards.
Yes, it complies with RoHS standards for environmental safety in manufacturing and disposal.
It is suitable for automotive and industrial electronic applications requiring reliable inductance.
The maximum self-resonant frequency is 100 MHz, making it effective for high-frequency applications.
This model is part of the LQW series of multilayer surface mount inductors.
