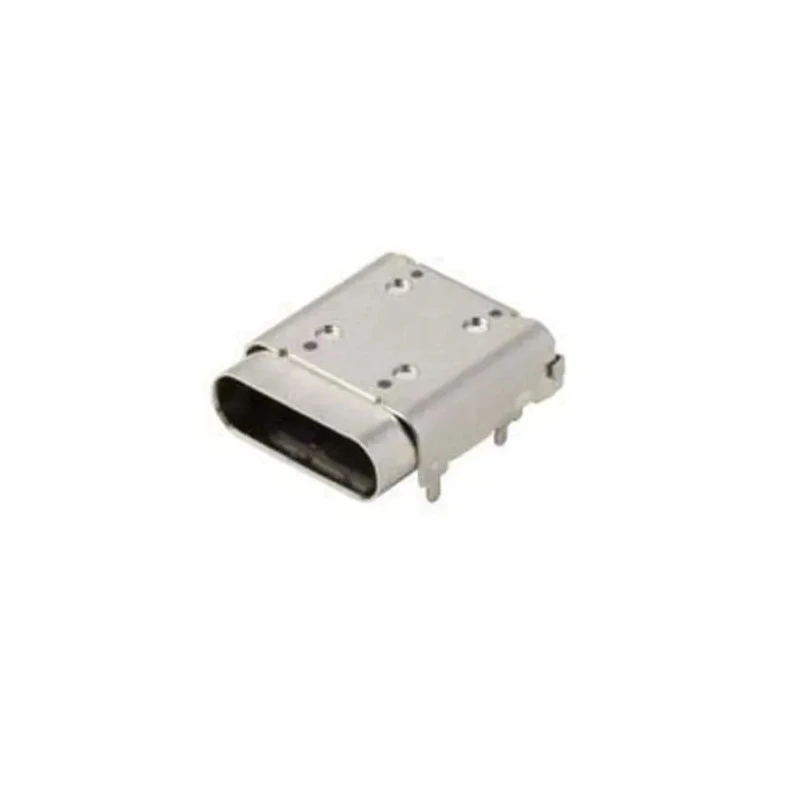

Amphenol Communications Solutions USB Type C USB Connector, Right Angle Surface Mount, Female, 1 Port, USB 10137061-00021LF
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 100V |
| Brand | Amphenol Communications Solutions |
| Orientation | Right Angle |
| Current | 5A |
| Model | 10137061-00021LF |
| Mount Type | Surface |
| Contact Material | Copper Alloy |
| Series | 101xxxxx-0001LF |
| Number Of Ports | 1 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -55°C |
| USB Type | USB Type C |
| Connector Gender | Female |
| USB Specification | USB 3.1 |
Key Features
- Supports USB 3.1 standard for data transfer speeds up to 5 Gb/s.
- Designed with a right angle orientation for space-saving mounting.
- Features a surface mount design suitable for PCB installation.
- Supports current rating up to 5A and voltage up to 100V.
- Constructed with copper alloy contact material for enhanced durability and conductivity.
- Operates within a temperature range of -55°C to 85°C.
- Termination type is solder for robust connection on circuit boards.
- Compliant with RoHS and lead-free standards to ensure environmental safety.
Product Description
Amphenol Communications Solutions 10137061-00021LF USB Type C Connector is a right angle, surface mount female USB connector compliant with USB 3.1 standard, offering data transfer rates up to 5Gb/s and power delivery up to 100W. Its compact form factor with a reversible design ensures quick and easy connections, regardless of orientation.
This connector is constructed with high-quality copper alloy contacts to provide reliable and durable performance in demanding industrial and electronics applications. The surface mount termination and right angle orientation allow for optimized PCB layouts, making it suitable for use in very thin platforms and industrial interface markets.
Operating safely across a temperature range from -55°C to 85°C, this connector ensures stable functionality in various environmental conditions. It supports current up to 5A and voltage up to 100V, suitably designed for application in electronic equipment requiring USB Type C connectivity under industrial, manufacturing, and commercial use cases.
USB 3.1 Type C Gen 1 compatible for high-speed data transfer. Right angle and surface mount design for space-efficient PCBs. Durable copper alloy contact material ensures longevity. Supports power delivery up to 100W with 5A current rating.
Wide operating temperature range ensures reliability. Lead-free and RoHS compliant for environmental compliance. Reversible USB Type C plug supports easy connectivity. Suitable for thin platform and industrial interface applications.
Ideal for electronics, industrial manufacturing, and commercial use.
This Amphenol Communications Solutions USB Connector is designed to meet the demands of modern electronics and industrial environments, facilitating reliable, high-speed connections in constrained PCB layouts. Explore further USB connectors and electronics components in the USB Connector category on EnvMart for expanded industrial and commercial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This USB Type C connector supports data transfer speeds of up to 5 Gb/s, compliant with the USB 3.1 standard.
It supports a current rating of up to 5A and a voltage rating of up to 100V.
The connector features a right angle orientation, which is designed for space-saving mounting on PCBs.
It utilizes a solder termination type for a robust connection on circuit boards.
The connector operates safely within a temperature range of -55°C to 85°C.
The contacts are constructed from copper alloy, enhancing durability and conductivity.
This model has a single port configuration.
Yes, it is compliant with RoHS and lead-free standards, ensuring environmental safety.
It is suitable for use in electronics, industrial manufacturing, and commercial applications requiring USB Type C connectivity.
This connector is designed for surface mount installation on PCBs.
This model is part of the 101xxxxx-0001LF series.
The reversible design of the USB Type C plug allows for quick and easy connections regardless of orientation, enhancing user convenience.
