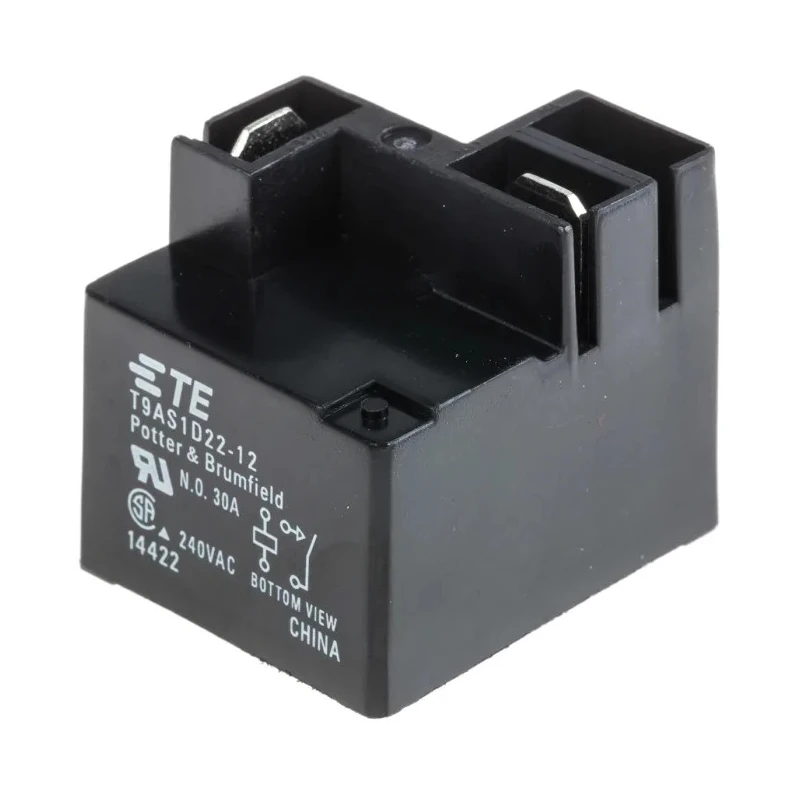

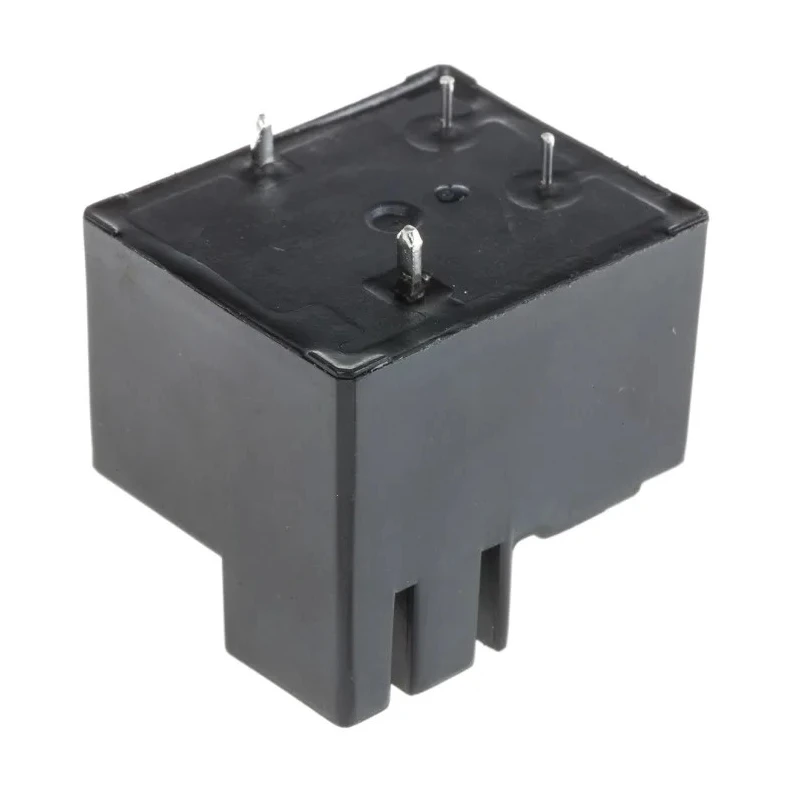

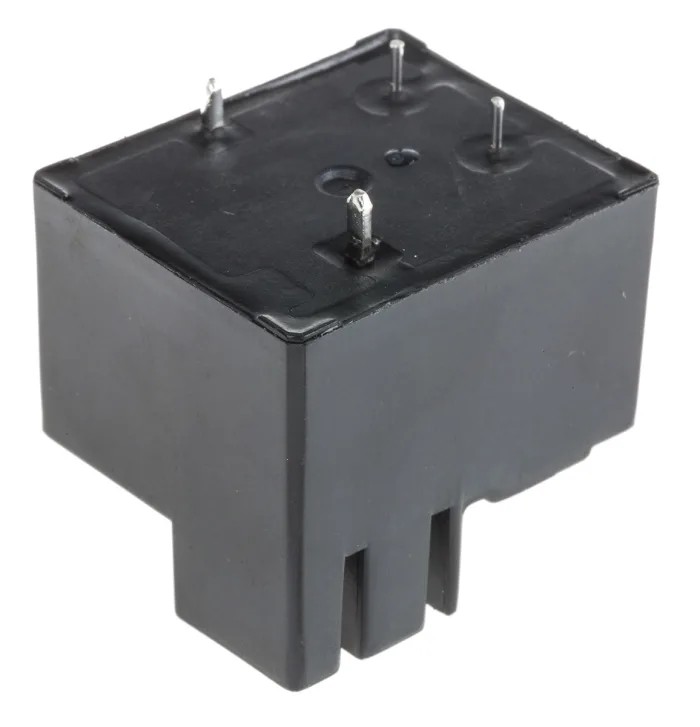

TE Connectivity PCB Power Relay 12V DC Coil 30A Switching Current SPST T9AS1D22-12 1-1419104-7
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Operating Temperature | -55°C to +85°C |
| Dimensions | H27.94mm, W27.43mm, D50.29mm |
| Height | 27.9mm |
| Length | 32.5mm |
| Model | T9AS1D22-12 1-1419104-7 |
| Width | 27.4mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | T9A |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -45°C |
| Switching Current | 30A |
| Terminal type | Quick Connect |
| Standards/Approvals | UR, CSA, UL |
| Coil Resistance | 144Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 277V ac |
| Coil Power | 1W |
| Switching Power | 1W |
Key Features
- This power relay is designed for PCB mounting, ensuring easy integration.
- It supports switching AC voltage up to 277V AC.
- Coil voltage of 12V DC with coil resistance of 144Ω.
- Operating temperature range from -55°C to +85°C.
- Contact material composed of durable silver alloy.
- Compact dimensions suitable for tight PCB layouts.
- UL recognized and CSA certified for industrial compliance.
- T9AS series meets UL873 and UL508 spacing standards.
Product Description
TE Connectivity T9AS1D22-12 1-1419104-7 PCB Power Relay is engineered for reliable switching operations with a 12V DC coil and 30A switching current in an SPST contact configuration. It is particularly suited for industrial and commercial electronic applications where durability and safety are paramount.
This relay mounts directly on PCBs facilitating efficient integration in diverse control systems and automation equipment. It supports switching AC voltages up to 277V AC and delivers a switching power capacity of 1W, aligning with high-demand power control requirements.
Designed with a coil resistance of 144 ohms and coil power of 1W, this model ensures optimal energy consumption. The relay's operating temperature tolerance ranges from -55°C to +85°C, accommodating harsh environmental conditions often encountered in industrial settings.
The contact material is silver alloy, providing excellent conductivity and wear resistance essential in heavy-duty electrical relay functions. Its compact size, with a length of 32.5mm, width of 27.4mm, and height of 27.9mm, allows installation in space-constrained setups without performance compromise.
Safety and compliance are guaranteed with UL recognition, CSA certification, and adherence to standards UR, CSA, and UL873. Furthermore, the T9AS relay type is immersion washable, enhancing its reliability and lifespan under challenging operating conditions.
This power relay is designed for PCB mounting, ensuring easy integration. Supports switching AC voltage up to 277V AC. Coil voltage of 12V DC with coil resistance of 144Ω. Operating temperature range from -55°C to +85°C.
Contact material composed of durable silver alloy. Compact dimensions suitable for tight PCB layouts. UL recognized and CSA certified for industrial compliance. T9AS series meets UL873 and UL508 spacing standards.
This TE Connectivity Power Relay is ideal for industrial automation, control panels, HVAC systems, manufacturing equipment, and other commercial electrical applications requiring robust and reliable switching components.
Browse the extensive selection of relays, components, and electrical parts at EnvMart to find compatible products and accessories for your projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is 12V DC.
This model supports a maximum switching current of 30A.
The dimensions are 32.5mm in length, 27.4mm in width, and 27.9mm in height.
The operating temperature range is from -55°C to +85°C.
It features a Single Pole Single Throw (SPST) contact configuration.
The coil resistance is 144Ω.
It can switch AC voltages up to 277V AC.
The contact material is composed of silver alloy, which provides excellent conductivity.
This relay is UL recognized and CSA certified, meeting various industrial standards.
It is designed for PCB mounting, allowing for easy integration into electronic systems.
The coil power consumption is 1W.
This power relay is suitable for industrial automation, control panels, HVAC systems, and manufacturing equipment.
