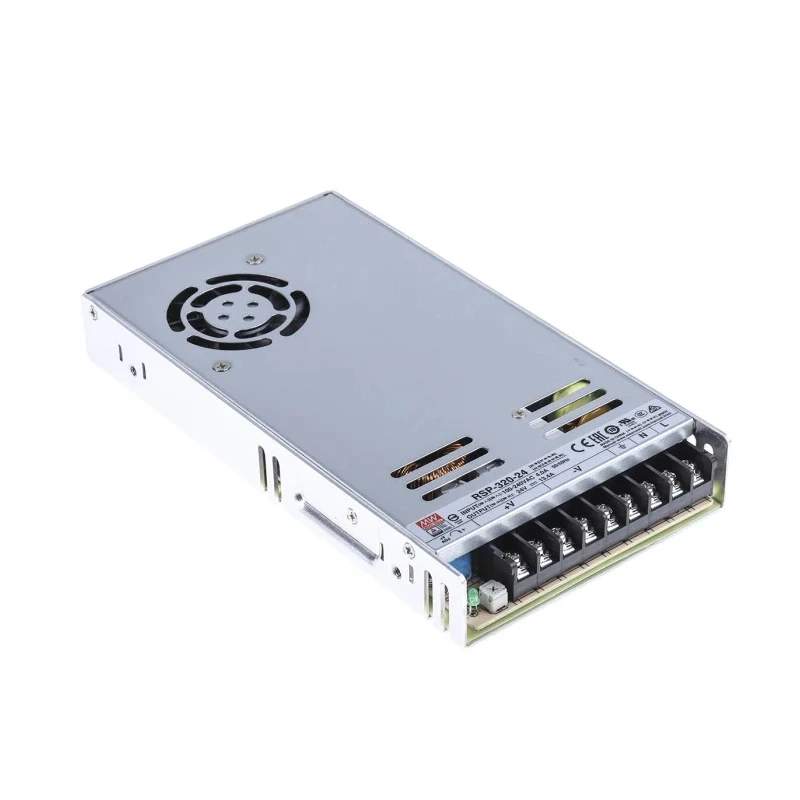

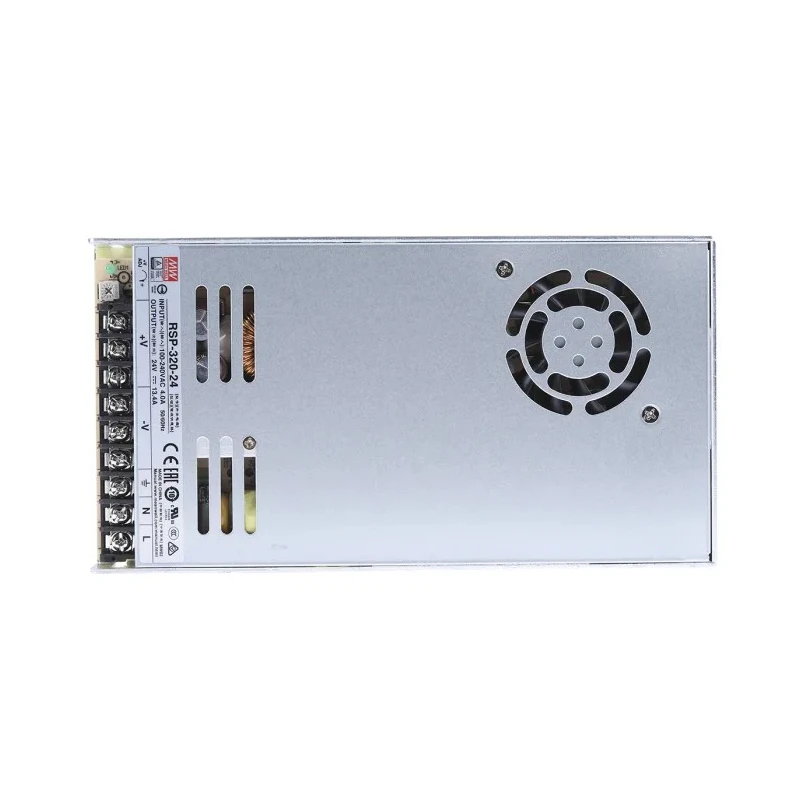

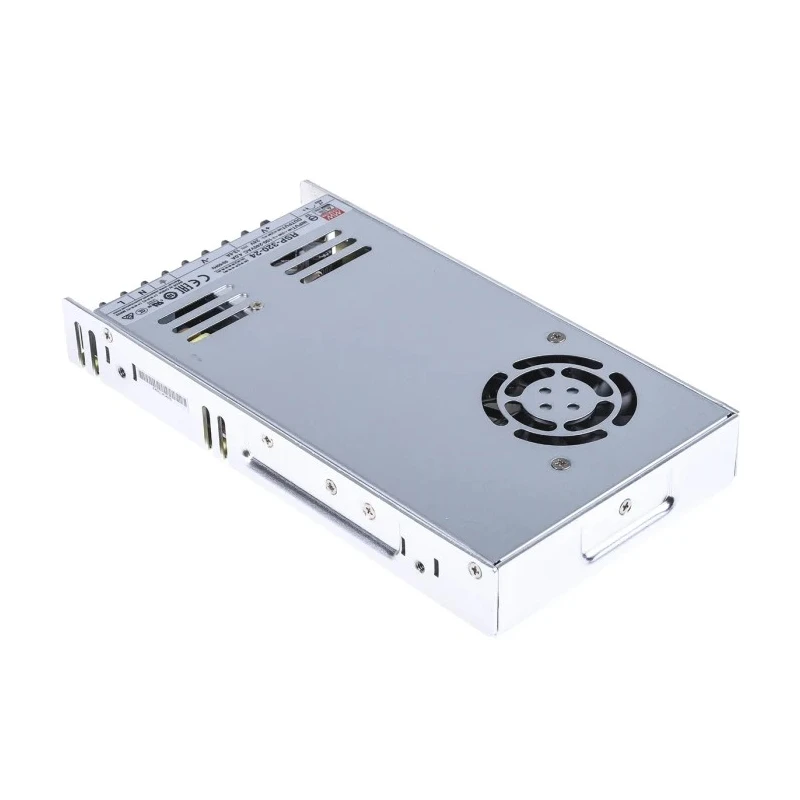

MEAN WELL RSP-320-24 Switching Power Supply 24V DC 321.6W Universal Input 88-264V AC 124-370V DC Chassis Mount RSP-320-24
Specifications
| Country of Origin | China |
|---|---|
| Brand | MEAN WELL |
| Power | 321.6W |
| Efficiency | 89% |
| Length | 215mm |
| Model | RSP-320-24 |
| Depth | 30mm |
| Gross Weight | 900g |
| Width | 30mm |
| Mount Type | Chassis |
| Series | RSP-320 |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -30°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 370, 264V dc |
| Maximum Output Voltage | 24V dc |
| SMPS Output Current | 13.4A |
| Minimum Input Voltage | 88V ac |
Key Features
- Supports a universal input voltage range from 88 to 264VAC and 124 to 370VDC.
- Compact 30mm low-profile design suitable for 1U chassis installations.
- Includes built-in active PFC for improved power factor and high efficiency of up to 89%.
- Forced air cooling provided by an integrated DC fan enhances thermal management.
- Offers protection features including short circuit, overload, overvoltage, and over temperature protection.
- Equipped with an LED indicator for operational status monitoring.
- Operating temperature range from -30°C to 70°C with derating above 50°C.
- Complies with multiple international safety and EMC standards.
Product Description
MEAN WELL RSP-320-24 Switching Power Supply is a high-performance AC to DC embedded switch mode power supply delivering a rated power output of 321.6W at 24V DC. Featuring a universal input voltage range of 88-264VAC and 124-370VDC, this chassis-mount unit is designed for compact installations with a low-profile 30mm height, ideal for 1U form factor chassis.
The power supply ensures efficient operation with an impressive efficiency rating of 89% and active power factor correction (PFC). It incorporates forced air cooling via a built-in DC fan that maintains stable thermal conditions across a wide ambient temperature range from -30°C up to 70°C, with derating considerations above 50°C.
Robust protection mechanisms include short circuit, overload, overvoltage, and over temperature safeguards, ensuring durability and reliability in demanding industrial and electronic environments. The LED indicator simplifies monitoring of supply status at a glance.
This model measures 215mm in length, 30mm in width, and 30mm in depth, making it a compact solution for various industrial control systems, mechanical and electrical industries, instrumentation, and LED display applications where low profile installations are required.
Supports universal input AC/DC voltages and steady 24V output. Effective cooling utilizing built-in DC fan for enhanced lifecycle. Comprehensive protection features for safe and reliable operation. Compact chassis mount form factor facilitating space-saving installations.
Compliance with international safety, EMC standards including UL, TUV, CCC, CSA, and others. Suitable for industrial, mechanical, instrumentation, and LED signage use cases.
MEAN WELL products like the RSP-320-24 represent reliable power solutions trusted across numerous industrial and electrical applications worldwide. Explore more power supply products in the Electronics & Electricals category at EnvMart for optimized performance and compatibility.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The RSP-320-24 provides a rated power output of 321.6W at 24V DC.
This model has an efficiency rating of up to 89%.
It supports a universal input voltage range from 88 to 264VAC and 124 to 370VDC.
The dimensions of this power supply are 215mm in length, 30mm in width, and 30mm in depth.
The operating temperature range is from -30°C to 70°C, with derating above 50°C.
This model features a single output.
It uses forced air cooling provided by an integrated DC fan to enhance thermal management.
It includes protection features for short circuit, overload, overvoltage, and over temperature.
The gross weight of this unit is 900g.
Yes, it complies with multiple international safety and EMC standards including UL, TUV, CCC, and CSA.
The output current for this model is 13.4A at 24V DC.
This power supply is designed for chassis mounting.
