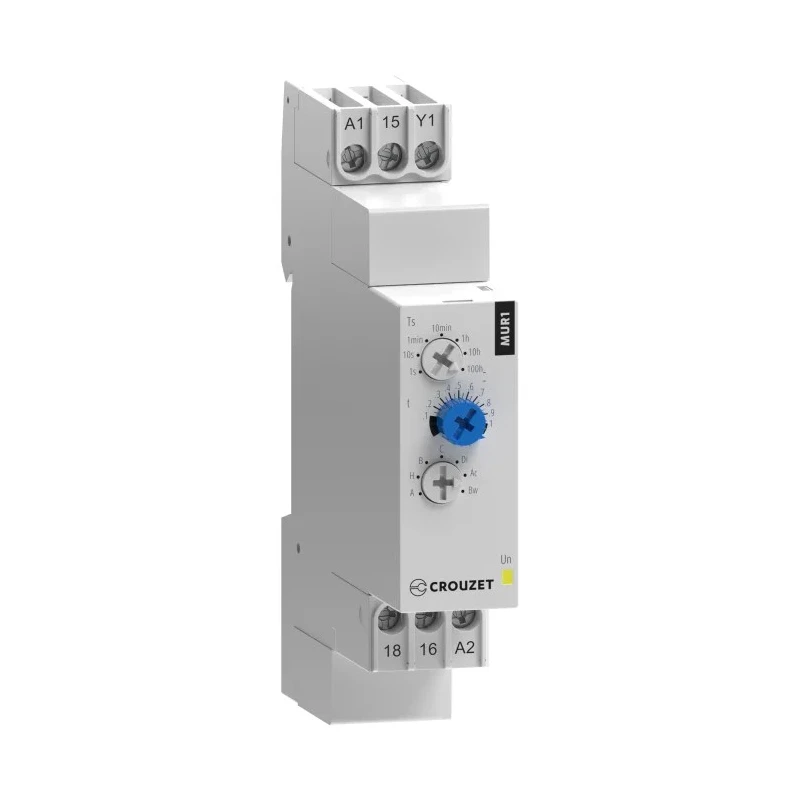

Crouzet DIN Rail Multifunction Timer Relay 1-Contact SPDT Switch 24 V dc 240 V ac 0.1 s to 100 h 88827105

Crouzet 88827105 multifunction timer relay features a DIN rail mounting type suitable for compact electrical panel assemblies. It supports both 24 V DC and 240 V AC supply voltages, operating reliably within a temperature range of -20°C to 60°C. The relay offers an extensive timing range from 0.1 seconds up to 100 hours, providing flexible delay functions including asymmetrical delay, interval timing, off delay, on delay, pulse output, and symmetrical flashing cycles.

This timer relay has a single changeover contact configured as SPDT, rated for 8A switching capacity, making it appropriate for a wide variety of control applications. The device utilizes screw terminal connections ensuring stable, secure electrical contacts. Visual indication of relay status is provided through an LED indicator, facilitating quick diagnostics during operation.

The IP ratings of IP20, IP40, and IP50 protect against dust ingress and limited water splash, enhancing durability in demanding industrial environments. Additionally, this relay is compatible with three-wire PNP sensors and permits external load connection parallel to the control input.

Compliance with RoHS environmental standards and IEC/EN norms including IEC/EN 61812-1 and IEC/EN 61000 series provides assured quality, electromagnetic compatibility, and industrial safety. Certifications include CE, UL, cUL, CSA, and GL approvals.

Designed for applications across sectors such as textile manufacturing, chemical processing, mining operations, irrigation control systems, raw material handling, food and beverage production, and general industrial process control.

Compact DIN rail mount for easy panel integration. Multi-function timing from 0.1 s to 100 h for versatile control. 1 contact with SPDT configuration rated at 8A. Supports both 24 V DC and 240 V AC supply voltages. Wide operating temperature range from -20°C to 60°C.

Screw terminal type ensures secure wiring. LED status indicator for clear operation feedback. IP20, IP40, and IP50 ratings for protection. Complies with multiple RoHS and IEC/EN standards. Certified by CE, UL, cUL, CSA, and GL for safety and reliability.
