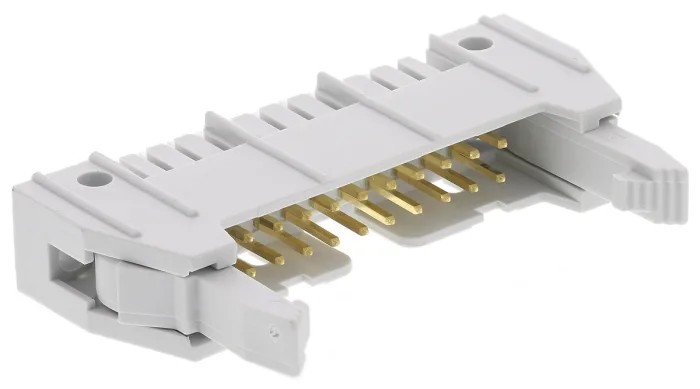

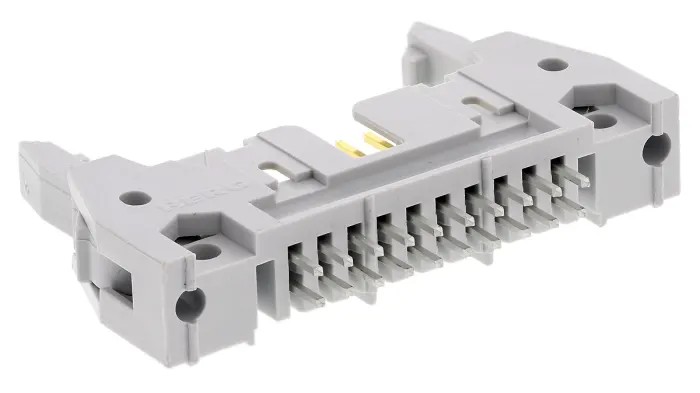

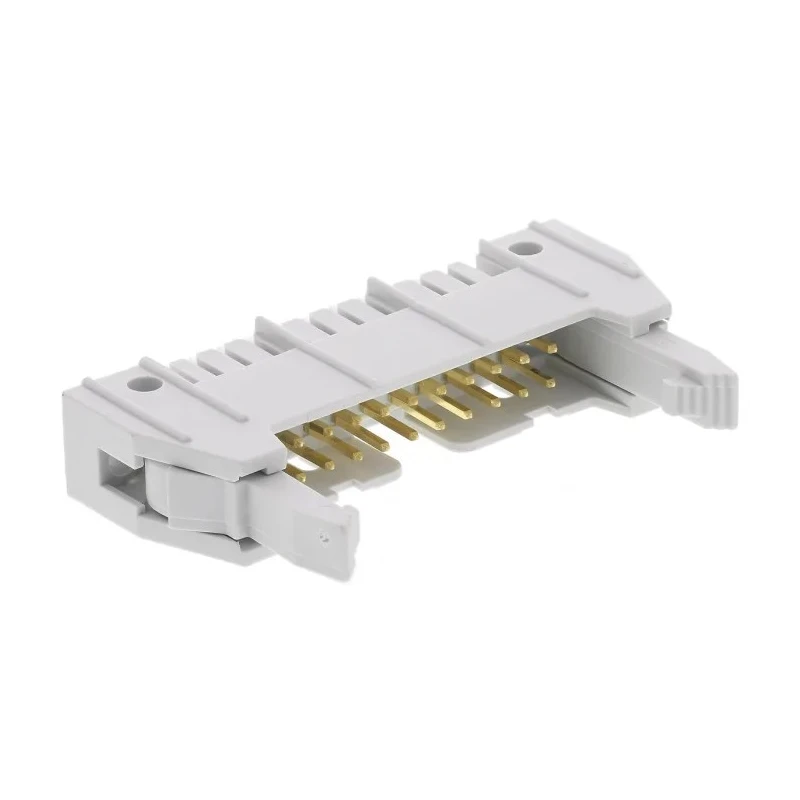

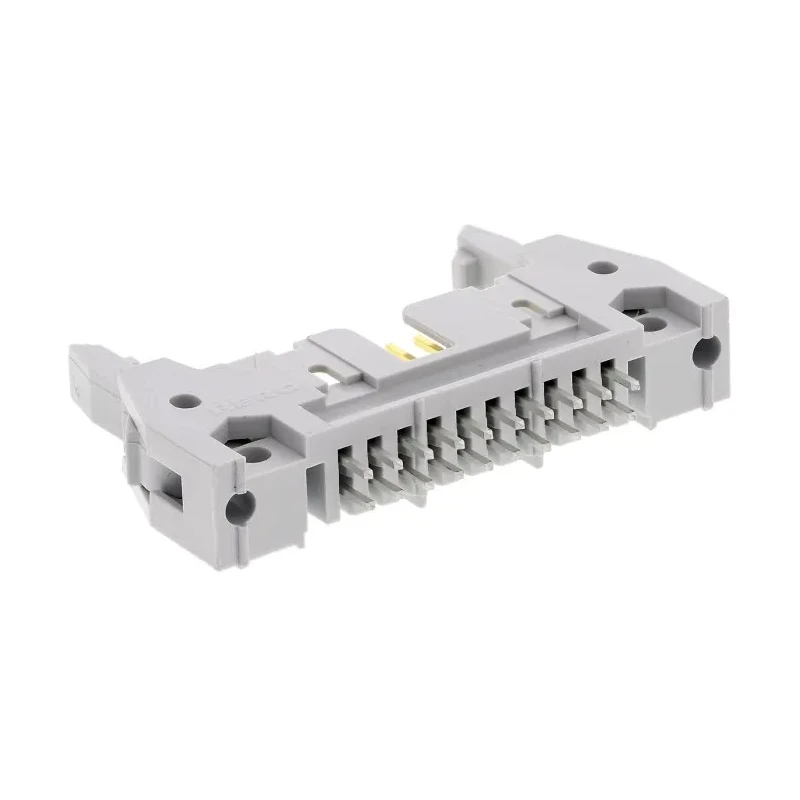

Amphenol Communications Solutions Quickie Series 20 Contact Straight Through Hole PCB Header, 2 Row, 2.54 mm 71918-120LF
Specifications
| Country of Origin | France |
|---|---|
| Voltage | 1.5kV |
| Brand | Amphenol Communications Solutions |
| Orientation | Straight |
| Current | 3A |
| Model | 71918-120LF |
| Mount Type | Through Hole |
| Housing Material | Glass Filled Thermoplastic Polyester |
| Contact Material | Phosphor Bronze |
| Series | Quickie |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 20 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| RS PRO 20-Way IDC Connector Plug Through Hole Mount, 2-RowBrand | RS PRO |
Key Features
- The connector has gold plated phosphor bronze contacts ensuring reliable signal transmission.
- Its housing is made from glass-filled thermoplastic polyester, providing durability and heat resistance.
- Designed with four wall shrouding protecting the contacts and preventing mismating.
- The header includes side latches for secure mating and easy ejection.
- Suitable for industrial, instrumentation, medical, consumer, communications, and data applications.
- Can withstand wave soldering processes thanks to high temperature thermoplastic construction.
- Meets performance standards with duplex plating rated for 100 mating cycles.
Product Description
Amphenol Communications Solutions 71918-120LF Quickie Series Straight Through Hole PCB Header is a high-performance connector providing 20 male contacts in a 2-row configuration with 2.54 mm pitch. Rated for 3A current and up to 1.5kV, this connector is engineered for robust signal integrity and longevity in demanding applications.
The header features a glass-filled thermoplastic polyester housing that withstands wave soldering and offers high temperature resistance up to 105°C. The four wall shrouding design protects unmated pins and the housing incorporates dual polarization slots and keying features to prevent mismating.
Side latches lock securely to mating connectors allowing easy ejection and minimizing PCB space, enabling high-density mounting. Contacts are made of phosphor bronze with gold plating for excellent conductivity and corrosion resistance, with duplex plating guaranteeing at least 100 mating cycles.
This Amphenol Quickie 2.54 mm ejector header connector series mates with Quickie IDC receptacle connectors and is widely used across industrial, instrumentation, medical, consumer electronics, communications, and data systems.
Constructed in France, this PCB header connector is suited for various industrial and commercial electronics applications requiring secure, reliable wire-to-board interconnections.
The connector has gold plated phosphor bronze contacts ensuring reliable signal transmission. Its housing is made from glass-filled thermoplastic polyester, providing durability and heat resistance. Designed with four wall shrouding protecting the contacts and preventing mismating.
The header includes side latches for secure mating and easy ejection. Suitable for industrial, instrumentation, medical, consumer, communications, and data applications. Can withstand wave soldering processes thanks to high temperature thermoplastic construction.
Meets performance standards with duplex plating rated for 100 mating cycles. Explore more PCB Headers and connectors from Amphenol Communications Solutions and related categories at EnvMart for reliable and quality electronic component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector is rated for a current of 3A.
It can handle a maximum voltage of 1.5kV.
The pitch size of the contacts is 2.54 mm.
The housing is made from glass-filled thermoplastic polyester, and the contacts are made of phosphor bronze with gold plating.
This model features 20 male contacts.
The operating temperature range is from -65°C to 105°C.
Yes, it is designed with four wall shrouding and incorporates dual polarization slots and keying features to prevent mismating.
It uses solder termination type.
This connector is constructed in France.
It is suitable for industrial, instrumentation, medical, consumer electronics, communications, and data applications.
The header includes side latches that lock securely to mating connectors, allowing easy ejection and minimizing PCB space.
This connector belongs to the Quickie series.
