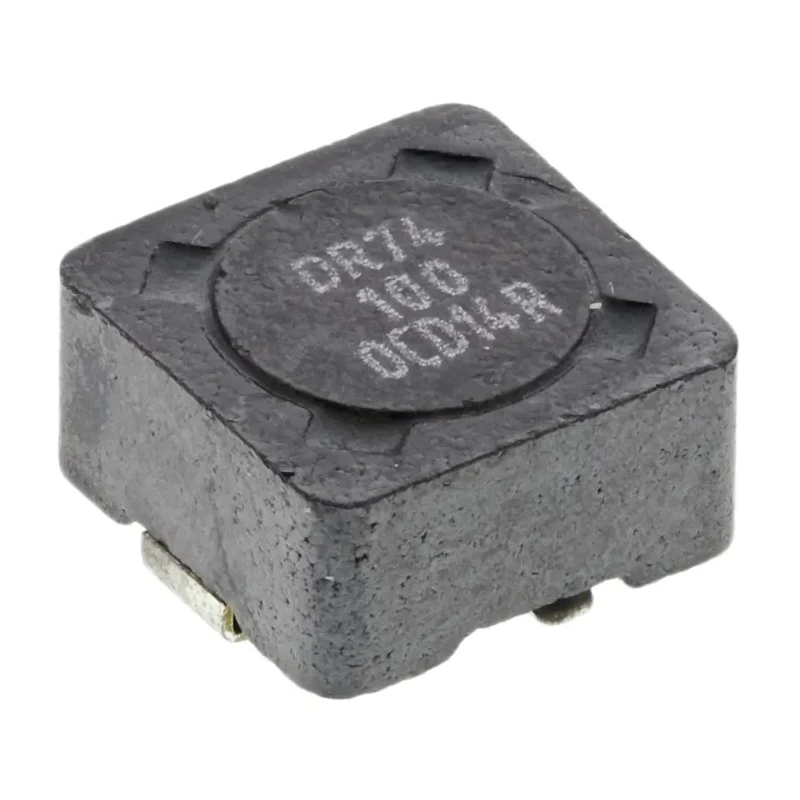

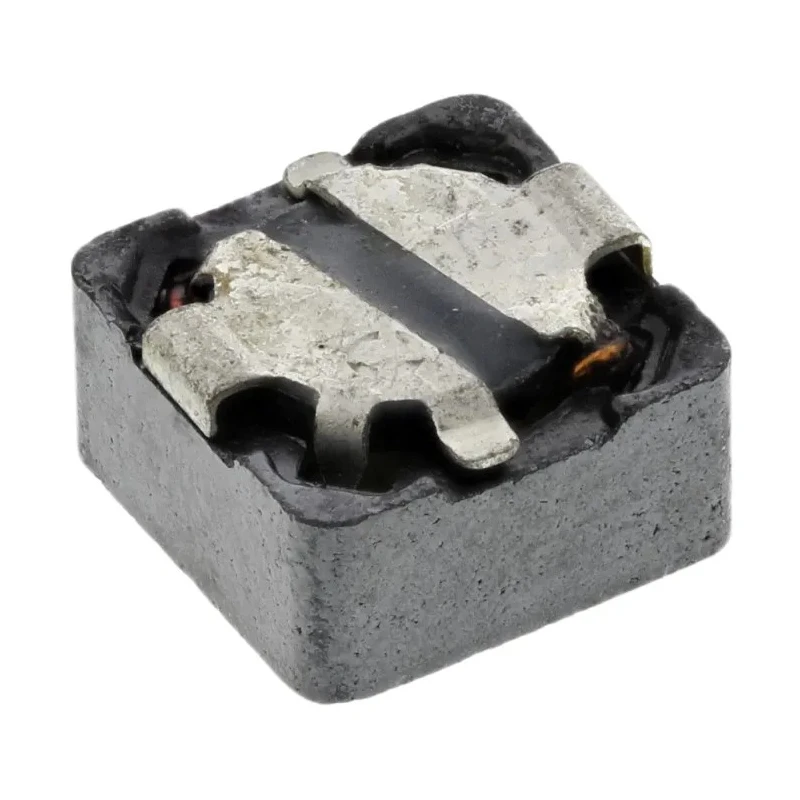

Eaton Shielded Wirewound Surface Mount Inductor with Ferrite Core 10 μH ±20% 3.17 A Idc DR74-100-R
Specifications
| Country of Origin | China |
|---|---|
| Brand | Eaton |
| Height | 4.35mm |
| Length | 7.6mm |
| Model | DR74-100-R |
| Depth | 7.6mm |
| Packaging | Reel |
| Series | DR |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 10μH |
| Standards/Approvals | RoHS |
| Package/Case | 0704 |
| Maximum DC Current | 3.17A |
| Pin Count | 2 |
| Maximum DC Resistance | 48.9mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 100kHz |
| Inductor Construction | Wirewound |
Key Features
- Inductance of 10 microhenries with ±20% tolerance for reliable performance.
- Maximum DC current handling capacity of 3.17 amps for demanding applications.
- Manufactured with ferrite core and wirewound construction ensuring magnetically shielded operation.
- Package size 0704 with length 7.6 mm and height 4.35 mm suitable for compact surface mount design.
- RoHS compliant and designed to operate from -40°C up to maximum 125°C temperature.
- Surface mount termination style for easy PCB mounting and high production efficiency.
- Maximum DC resistance of 48.9 mΩ minimizing power loss in circuits.
- Maximum self-resonant frequency rated at 100 kHz for filtering and noise reduction.
Product Description
Eaton DR74-100-R shielded wirewound surface mount inductor is engineered with a ferrite core and assembled via wirewound construction to deliver high power density and efficiency for electronic circuits.
This inductor features an inductance of 10 μH with a ±20% tolerance, supporting current loads up to 3.17 A DC. Its compact 0704 package measures 7.6 mm in length, 4.35 mm in height, and 7.6 mm in depth, making it ideal for surface mount applications requiring reliable magnetic shielding.
With a maximum operating temperature of 125°C and a minimum of -40°C, the DR74-100-R supports demanding industrial and commercial electronics environments. Its low maximum DC resistance of 48.9 mΩ ensures minimal power loss, and the maximum self-resonant frequency of 100 kHz provides effective noise filtering in DC-DC converters, buck, boost, forward, and resonant converters.
The inductor is RoHS compliant and moulded securely to maintain longevity and mechanical stability. Its surface mount termination simplifies assembly, making it perfect for high-volume manufacturing in applications such as computers, DVD players, LCD panels, portable devices, and other electronic noise filtering uses.
Inductance of 10 microhenries with ±20% tolerance for reliable performance. Maximum DC current rating of 3.17 A for high current applications. Ferrite core wirewound design provides magnetic shielding and efficiency. Compact 0704 package with dimensions suitable for space-constrained PCBs.
Wide operating temperature range from -40°C to 125°C ensures versatility. Low DC resistance minimizes energy losses in power circuits. Self-resonant frequency effective up to 100 kHz for noise filtering. Moulded construction enhances durability and mechanical protection.
Surface mount termination style for efficient PCB assembly. Applications include computers, DC-DC converters, and noise filtering circuits.
This Eaton Surface Mount Inductor offers reliable operation within industrial, commercial, and consumer electronics sectors requiring efficient magnetic components. Browse the Electronics Components category at EnvMart for more magnetically shielded wirewound inductors.
