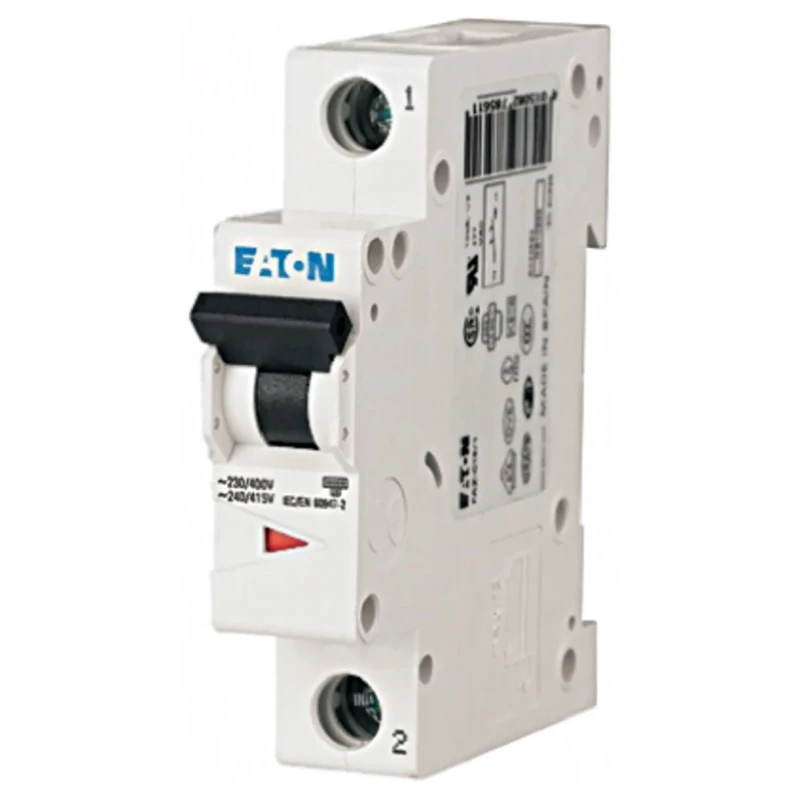

Eaton xEffect Miniature Circuit Breaker 1-Pole 32A Type C 400V AC 6 kA Breaking Capacity 239040 FAZ6-C32/1
Specifications
| Country of Origin | India |
|---|---|
| Range | xEffect |
| Brand | Eaton |
| Model | 239040 FAZ6-C32/1 |
| Depth | 62mm |
| IP Rating | IP20 |
| Width | 17.5mm |
| Mount Type | DIN Rail |
| Current Rating | 32A |
| Series | xEffect |
| Breaking Capacity | 6kA |
| Number of Poles | 1 |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 769-4649Brand: EatonManufacturers Part No.: 239040 FAZ6-C32/1 |
| Rated AC Voltage | 400V ac |
| Tripping Characteristics | Type C |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Toggle Switch |
| Break Time | Instantaneous |
| Type B | Instantaneous trip when the electrical current through the device is 3 to 5 times the rated current. The type B trip curve MCBs are designed for standard circuit protection, typically protection of generators, persons and very long cables |
| Type C | Instantaneous trip when the flow-through current is 5 to 10 times the rated current |
| Type D | Instantaneous trip when the flow-through current is 10 to 14 times the rated current |
| Type K | Instantaneous trip when the flow-through current is 10 to 14 times the rated current |
| Type S | Instantaneous trip when the flow-through current is 13 to 17 times the rated current |
| Type Z | Instantaneous trip when the flow-through current is 2 to 3 times the rated current |
| MCB Module widths | 1P 17.5mm, 2P 35mm and 3P 52.5mm |
Key Features
- Rated for 1 pole with Type C tripping characteristics for moderate inrush currents.
- Operates at a rated AC voltage of 400V AC ensuring compatibility with standard distribution boards.
- Breaking capacity of 6 kA for effective short-circuit interruption ensuring safety.
- Designed for DIN rail mounting with a small modular width of 17.5 mm per pole facilitating compact installations.
- Features an instantaneous break time and toggle switch reset actuator for easy operation.
- Offers IP20 finger protection and trip-free mechanism to prevent handle defeat when ON.
- Suitable for electrical distribution and control circuits in industrial, commercial, and residential environments.
- Complies with IEC 60947-2 and other international standards for circuit breakers.
Product Description
Eaton 239040 FAZ6-C32/1 xEffect Miniature Circuit Breaker is a 1-pole device rated at 32 amps with Type C thermal-magnetic tripping characteristics. It operates at 400V AC and has a breaking capacity of 6 kiloamperes.
Part of Eaton's xEffect FAZ6 series, this miniature circuit breaker features a current limiting design that quickly interrupts short circuits to minimize electrical energy let-through and protect sensitive equipment from overload damage. Its compact size with a module width of 17.5 mm facilitates space-saving installation on DIN rails.
The breaker is equipped with both thermal and electromagnetic trip mechanisms and cannot be defeated by holding the toggle switch handle in the ON position, enhancing operational safety. It also features IP20 finger protection, confirming compliance with industrial safety standards.
The FAZ6 series is suitable for a wide range of applications including industrial automation, electrical distribution boards, motor protection, and control circuits in commercial and residential installations.
Rated 1-pole miniature circuit breaker with 32A current rating. Type C trip curve suitable for circuits with moderate inrush currents. Thermal-magnetic protection with 6 kA breaking capacity ensures fast short-circuit interruption.
Compact DIN rail mounting design with 17.5 mm module width saves panel space. Toggle switch actuator for easy manual reset and clear contact position indication. IP20 finger protection and trip-free mechanism for enhanced safety.
Compliant with IEC 60947-2 and relevant industrial standards.
This Eaton product is ideal for use in industrial, commercial, and residential electrical installations where reliable circuit protection is essential for equipment safety and operational continuity.
Explore more products in the Miniature Circuit Breaker category for comprehensive protection solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This miniature circuit breaker has a current rating of 32A.
It has a breaking capacity of 6 kA, which allows for effective short-circuit interruption.
This model features Type C tripping characteristics, suitable for circuits with moderate inrush currents.
The rated AC voltage for this circuit breaker is 400V AC.
It is designed for DIN rail mounting, which facilitates compact installations.
The dimensions are 62mm in depth and 17.5mm in width.
It offers IP20 finger protection and a trip-free mechanism to prevent handle defeat when ON.
The reset actuator type is a toggle switch, allowing for easy manual reset.
It complies with IEC 60947-2 and other relevant international standards for circuit breakers.
It is suitable for electrical distribution and control circuits in industrial, commercial, and residential environments.
The break time is instantaneous, ensuring quick interruption during a fault condition.
The country of origin for this product is India.
