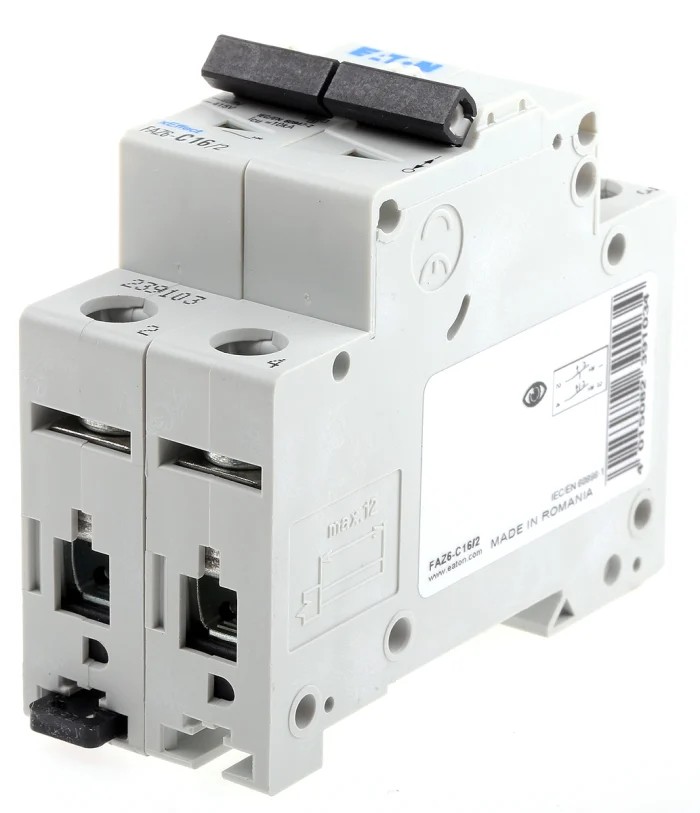

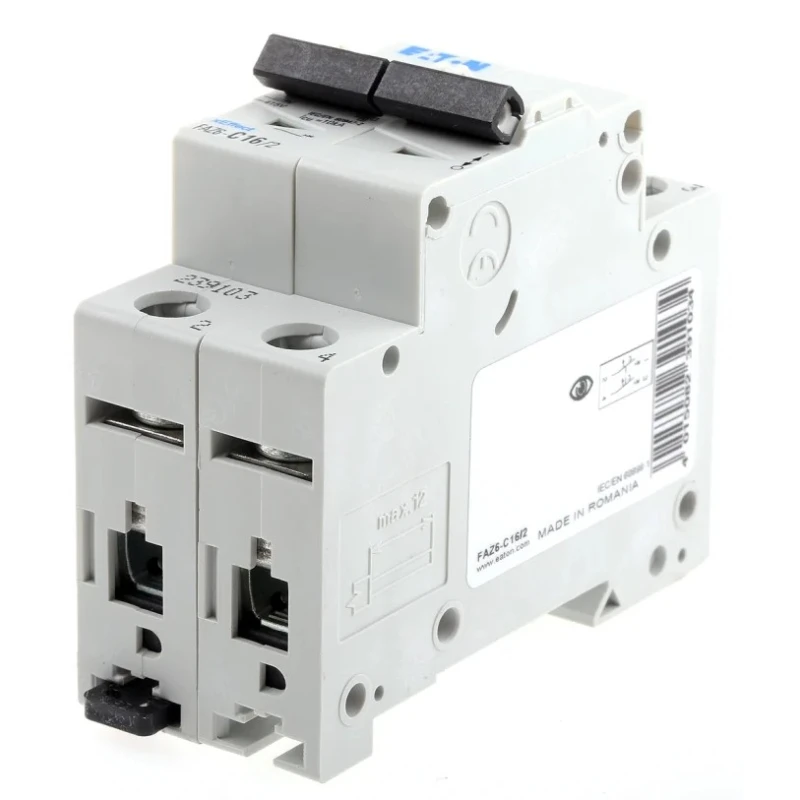

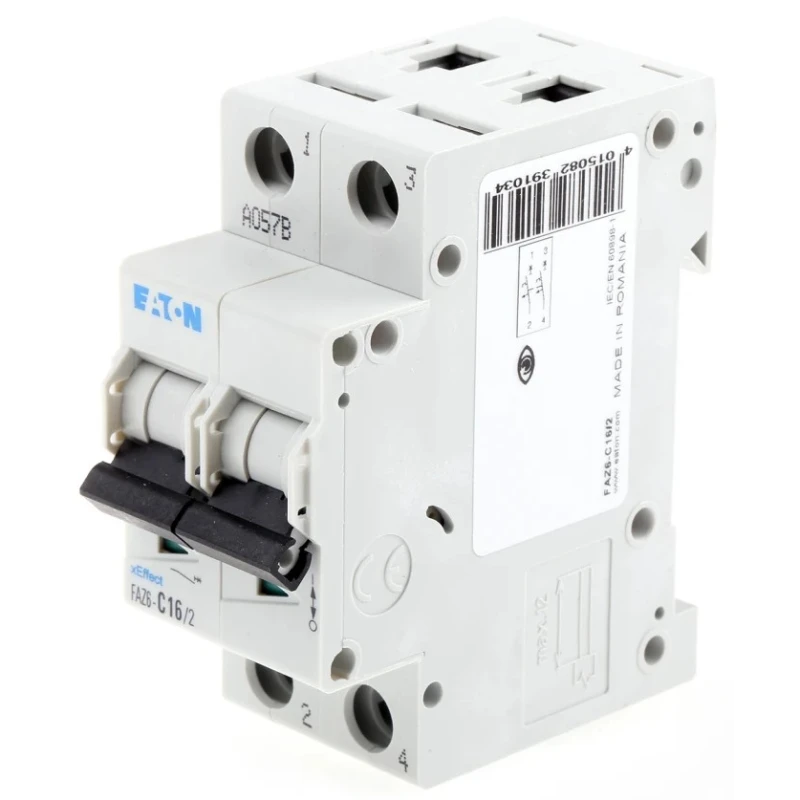

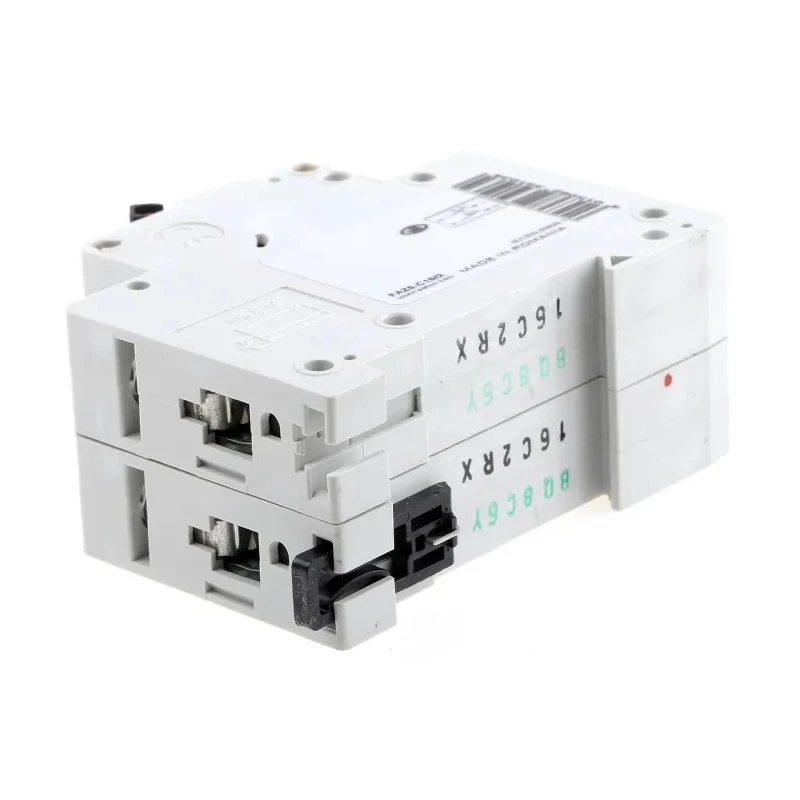

Eaton xEffect Miniature Circuit Breaker, 2-Pole, 16A, Type C Tripping Characteristics, 400V AC, 6 kA 239103 FAZ6-C16/2

Eaton 239103 FAZ6-C16/2 Miniature Circuit Breaker is a compact 2-pole device designed for low voltage circuit protection in various industrial and commercial electrical installations. With a current rating of 16A and type C tripping characteristics, this MCB effectively responds to inductive load overcurrents, making it ideal for motor circuits and automation systems.

The device supports a rated AC voltage of 400V and delivers a high breaking capacity of 6 kA, which ensures safety during short-circuit events. Its reliable thermal magnetic tripping mechanism combines thermal and magnetic elements to protect against overloads and short circuits swiftly.

Constructed for DIN rail mounting, the MCB facilitates easy installation within control panels or distribution boards. The device features a toggle switch actuator for quick manual reset after activation. Eaton's xEffect series meets stringent IEC and EN 60898 standards, assuring consistent performance and compliance.

This miniature circuit breaker has a compact form factor, with dimensions approximately 85mm long, 35.4mm wide, and 62mm depth, occupying minimal space within electrical enclosures. Its IP20 protection rating guards against contact with solid objects larger than 12 mm, making it a practical choice for indoor electrical systems.

Commonly used in industrial automation, motor protection, and electrical distribution panels, this MCB enhances circuit reliability and personnel safety. It operates effectively in ambient temperatures from -25°C to 75°C and supports conductor cross-sections between 1mm² and 25mm², providing versatile installation options.

This Miniature Circuit Breaker is rated for 400V AC operating voltage. It has a breaking capacity of 6 kA, ensuring safe fault interruption. Designed for DIN rail mounting, facilitating easy installation in electrical panels.

Equipped with a thermal magnetic trip mechanism for dependable overcurrent protection. Features a toggle switch for simple manual reset after tripping. Compact dimensions of 85mm length and 35.4mm width save panel space.

IP20 rated for protection against solid foreign objects over 12 mm in size. Complies with IEC and EN 60898 standards for quality and safety assurance. Suitable for industrial automation and electrical distribution applications.

Choose the Eaton 239103 FAZ6-C16/2 MCB for reliable and compact circuit protection suited to a variety of industrial and commercial electrical applications. Explore more circuit protection products in the Electronics & Electricals category at EnvMart.
